BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector

Description

The BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector is built to make golf sims simple, sharp, and safe. A fast, accurate Screen Fill feature dials in common aspect ratios (1:1, 4:3, 16:9, 16:10) to your impact screen, while Golf Mode renders lifelike turf and terrain. A sealed, dust-resistant laser engine delivers bright, high-contrast visuals (up to 3,000,000:1) with 4000 ANSI lumens for confident playback in a variety of lighting conditions. With its 0.499 short-throw lens, you can mount behind the hitter to eliminate shadows and reduce collision risk.

Key Features

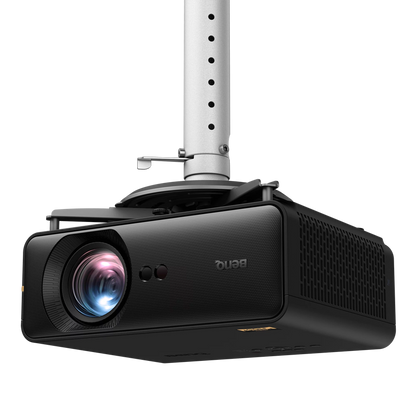

• Safe Short-Throw: 0.499 throw ratio fills large screens from close range—ideal behind-the-golfer placement.
• Automatic Screen Adjustment: Screen Fill auto-fits 1:1, 4:3, 16:9, and 16:10 without tedious manual tuning.
• Golf Mode: Optimized color tuning for realistic fairways, greens, and skies.
• Quick Focus: One-button remote focus for tack-sharp images.
• Wireless-Ready: Optional EZC-5201BS dongle enables cable-free 1080p projection.
• Bright & Vivid: 4000 ANSI lumens, 83% Rec.709, and a dynamic 3,000,000:1 contrast ratio.
• Low Maintenance: IP5X dustproof sealed light engine and up to 20,000–38,000 hours laser life (mode-dependent).

What’s Included

• BenQ AH500ST

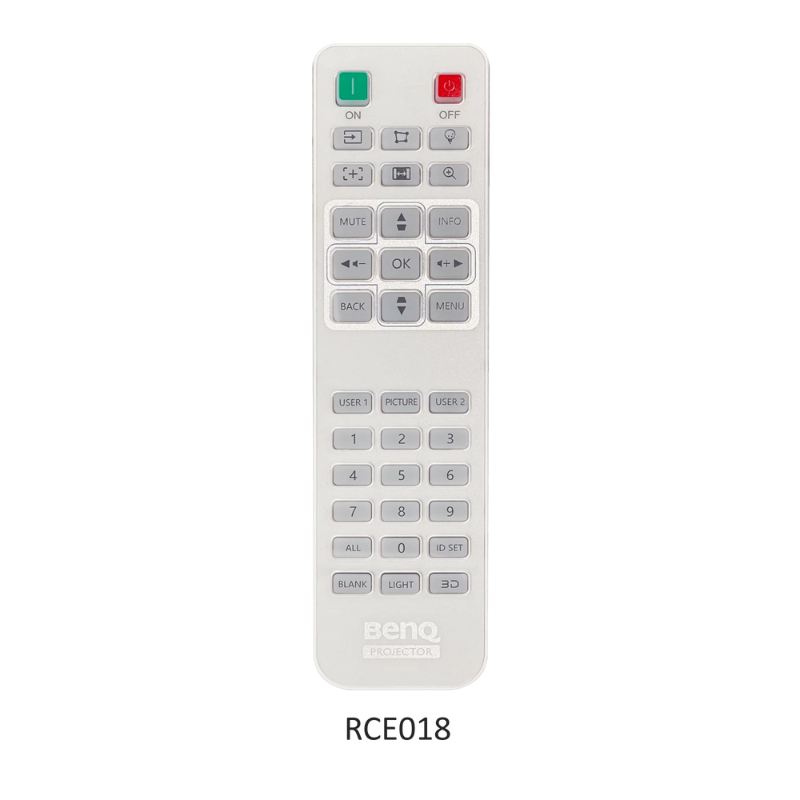

• Remote Control with Batteries
• Power Cord
• Quick Start Guide
• Warranty Card
• Lens Cover

Specifications

Display

• Brightness: 4000 ANSI lumens
• Resolution: 1080p (1920×1080)
• Native Aspect Ratio: 16:9
• Selectable Aspect Ratios: 16:9, 16:10, 4:3, 1:1
• Contrast Ratio (FOFO): 3,000,000:1
• Display Color: 30-bit (1.07B colors)
• Light Source: Laser (Life: Normal 20,000 hrs; ECO 38,000 hrs)

Optical

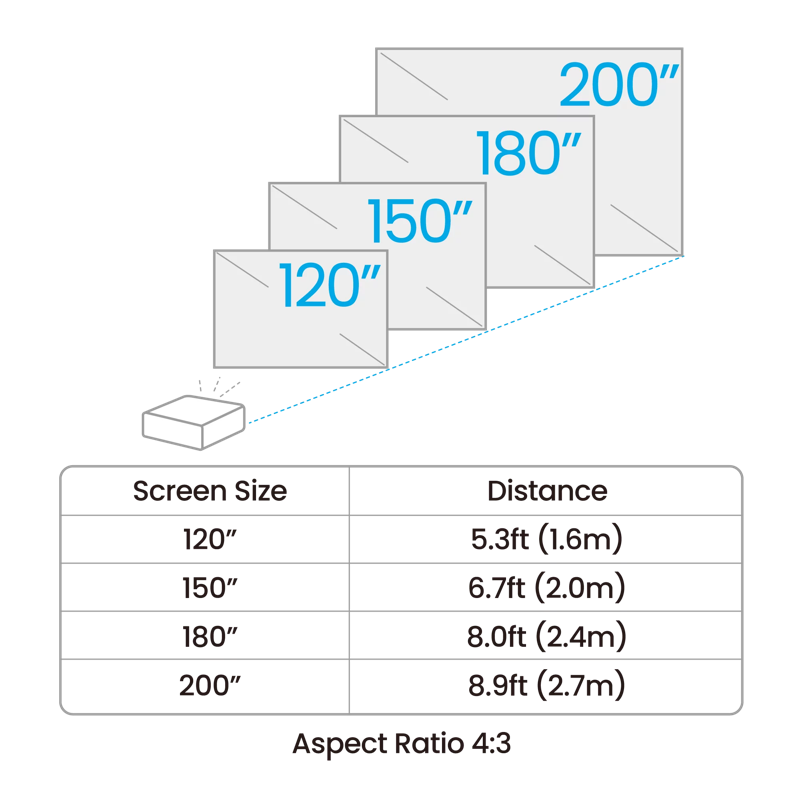

• Throw Ratio: 0.499
• Zoom: Fixed
• Lens: F=2.8, f=7.46 mm
• Projection Offset (Full-Height): 112%
• Keystone: 2D Vertical ±30°, Horizontal ±30°


• Rec.709 Coverage: 83%
• Picture Modes: 3D, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2

Compatibility

• Input Lag: 16.7 ms (1080p@60Hz); 8.3 ms (1080p@120Hz)
• Resolution Support: VGA (640×480) → 4K UHD (3840×2160)
• Horizontal Frequency: 15K–102KHz; Vertical Scan Rate: 23–120Hz

I/O Interface

• HDMI In: 2× (2.0a / HDCP 2.2)
• LAN (RJ45): 1×
• USB-A: 1× (2.0 / Wireless Dongle)
• USB Mini-B (Service): 1×
• RS-232 (DB-9): 1×

Audio

• Speaker: 1× 10 W
• Audio Out (3.5 mm): 1×

Environment

• Operating Temperature: 0–40 ℃
• Power: AC 100–240 V, 50/60 Hz
• Typical Power (110V): 250 W
• Standby / Network Standby: <0.5 W / <2 W
• Acoustic Noise (Typ./Eco): 35/32 dB

Dimensions & Weight

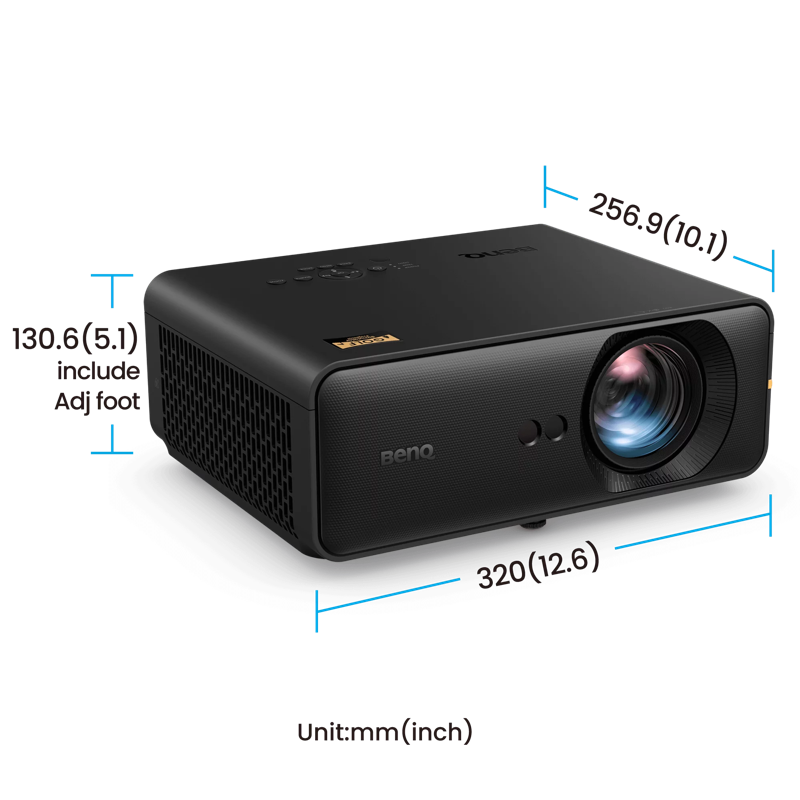

• Size (W×H×D): 320.0 × 130.6 × 255 mm (12.6″ × 5.1″ × 10.0″)
• Net Weight: 5.1 kg (11.2 lb)

Projection System

• Technology: DLP

Resources

• BenQ AH500ST User Manual
