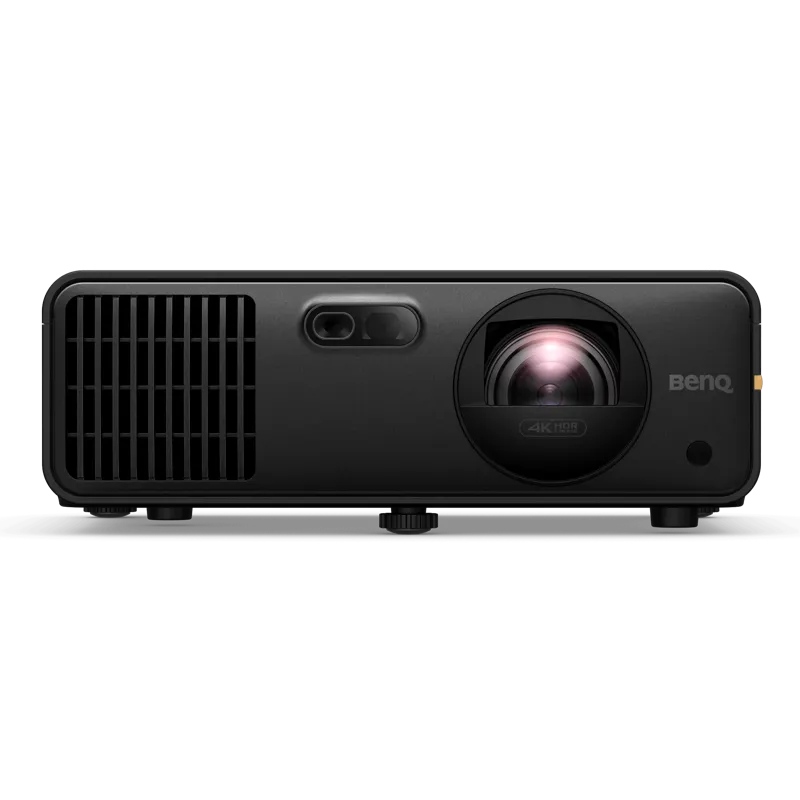

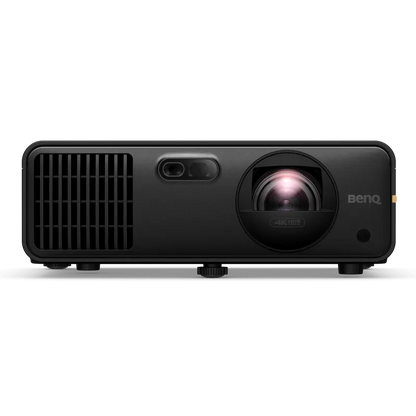

BenQ AK700ST 4000-Lumen 4K Short Throw Laser Golf Simulator Projector

Description

The BenQ AK700ST is a 4000-lumen short-throw 4K laser projector built for golf simulators and home entertainment. With true 4K UHD resolution, Auto Screen Fit, and Golf Mode, it delivers lifelike visuals and precise color accuracy. Its short-throw design allows safe placement behind the player, eliminating shadows and collision risks while maintaining immersion. The projector’s low-maintenance laser engine, wireless compatibility, and quick setup features make it a practical choice for both golf studios and multipurpose rooms.

Features

• Auto Screen Fit for fast image alignment with supported aspect ratios: 16:9, 16:10, 4:3, and 1:1
• True 4K UHD resolution with 8.3 million pixels for exceptional clarity
• 4000 lumens of brightness and a 3,000,000:1 contrast ratio for performance in any lighting
• Short-throw design (0.69–0.83) for shadow-free swings and safe positioning behind the player
• 1.2× optical zoom with motorized lens supporting screen sizes up to 200 inches
• Exclusive Golf Mode for realistic grass, sand, and course environments
• Durable laser light source rated up to 20,000 hours
• Eco-friendly design with 15% lower energy use and chassis made from recycled materials

What’s Included

• BenQ AK700ST 4K Laser Projector

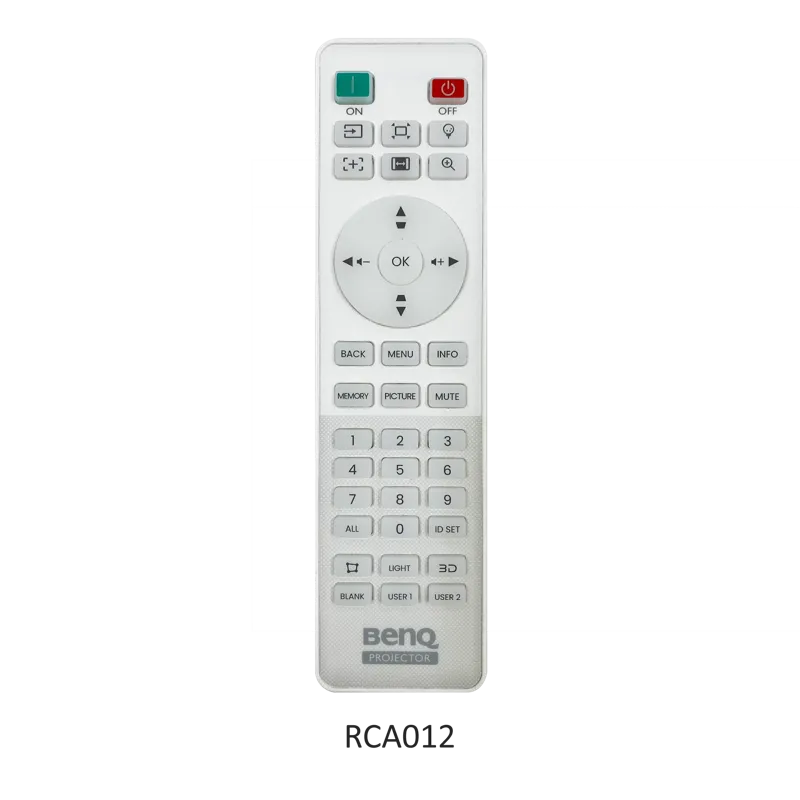

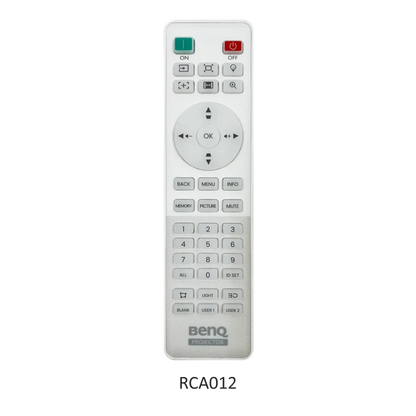

• Remote control with batteries
• Power cord (1.8 m)
• Quick start guide

Specifications

Display

• Brightness: 4000 ANSI lumens
• Resolution: 4K UHD (3840 × 2160)
• Aspect ratio: Native 16:9
• Selectable aspect ratios: 16:9, 16:10, 4:3
• Contrast ratio: 3,000,000:1
• Color depth: 30-bit (1.07 billion colors)
• Light source: Laser
• Light source life: 20,000 hours

Optical

• Throw ratio: 0.69–0.83
• Zoom ratio: 1.2×
• Lens: F/2.53 (wide), f = 10.2 mm (wide)
• Projection offset: 102.5%
• Keystone adjustment: 3D, Vertical ±30°, Horizontal ±30°, Rotation ±30°


• Rec.709 coverage: 95%
• Picture modes: 3D, Bright, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2

Audio

• Built-in speaker: 10W
• HDMI audio return: eARC, 7.1 channel

Connectivity

• HDMI: 2 × HDMI (2.0b/HDCP 2.2)
• USB Type A: 2 (2.0, power supply 1.5A, wireless dongle)
• USB Type C: 1 (DisplayPort with PD out 5V/1A)
• RS232 in: 1 (DB-9 pin)

Environment

• Operating temperature: 0–40°C
• Power supply: AC 100–240 V, 50/60 Hz
• Power consumption (typical, 110V): 192W
• Standby power: <0.5W
• Noise: 32 dB (typical), 29 dB (Eco)

Physical

• Dimensions: 303.5 × 112.4 × 234.5 mm
• Net weight: 3.4 kg (7.48 lb)

Projection System

• DLP

Resources

• BenQ AK700ST User Manual
