SIG DIY Golf Simulator Enclosure Kit

Description

The SIG DIY Golf Simulator Enclosure Kit is ideal for builders who want to source their own 1" EMT conduit locally and cut it to size. Pick your enclosure size and preferred aspect ratio (1:1, 4:3, 16:9, or 16:10), then choose either the SIGPRO Premium (White) or SIGPRO Premier (Gray) impact screen to complete your custom build.

Note: Pipe framing is not included. You will purchase the 1" EMT conduit separately. Cut lists are provided in the manual for your selected size.

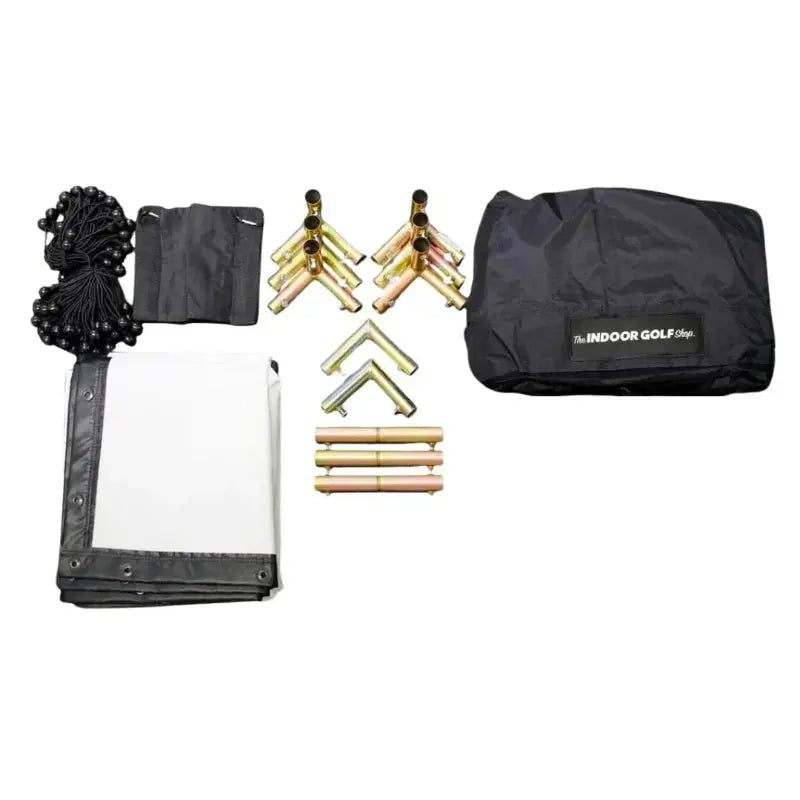

What's Included

• Choice of SIGPRO Premium (White) or SIGPRO Premier (Gray) Impact Screen
• Protective Foam Padding
• Premium Enclosure Surround Material
• 6' Ball Bungees
• Pipe Connectors with Set Screws

Features

Premium or Premier Impact Screen
Select the white Premium for maximum brightness or the gray Premier for enhanced contrast in brighter rooms. Both screens include double-stitched black vinyl edges and grommets for easy mounting with the included ball bungees, and deliver reduced sound and bounce-back with excellent durability.

Clean, Finished Look
The included vinyl surround frames the screen for a professional appearance while helping to protect the area around your enclosure.

DIY-Friendly Hardware
Included corner/tee connectors and set screws allow quick assembly of your EMT frame once your conduit is cut to length.

Ceiling Clearance
For easiest assembly, allow approximately 6"–7" of buffer space above the overall enclosure height.

Specifications

Framing (by customer): 1" EMT conduit (sourced locally; cut lists in manuals)

Aspect Ratios Offered: 1:1, 4:3, 16:9, 16:10

DIY Enclosure Manuals (Cut Lists Included)

1:1 Aspect Ratio:

• 8'4"W x 8'4"H x 5' D (1:1)
• 10'4"W x 10'4"H x 5' D (1:1)

4:3 Aspect Ratio:

• 10'4"W x 7'11"H x 5' D (4:3)
• 10'10"W x 8'4"H x 5' D (4:3)
• 12'2"W x 9'4"H x 5' D (4:3)
• 12'10"W x 9'10"H x 5' D (4:3)
• 13'7"W x 10'4"H x 5' D (4:3)

16:9 Aspect Ratio:

• 13'7"W x 7'11"H x 5' D (16:9)
• 14'2"W x 8'4"H x 5' D (16:9)

16:10 Aspect Ratio:

• 15'4"W x 9'10"H x 5' D (16:10)

Assembly

Quick Start: Cut your 1" EMT per the manual’s cut list, dry-fit the frame with the included connectors, then attach the surround, foam padding, and impact screen using the provided bungees.
