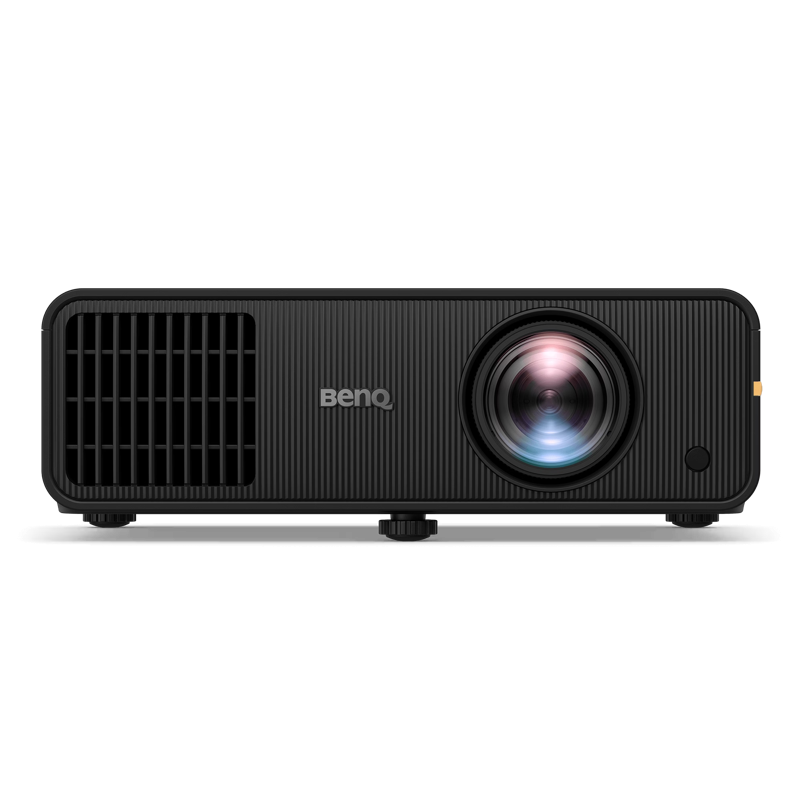

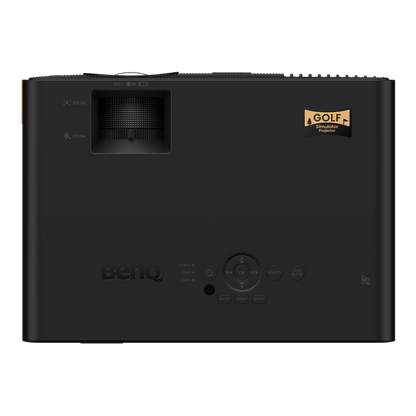

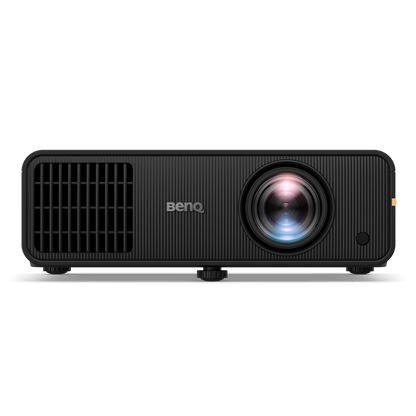

BenQ AH30ST 3000-Lumen Short Throw 1080P LED Golf Simulator Projector

Description

The BenQ AH30ST 3000-Lumen Short Throw 1080P LED Golf Simulator Projector delivers bright, true-to-life visuals in compact spaces. Its short-throw lens prevents shadows and reduces risk of impact by allowing installation behind the golfer. With Golf Mode color optimization, Screen Fill technology, and up to 30,000 hours LED lifespan, it’s the perfect fit for home and commercial simulator setups.

Features

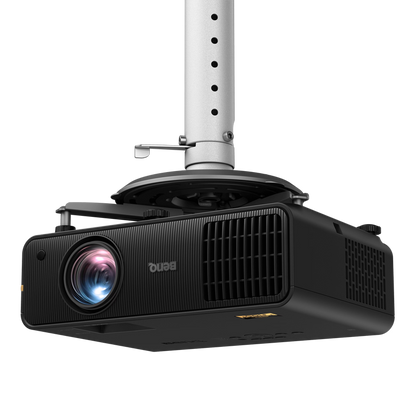

Short-Throw Safety
Projects from close range, eliminating shadows and preventing ball strikes to the unit.

Exclusive Golf Mode
Optimized color profile delivers lifelike course visuals for a more immersive simulation.

Screen Fill Technology
Automatically fits images to 1:1, 4:3, 16:9, or 16:10 aspect ratios.

Wireless Ready
Supports 1080p wireless projection via optional EZC-5201BS dongle.

Low Offset Precision
102.5% offset ensures perfect image alignment with minimal keystone correction.

Dustproof & Filter-Free
Maintenance-free design ideal for garages and enclosed simulator rooms.

Long-Lasting LED Light Source
Up to 30,000 hours in Eco Mode reduces replacement costs.

Eco-Friendly Efficiency
Consumes less power and built with sustainable materials, certified by TUV and UL.

What’s Included

• BenQ AH30ST Projector

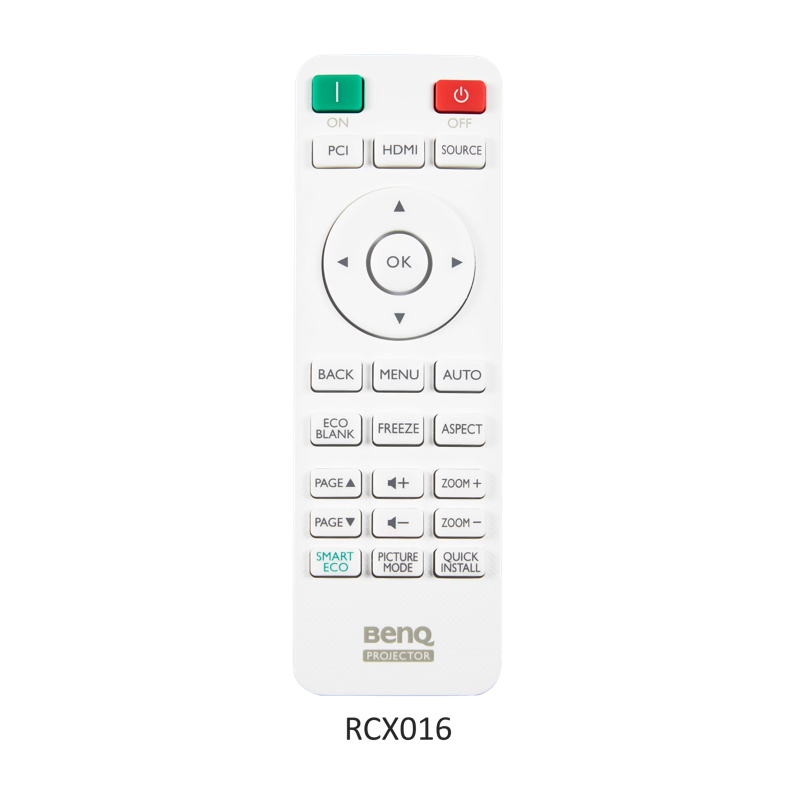

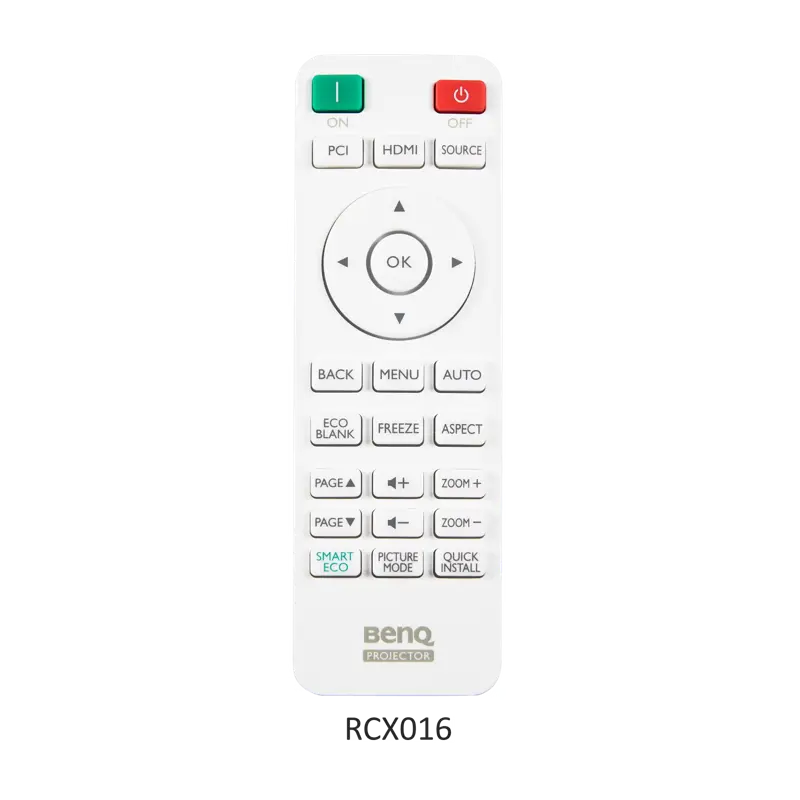

• Remote Control with Battery (RCX016)
• Power Cord (1.8m)
• Quick Start Guide
• Warranty Card
• Lens Cover

Specifications

Display

• Brightness: 3000 ANSI lumens
• Resolution: Full HD 1080p (1920 × 1080)
• Native Aspect Ratio: 16:9
• Selectable Ratios: 1:1, 4:3, 16:9, 16:10
• Contrast Ratio: 20,000:1
• Color Depth: 30-bit (1.07 billion colors)
• Light Source: 4LED
• Light Source Life: 20,000 hrs (Normal), 30,000 hrs (Eco)

Optical

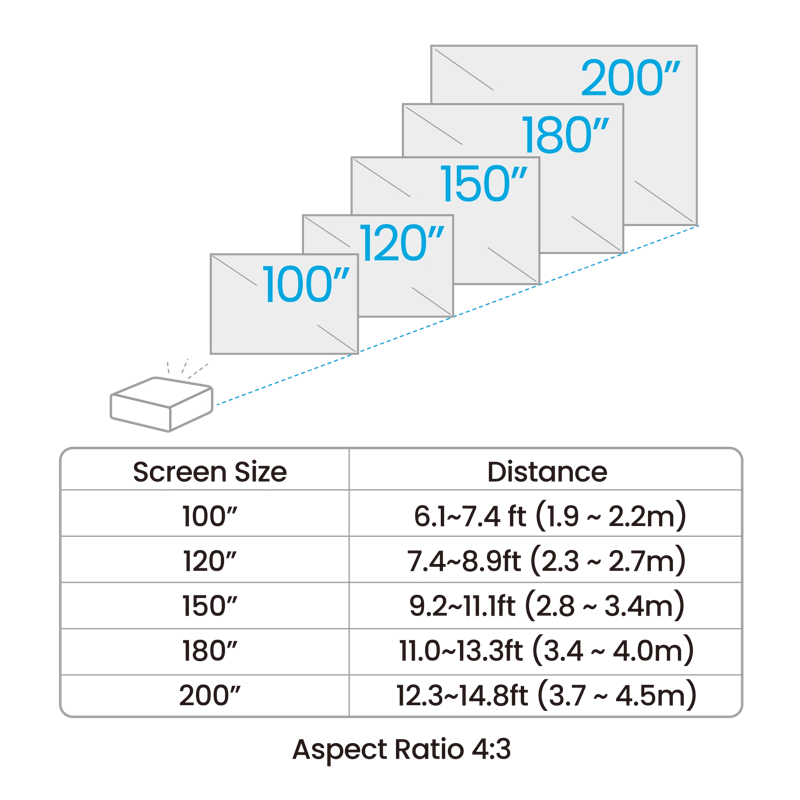

• Throw Ratio: 0.69–0.83
• Zoom: 1.2×
• Lens: F 2.6–2.78, f 10.2–12.24 mm
• Projection Offset: 102.5%
• Keystone: 2D, Vertical ±30°, Horizontal ±30°


• Rec.709 Coverage: 95%
• Picture Modes: Golf, Bright, Cinema, Game, 3D, sRGB, User 1, User 2

Audio

• Speaker: 10W
• Audio Out: 3.5 mm

Connectivity

• HDMI: 2 (HDMI 1.4a/HDCP 1.4)
• USB Type-A: 2 (Power supply + dongle support)
• RS232 (DB-9): 1

Environment

• Operating Temp: 0–40 °C
• Power Supply: AC 100–240 V, 50/60 Hz
• Power Consumption: 237 W (typical at 110 V)
• Standby Power: <0.5 W
• Noise: 32 dBA (Normal) / 28 dBA (Eco)

Physical

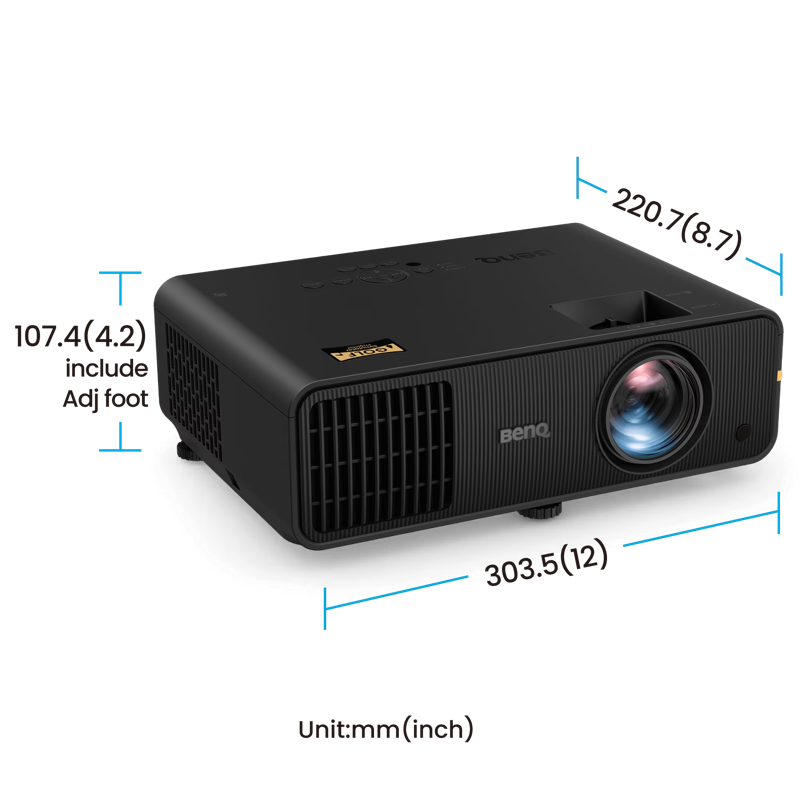

• Size: 11.95 × 4.23 × 8.69 in (303.5 × 107.4 × 220.7 mm)
• Weight: 5.84 lbs (2.65 kg)

Projection System

• Technology: DLP

FAQ

Can this projector be placed behind the golfer?
Yes, the short-throw lens allows safe placement behind the golfer to eliminate shadows and risks.

What is the lifespan of the LED light source?
Up to 30,000 hours in Eco Mode.

Does it support wireless projection?
Yes, with the EZC-5201BS dongle for full HD 1080p wireless output.

Is it garage-friendly?
Yes, the dustproof, filter-free design makes it suitable for garages and other dusty spaces.

What is the benefit of the 102.5% offset?
It minimizes keystone correction by aligning the image naturally with the screen.
