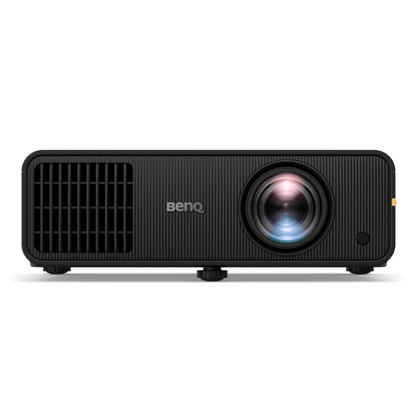

BenQ AW30ST 3200-Lumen Short Throw WXGA LED Golf Simulator Projector

Description

The BenQ AW30ST 3200-Lumen Short Throw WXGA LED Golf Simulator Projector is purpose-built for indoor golf. A short-throw lens and 100% offset let you mount it safely behind the golfer to avoid shadows and collisions—even in low-ceiling garages. BenQ’s Golf Mode renders lifelike fairways and greens, while the durable 4LED light source delivers up to 30,000 hours in Eco Mode for low-maintenance ownership.

Setup is a breeze: use BenQ’s Golf-Sim 3D Planner and built-in Screen Fill to auto-fit 1:1, 4:3, 16:9, or 16:10 screens without distortion. Add the optional EZC-5201BS Wi-Fi dongle for tidy, 1080p wireless installs. With 95% Rec.709 accuracy, Cinema Mode, and low input lag, the AW30ST also doubles as a capable projector for movies, sports, and casual gaming.

What’s Included

• BenQ AW30ST 3200-Lumen Short Throw WXGA LED Golf Simulator Projector

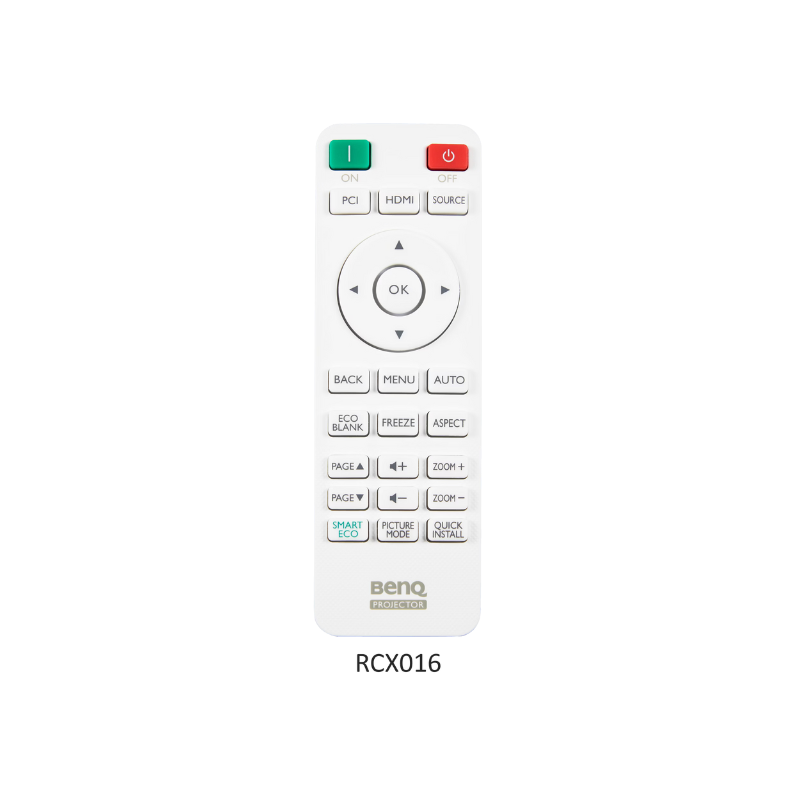

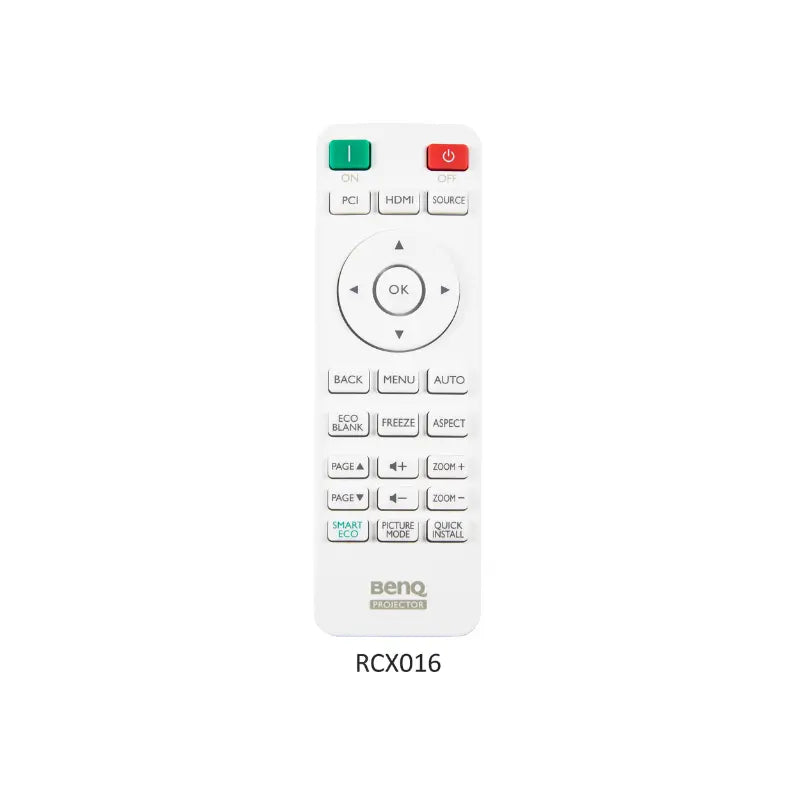

• Remote Control with Battery (RCX016)
• Power Cord (1.8 m)
• Lens Cover
• Quick Start Guide
• Warranty Card
• QR code service sticker

Features

Short-Throw Lens for Golf Simulation

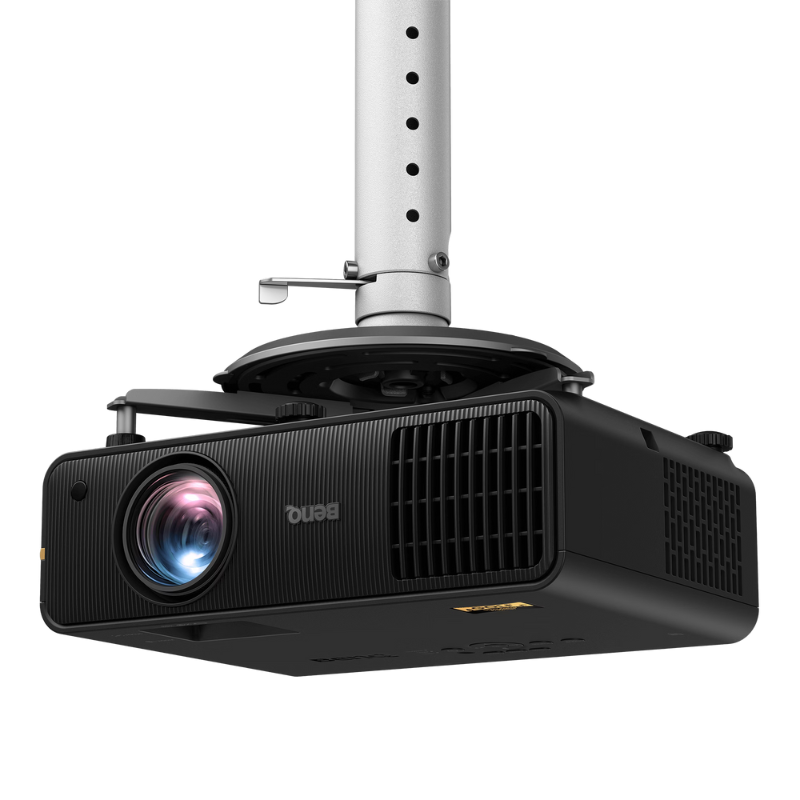

Place the projector behind the golfer for a clear hitting zone, eliminating shadows and lowering collision risk.

More Swing Space, Less Risk
Short throw ratio and 100% offset deliver accurate projection without heavy keystone—ideal for compact, low-ceiling rooms.

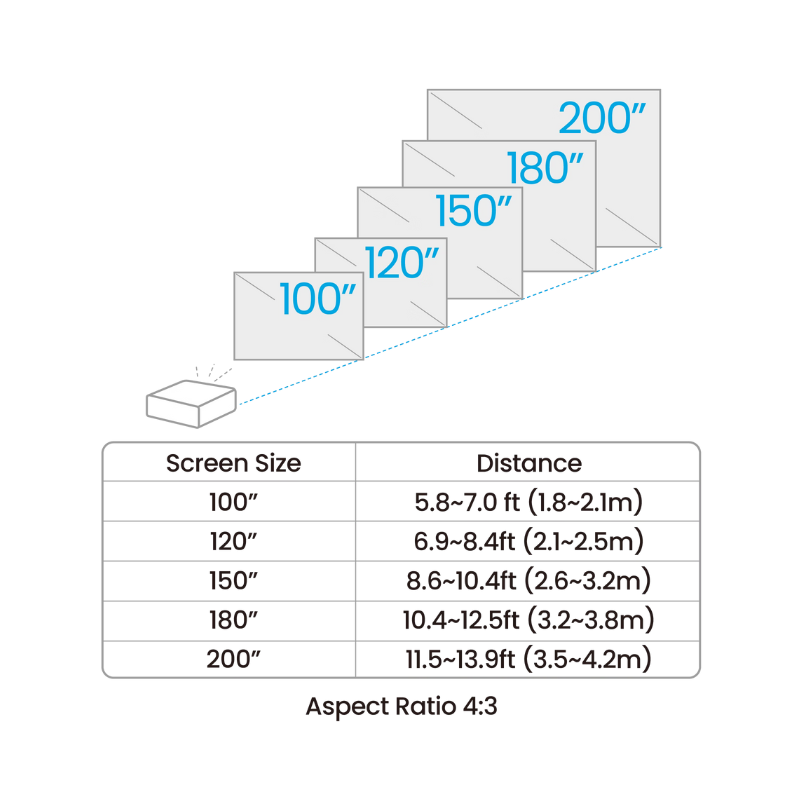

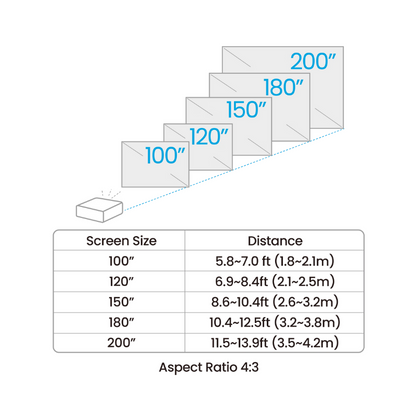

Up to 170-Inch Image
Enjoy immersive visuals from 100–170 inches with sharp detail across sizes.

Simplified, Precision Installation
Golf-Sim 3D Planner speeds first-time setup; Screen Fill auto-fits 1:1, 4:3, 16:9, or 16:10 without distortion.

Wireless Projection Ready
Optional EZC-5201BS dongle enables 1080p wireless projection to reduce cable clutter.

True-to-Life Golf Colors
Exclusive Golf Mode reproduces natural course tones for immersive realism.

Multi-Purpose Entertainment
95% Rec.709, Cinema Mode, and low input lag make it great for movies, sports, and casual gaming.

Durable LED Technology
4LED light source lasts up to 30,000 hours (Eco) to minimize maintenance.

Dustproof & Filter-Free
Built for garages and home setups—no filter cleaning required.

Eco-Friendly Build
Consumes about 15% less power than lamp projectors; chassis includes recycled materials; TÜV/UL certified.

Specifications

Display

• Brightness (ANSI lumens): 3200
• Resolution: WXGA (1280 × 800)
• Native Aspect Ratio: 16:10
• Selectable Aspect Ratios: 1:1, 4:3, 16:9, 16:10
• Contrast Ratio (FOFO): 20,000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: 4LED
• Light Source Life: 20,000 hrs (Normal), 30,000 hrs (Eco)

Optical

• Throw Ratio: 0.72–0.87
• Zoom Ratio: 1.2×
• Lens: F 2.6–2.78, f 10.2–12.24 mm
• Projection Offset (Full-Height): 100%
• Keystone Adjustment: 2D (Auto Vertical ±30°, Horizontal ±30°)


• Rec.709 Coverage: 95%
• Picture Modes: 3D, Bright, Cinema, Game, Golf, sRGB, User 1, User 2

Compatibility

• Input Lag: 33.4 ms (1080p 60 Hz)
• Resolution Support: VGA (640 × 480) → WUXGA_RB (1920 × 1200, Reduced Blanking)
• Horizontal Frequency: 15K–135KHz
• Vertical Scan Rate: 23–120Hz

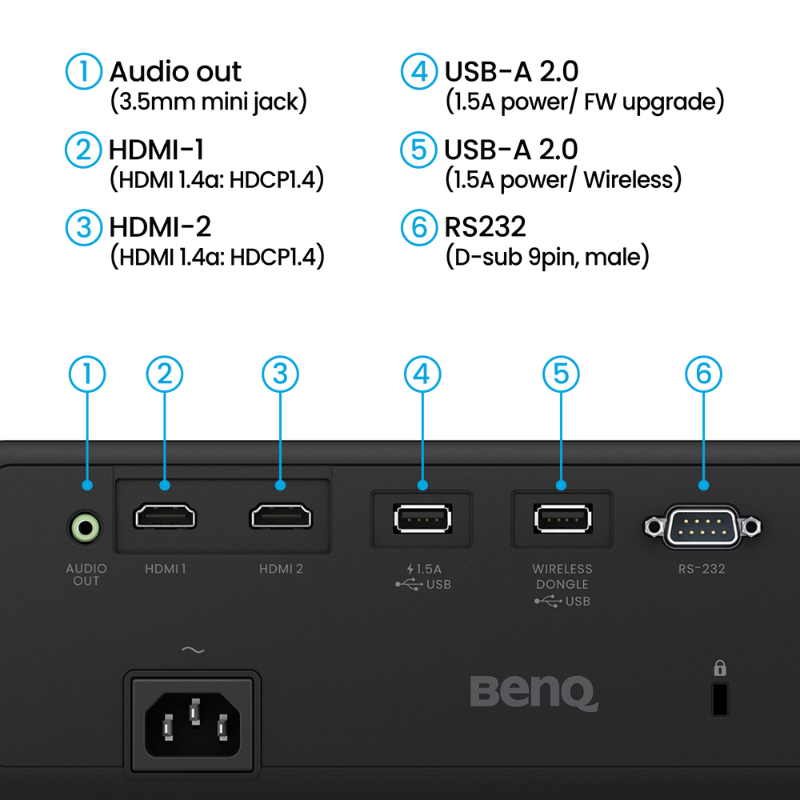

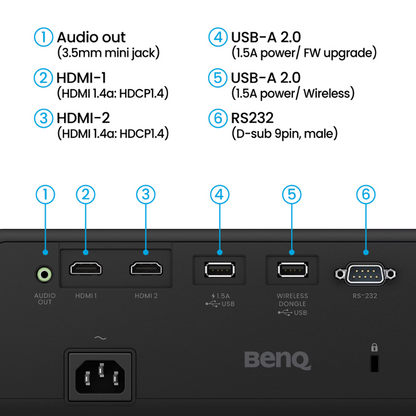

I/O Interface

• HDMI in: HDMI-1 (1.4a/HDCP 1.4), HDMI-2 (1.4a/HDCP 1.4)
• USB Type-A: 2 (USB-A1: 2.0/Power 1.5A; USB-A3: 2.0/Wireless Dongle)
• RS-232 in: 1 (DB-9)

Audio

• Speaker: 10 W
• Audio Out: 3.5 mm

Environment

• Operating Temperature: 0–40 ℃
• Power Supply: AC 100–240 V, 50/60 Hz
• Typical Power (110 V): 237 W
• Standby Power: < 0.5 W
• Acoustic Noise (Typ./Eco.): 32 dBA / 28 dBA

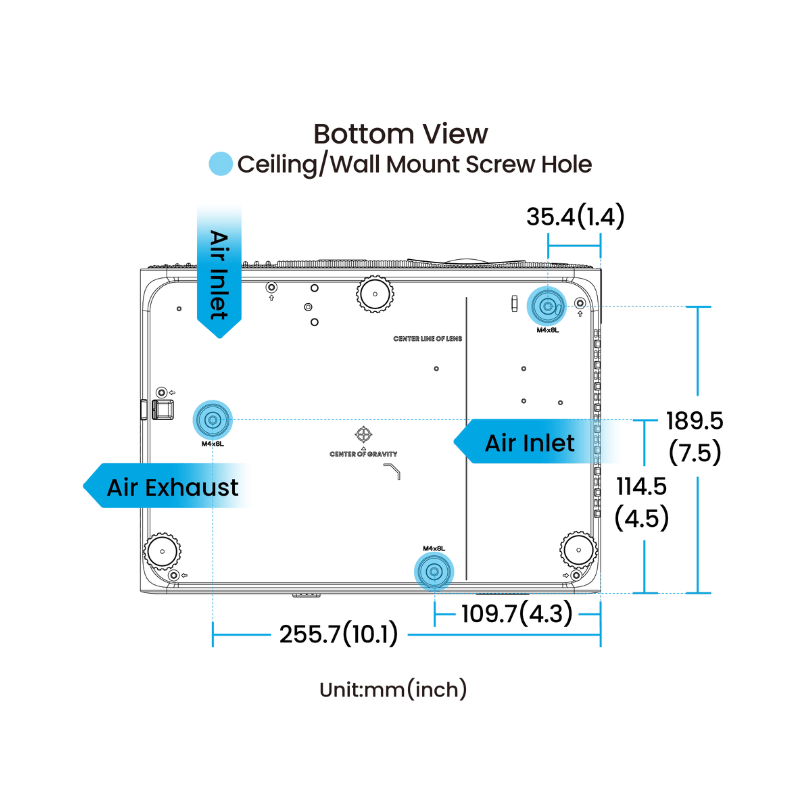

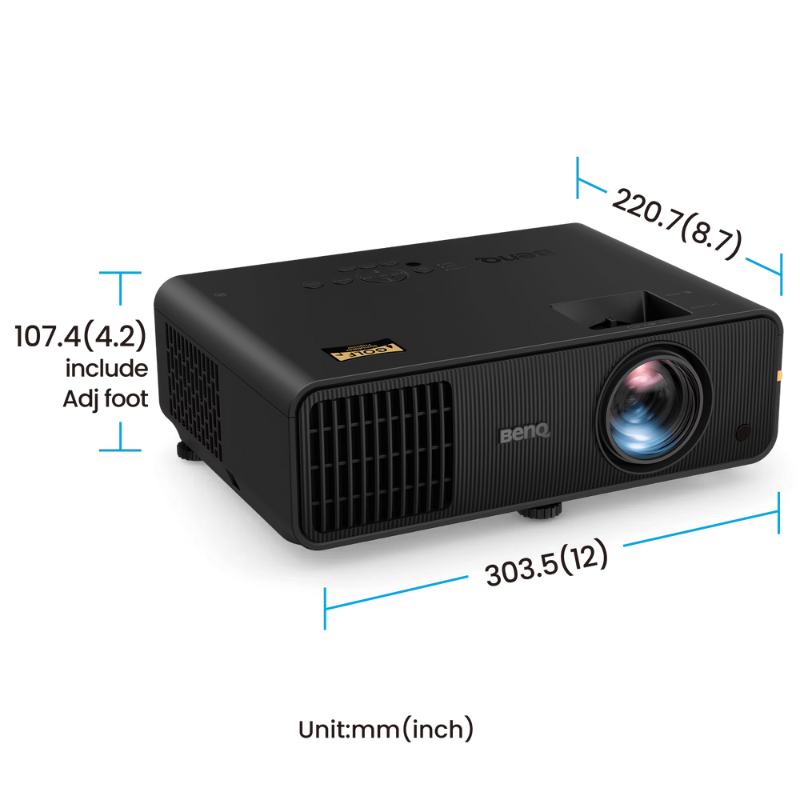

Dimensions & Weight

• Dimensions: 11.95″ W × 4.23″ H × 8.69″ D (303.5 × 107.4 × 220.7 mm)
• Net Weight: 5.84 lb (2.65 kg)

Projection System

• Technology: DLP

FAQ

Can the AW30ST be placed behind the golfer?
Yes. The short-throw design is intended for behind-the-golfer placement to eliminate shadows and reduce equipment impact risk.

What’s the benefit of the 100% offset?
It minimizes the need for tilting and heavy keystone correction, preserving image geometry and sharpness.

Does it support wireless projection?
Yes, with the optional EZC-5201BS dongle for 1080p wireless.

Is it suitable for garages or dusty environments?
Yes. The dust-resistant, filter-free design is ideal for home and garage setups.

How long does the LED light source last?
Up to 30,000 hours in Eco Mode.

Resources

• BenQ AW30ST User Manual
• BenQ AW30ST Quick Start Guide
