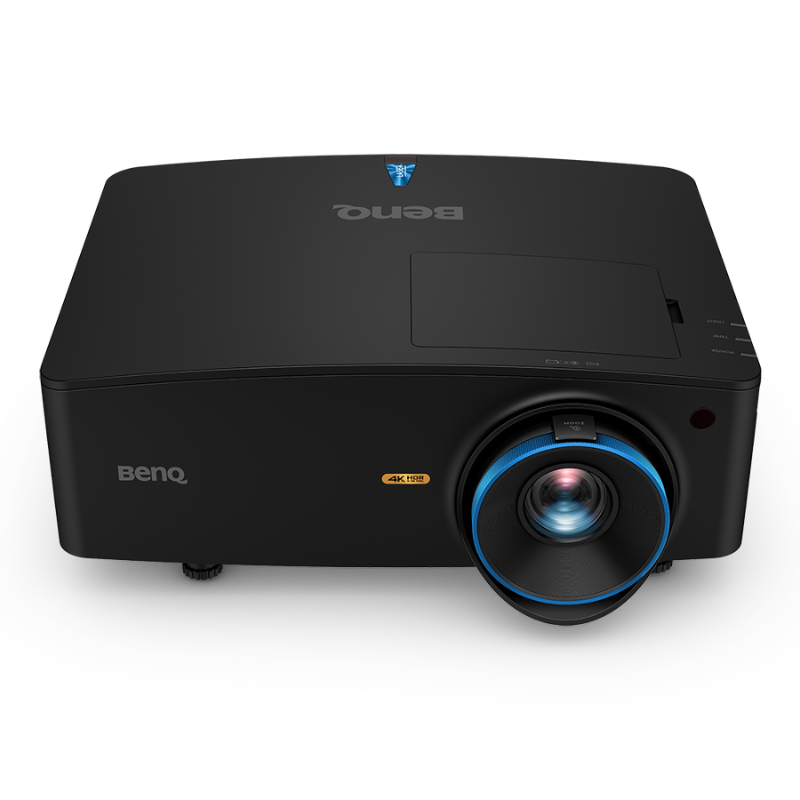

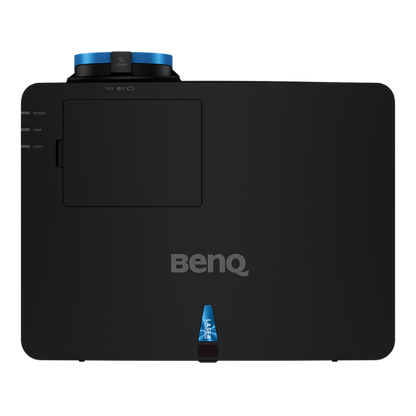

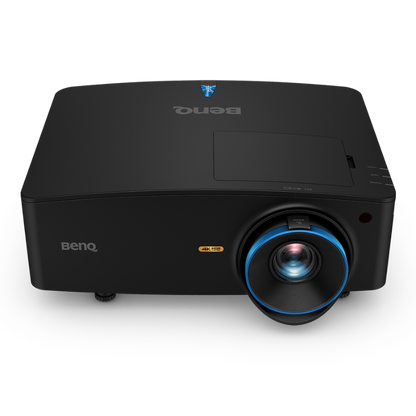

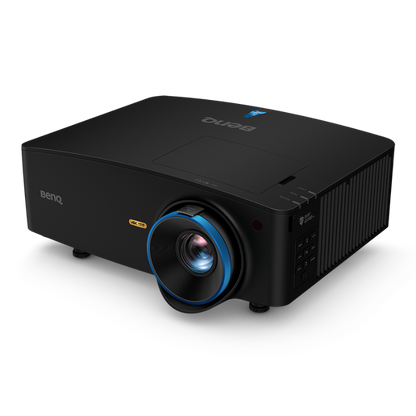

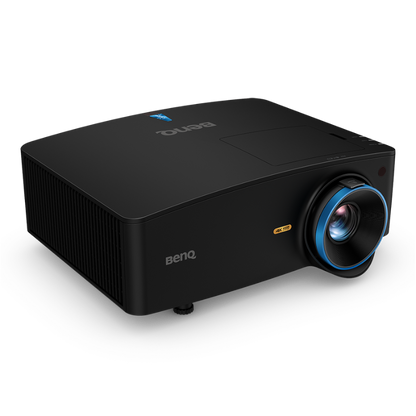

BenQ LK936ST 4K HDR Short Throw Laser Golf Simulator Projector

Description

The BenQ LK936ST 4K HDR Short Throw Laser Golf Simulator Projector is engineered for premium golf simulator setups, delivering stunning detail, lifelike color, and versatile installation. With 5,100 lumens brightness, a 0.81–0.89 short throw ratio, and a 20,000-hour BlueCore laser light source, it provides consistent performance and reliability for immersive indoor golf.

Its 4K UHD resolution with HDR support ensures sharp, vibrant visuals, while flexible lens shift, keystone, and connectivity options make setup simple in a wide range of environments.

Features

• 4K UHD resolution with HDR for ultra-sharp visuals
• 5,100 ANSI lumens brightness for vivid images in any lighting
• Short throw ratio of 0.81–0.89 for large screens in compact spaces
• BlueCore laser technology with 20,000-hour lifespan
• Versatile connectivity: HDMI, DisplayPort, LAN, HDBaseT, USB
• Flexible lens shift and keystone correction for easy installation
• Built-in 10 W speaker for immersive sound

What’s Included

• BenQ LK936ST
• Remote control with batteries
• Power cord
• HDMI cable (1.8 m)
• Installation guide
• Warranty card

Specifications

Display

• Brightness: 5,100 ANSI lumens
• Native resolution: 4K UHD (3840 × 2160)
• Aspect ratio: 16:9 native
• Selectable aspect ratios: 16:9, 16:10, 4:3, 2.4:1
• Contrast ratio: 3,000,000:1
• Display color: 30-bit (1.07 billion colors)
• Light source: Laser
• Light source life: 20,000 hrs (Normal)

Optical

• Throw ratio: 0.81–0.89
• Zoom ratio: 1.1×
• Lens: F 1.83–1.86, f 8.6–9.4 mm
• Projection offset: 0%
• Keystone: Vertical ±40°, Horizontal ±40°, Rotation ±40°
• Lens shift: Vertical -60% to +60%, Horizontal -23% to +23%


• Rec.709 coverage: 92%
• Picture modes: 3D, Bright, DICOM SIM, Golf, Infographic, Presentation, sRGB, User 1, User 2, Video

Compatibility

• Input lag: 33.4 ms (1080p @ 60 Hz)
• Resolution support: VGA (640 × 480) to 4K UHD (3840 × 2160)
• Horizontal frequency: 15K–135K Hz
• Vertical scan rate: 23–240 Hz

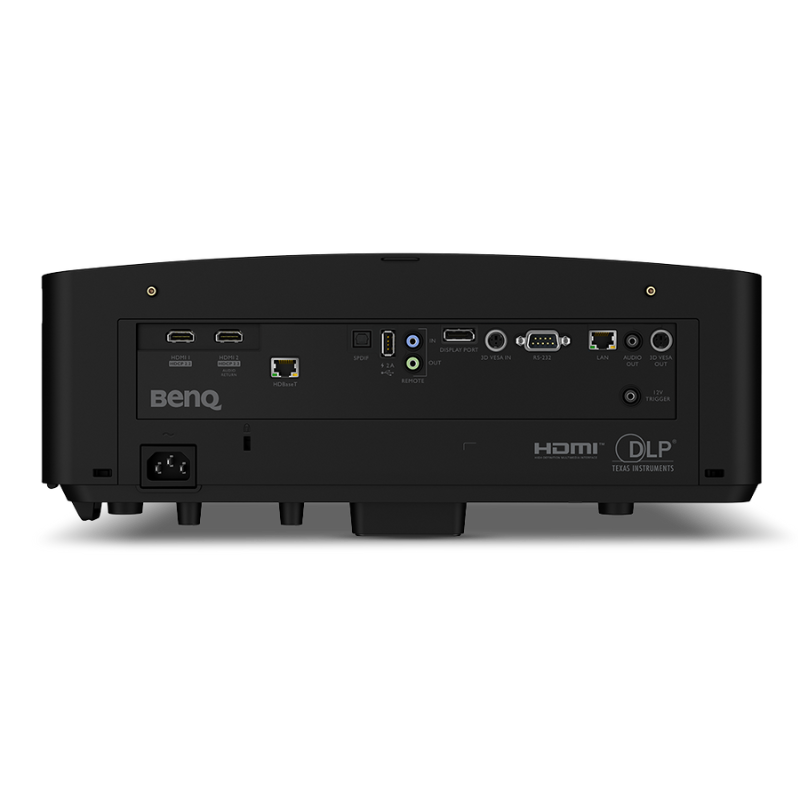

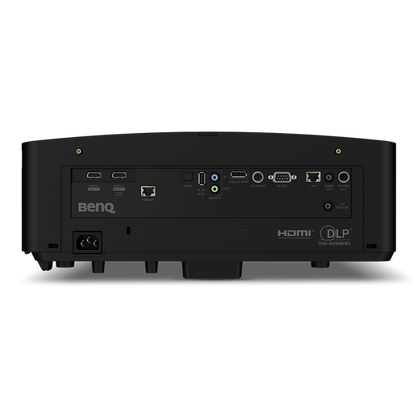

I/O Interface

• HDMI: 2 × HDMI 2.0b (HDCP 2.2)
• DisplayPort: 1
• LAN: 1 × RJ45
• HDBaseT: 1 × RJ45 (video/audio)
• 3D Sync: 1 × In, 1 × Out (VESA)
• USB: 1 × Type-A (2.0, 2.0 A power)
• RS232: 1 × DB-9 pin
• Wired remote: 1 × In, 1 × Out (3.5 mm)
• DC 12V trigger: 1 × (3.5 mm)

Audio

• Speaker: 1 × 10 W
• Audio out: 3.5 mm
• HDMI audio return: ARC, 5.1 channel
• S/PDIF: Multi-channel, RAW

Environment

• Operating temperature: 0–40 °C
• Power supply: AC 100–240 V, 50/60 Hz
• Power consumption: 440 W typical (110 V)
• Standby: <0.5 W
• Network standby: <2 W
• Noise (typical/eco): 40/33 dB

Accessories

• Remote: RCA011
• Power cord: 1.8 m (regional)
• HDMI cable: 1.8 m
• 3D glasses (optional): DGD5
• Installation guide
• Warranty card
• Universal ceiling mount (optional): CM00G3

Dimensions and Weight

• Size: 416 × 166 × 351 mm
• Net weight: 7 kg

Projection System

• Technology: DLP

Resources

• BenQ LK936ST User Manual
