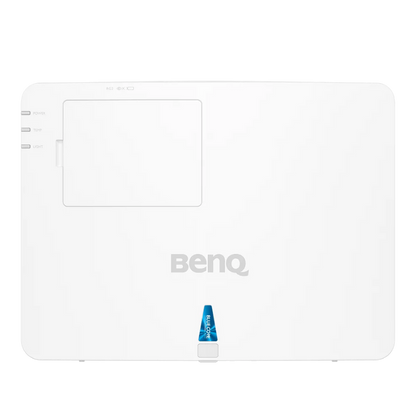

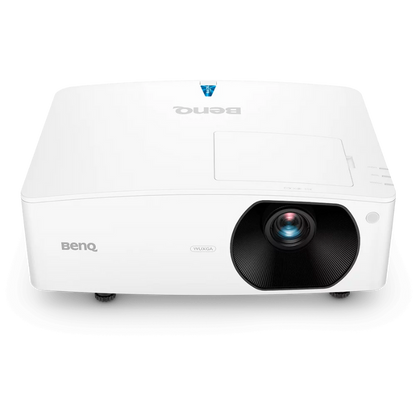

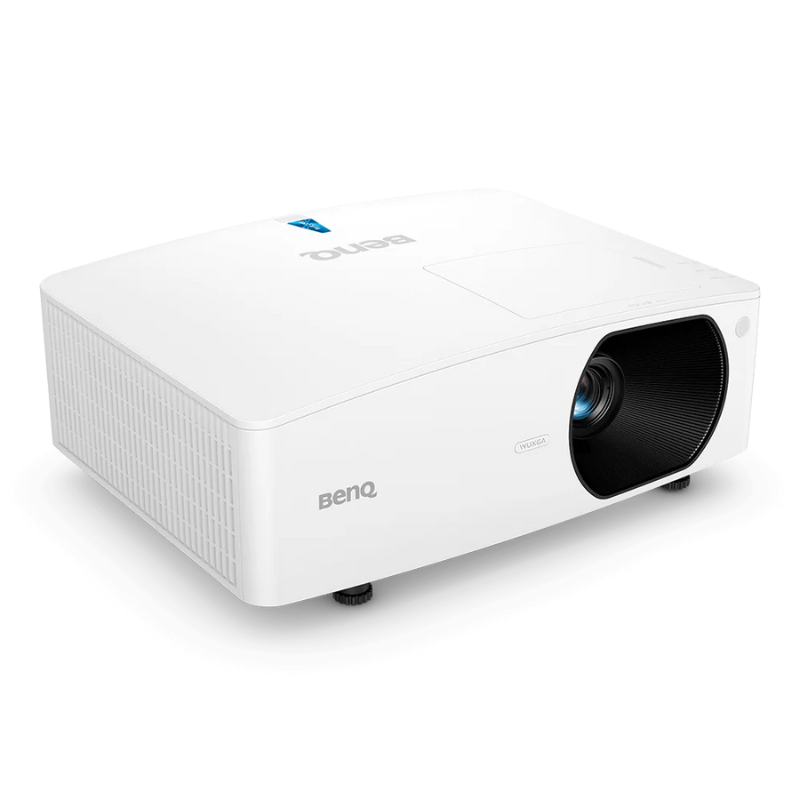

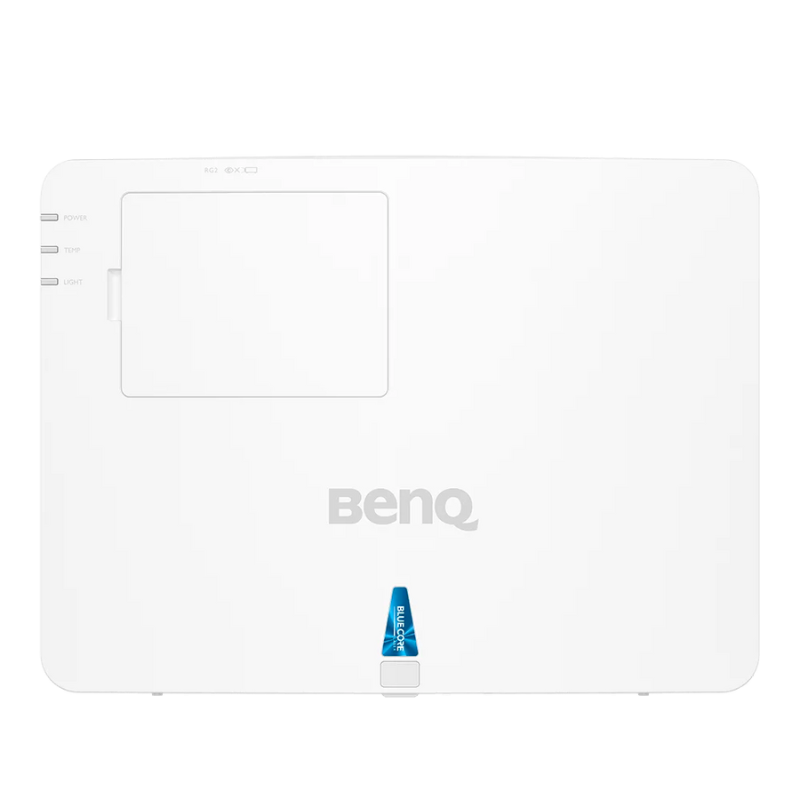

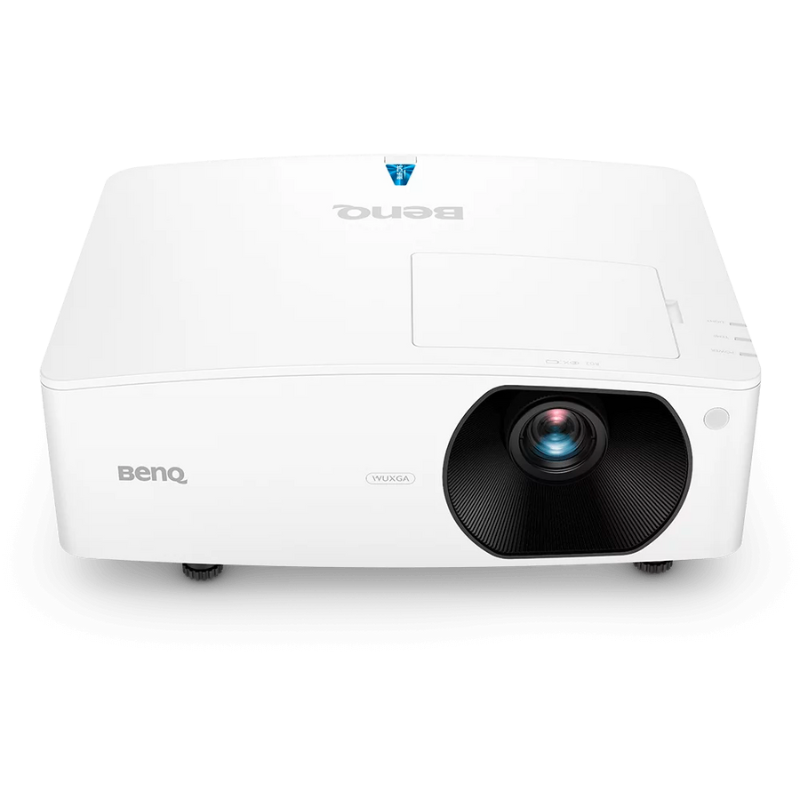

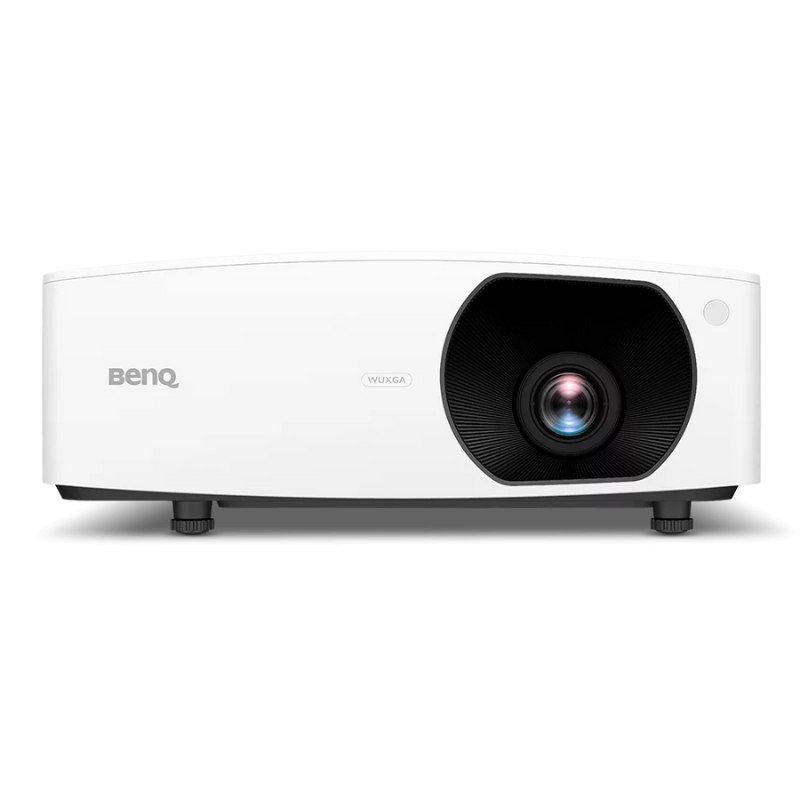

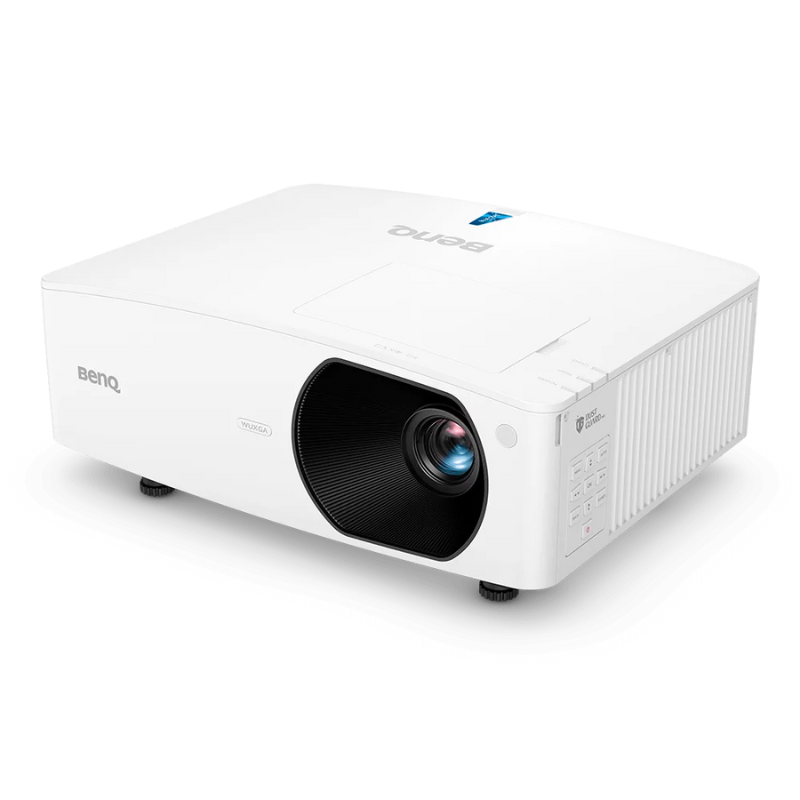

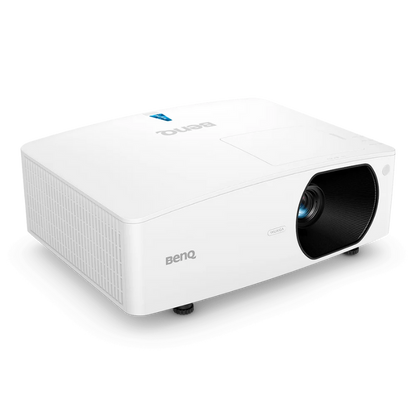

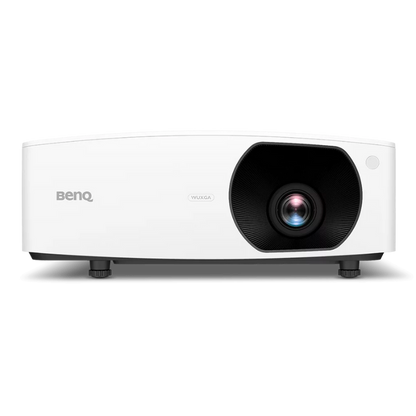

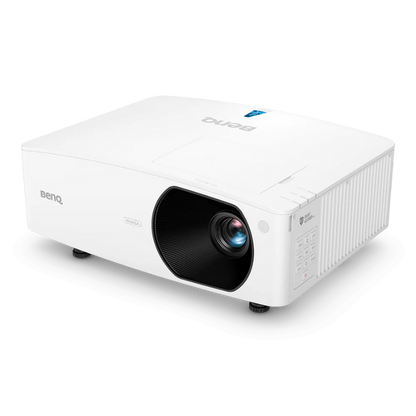

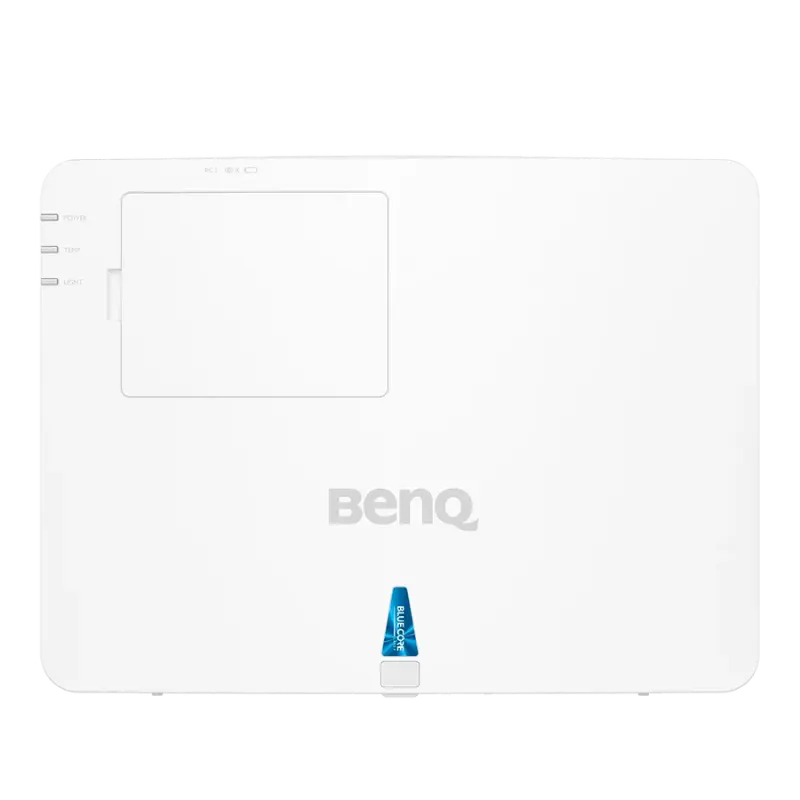

BenQ LU710 4000-Lumen WUXGA Laser Normal Throw Golf Simulator Projector

Description

The BenQ LU710 4000-Lumen WUXGA Laser Normal Throw Golf Simulator Projector brings bright, vivid, and color-accurate images to your golf sim studio. Its native WUXGA (1920×1200, 16:10) resolution shows more vertical course detail than 1080p, while the laser light source delivers up to 20,000 hours of consistent performance. A flexible 1.13–1.46 throw ratio can produce a 171″ image from roughly 14 ft, and built-in 2D keystone plus Corner Fit make alignment fast and precise—even off-center.

With 4000 ANSI lumens and coverage of 92% Rec.709, the LU710 stays punchy on larger impact screens. Its IP5X-rated, dust-sealed laser engine is filter-free—ideal for garages and basements—with lower ownership cost and instant on/off convenience.

What’s Included

• BenQ LU710 Projector
• Remote Control with Battery (RCE016)
• Power Cord (1.8 m)
• HDMI Cable (1.8 m)
• Quick Start Guide
• Warranty Card

Features

Bright & Vivid for Bigger Screens
4000 lumens keeps your image clear on wide, tall impact screens without washing out.

WUXGA Resolution (16:10)
Higher pixel count than 1080p with extra vertical space for UIs, ball-flight data, and swing visuals.

Flexible Placement
Short normal-throw 1.13–1.46 ratio projects up to 171″ at ~14 ft. 2D keystone (V/H) and Corner Fit square the image without moving mounts.

Cinema-Grade Color
Covers 92% Rec.709 for accurate, lifelike turf, sky, and course textures.

Maintenance-Free Laser
Up to 20,000 hours, instant on/off, and IP5X dustproof sealed light engine—no filters to replace.

Specifications

Display

• Brightness: 4000 ANSI lumens
• Native Resolution: WUXGA (1920×1200)
• Native Aspect Ratio: 16:10
• Selectable Aspect Ratios: 16:9, 16:10, 4:3
• Contrast Ratio (FOFO): 3,000,000:1
• Color: 30-bit (1.07 billion)
• Light Source: Laser (Life: up to 20,000 hrs)

Optical

• Throw Ratio: 1.13–1.46
• Zoom: 1.3×
• Lens: F 1.94–2.07, f 11.9–15.5 mm
• Projection Offset (Full Height): 100%
• Keystone: 2D Vertical ±30°, Horizontal ±30°; Corner Fit


• Rec.709 Coverage: 92%
• Modes: 3D, Bright, Infographic, Presentation, sRGB, User 1, User 2, Video

Compatibility

• Input Lag (typ.): ~34 ms (1080p@60Hz)
• Resolution Support: VGA (640×480) → WUXGA_RB (1920×1200)
• H Frequency: 15K–102KHz; V Scan: 23–120Hz

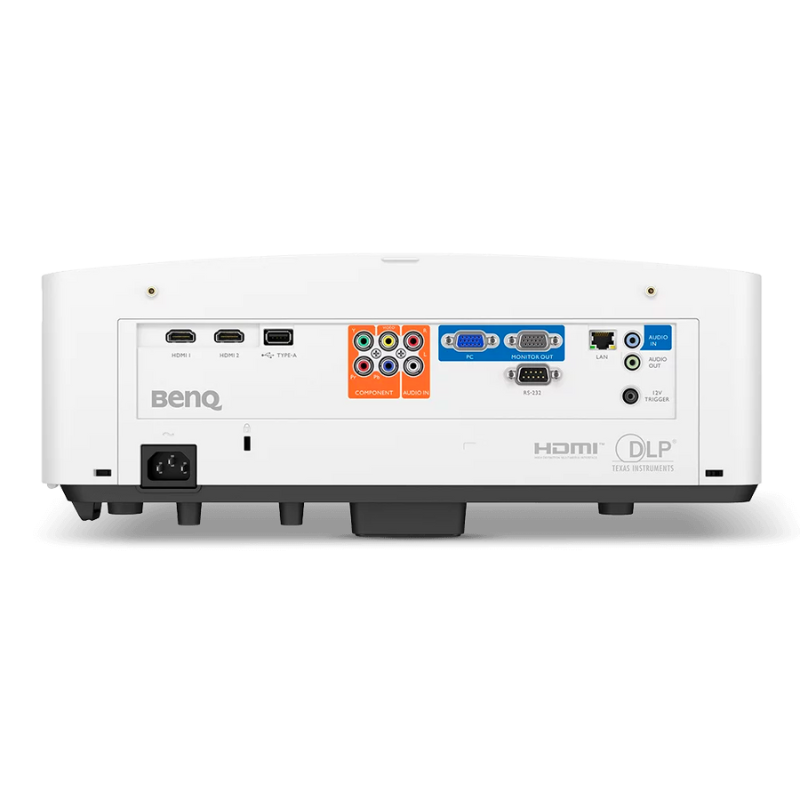

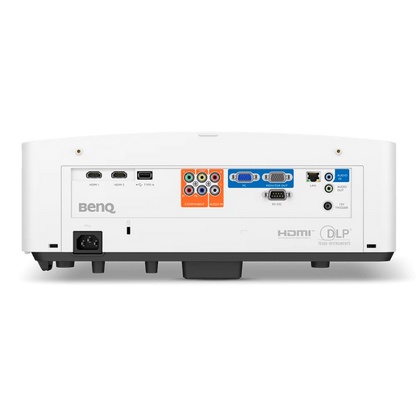

I/O

• HDMI In: 2× (1.4a/HDCP 1.4)
• PC In / Monitor Out (D-sub 15-pin): 1× / 1×
• Composite In (RCA): 1×; Component In (3×RCA): 1×
• LAN (RJ45): 1×
• USB-A: 1× (2.0 / 1.5A / Service)
• RS-232 (DB-9): 1×
• 12V Trigger (3.5 mm): 1×

Audio

• Speakers: 2×10 W
• Audio In / Out (3.5 mm): 1× / 1×

Environment

• Operating Temp: 0–40 ℃
• Power: AC 100–240 V, 50/60 Hz
• Typical Power (110V): Max 340 W / Normal 290 W / Eco 190 W
• Standby / Network Standby: <0.5 W / <2 W
• Noise (Typ./Eco.): 34 / 29 dB

Dimensions & Weight

• Size (W×H×D): 416 × 166 × 312 mm
• Net Weight: 6.3 kg

Projection System

• Technology: DLP

Resources

• BenQ LU710 User Manual
• BenQ LU710 Command Control Installation Guide
