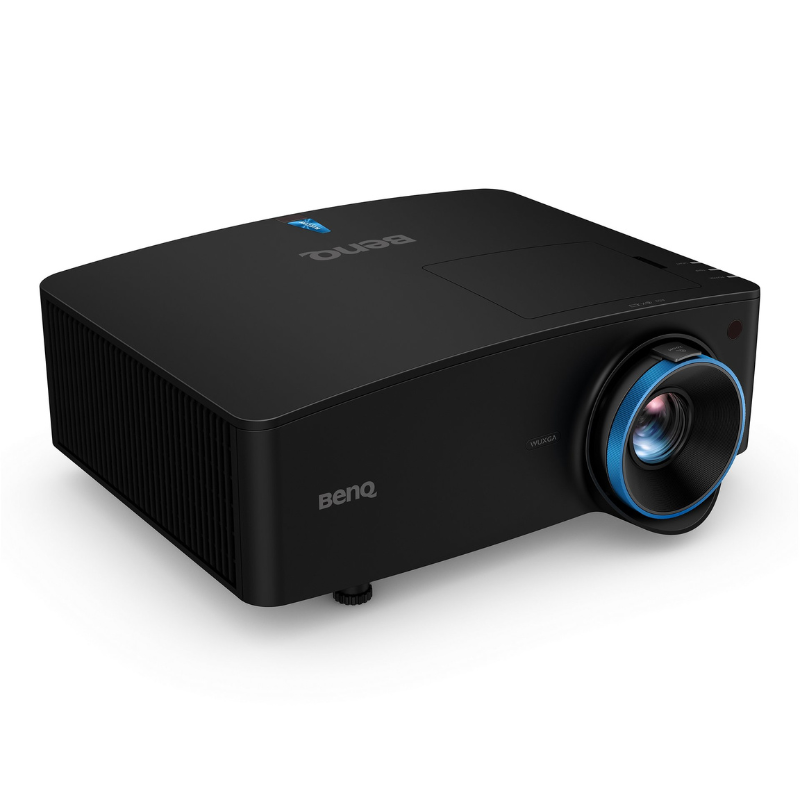

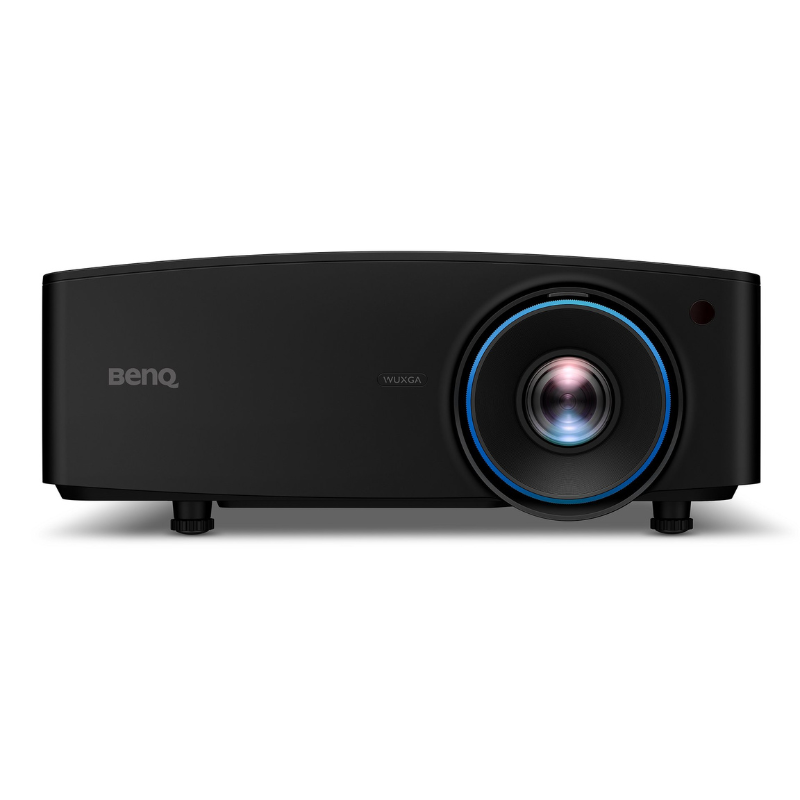

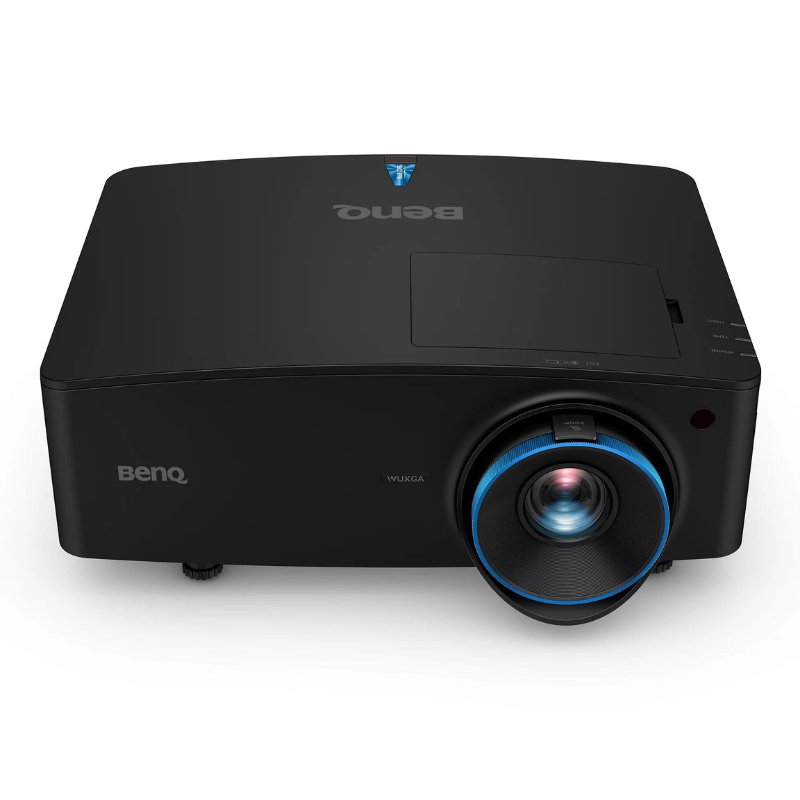

BenQ LU935ST 5500 Lumens Short Throw Laser Golf Simulator Projector

Description

The BenQ LU935ST 5500 Lumens Short Throw Laser Golf Simulator Projector delivers bright, color-accurate visuals tailor-made for indoor golf. Its native WUXGA (1920×1200, 16:10) resolution reveals extra vertical detail versus 1080p, while the fixed short-throw 0.81–0.89 lens fills wide impact screens from close range—perfect for keeping the projector behind the golfer and out of the swing path. A sealed BlueCore laser light source provides up to 20,000 hours of maintenance-light performance with a striking 3,000,000:1 dynamic contrast ratio.

Key Features

• Short Throw Advantage: 0.81–0.89 throw ratio fills a 12 ft-wide screen from ~9.7–10.7 ft, minimizing shadows and collision risk.
• High Brightness: 5500 ANSI lumens for punchy images in controlled or mixed ambient light.
• Precise Setup: Vertical/Horizontal lens shift (V: –60%~+60%, H: –23%~+23%), 2D keystone, and Corner Fit speed up alignment.
• BlueCore Laser Reliability: Up to 20,000-hr life; lower upkeep than lamp-based projectors.
• Accurate Color: 92% Rec.709 coverage renders lifelike turf, sky, and course textures.
• Onboard Audio: Dual 10 W speakers for simple, all-in-one setups.

What’s Included

• BenQ LU935ST (x1)
• Remote Control with Batteries (x1)
• Power Cord (x1)
• Installation Guide (x1)
• Warranty Card (x1)

Specifications

Display

• Brightness: 5500 ANSI lumens
• Native Resolution: WUXGA (1920×1200)
• Native Aspect Ratio: 16:10
• Selectable Aspect Ratios: 16:9, 16:10, 4:3, 2.4:1
• Contrast Ratio (FOFO): 3,000,000:1
• Display Color: 30-bit (1.07B colors)
• Light Source: Laser (Life: 20,000 hrs)

Optical

• Throw Ratio: 0.81–0.89
• Zoom Ratio: 1.1×
• Lens: F 1.83–1.86, f 8.6–9.4 mm
• Projection Offset (Full-Height): 0%
• Keystone: 2D Vertical ±30°, Horizontal ±30°; Corner Fit
• Lens Shift: Vertical –60%~+60%, Horizontal –23%~+23%


• Rec.709 Coverage: 92%
• Modes: 3D, Bright, Golf, Presentation, sRGB, User 1, User 2

Compatibility

• Input Lag (typ.): 33.4 ms (1080p@60Hz)
• Resolution Support: VGA (640×480) → 4K UHD (3840×2160)
• Horizontal Frequency: 15K–102KHz; Vertical Scan Rate: 23–120Hz

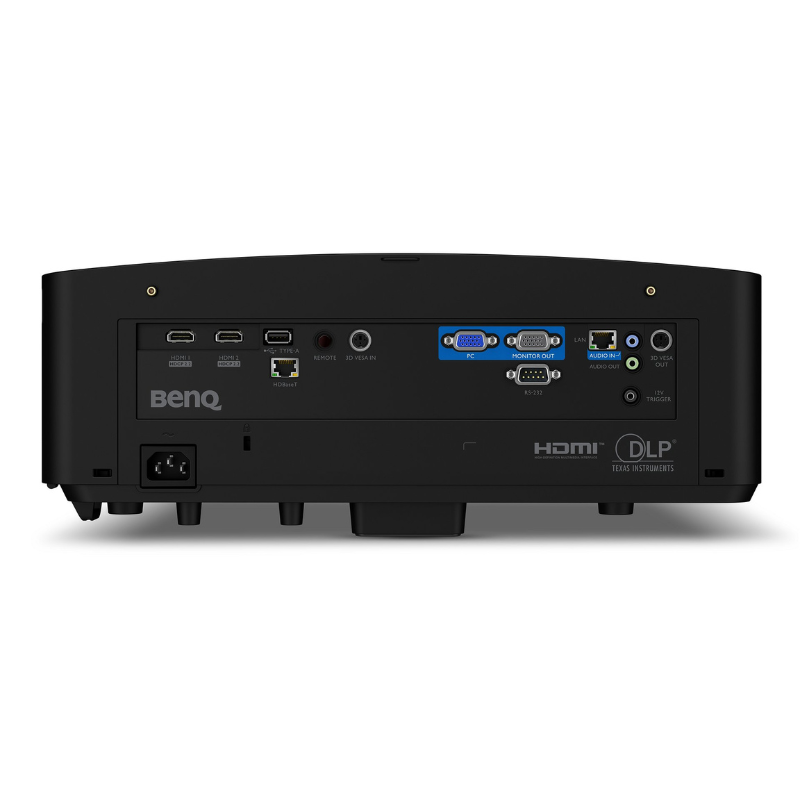

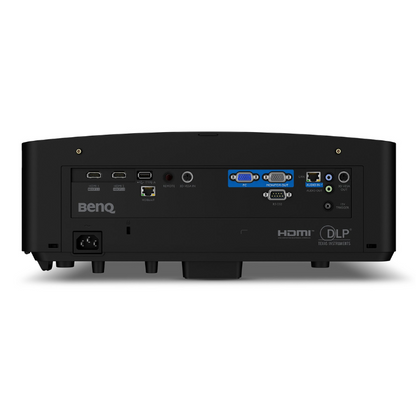

I/O Interface

• HDMI In: 2× (2.0a / HDCP 2.2)
• HDBaseT (RJ45): 1× (Video/Audio)
• LAN (RJ45): 1×
• PC In (D-sub 15-pin): 1×; Monitor Out (D-sub 15-pin): 1×
• 3D Sync In/Out: 1× / 1×
• USB-A: 1× (2.0 / 1.5A power)
• RS-232 (DB-9): 1×
• Wired Remote In (3.5 mm): 1×; 12V Trigger (3.5 mm): 1×

Audio

• Speakers: 2×10 W
• Audio In / Out (3.5 mm): 1× / 1×

Environment

• Operating Temperature: 0–40 ℃
• Power: AC 100–240 V, 50/60 Hz
• Typical Power (110V): 440 W
• Standby / Network Standby: <0.5 W / <2 W

Dimensions & Weight

• Size (W×H×D): 16.3″ × 6.5″ × 13.81″
• Net Weight: 7 kg

Projection System

• Technology: DLP

Resources

• BenQ LU935ST Control Guide
• BenQ LU935ST User Manual
