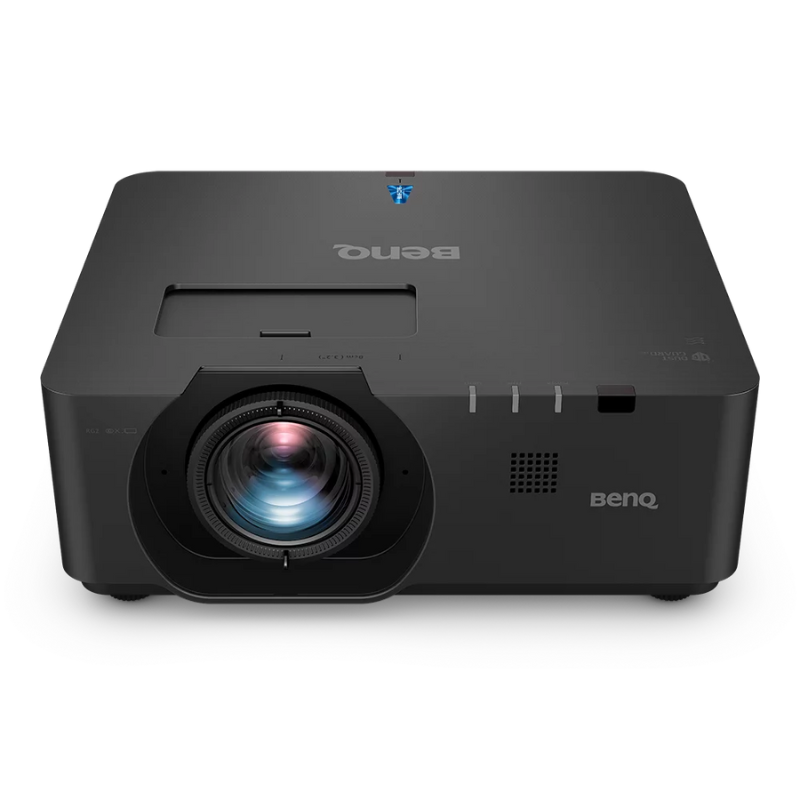

BenQ LU960ST2 WUXGA 4K Short Throw Laser Golf Simulator Projector

Description

The BenQ LU960ST2 WUXGA 4K Short Throw Laser Golf Simulator Projector delivers bright, true-to-life visuals for golf sim studios. With 5,200 ANSI lumens, a 0.5 short-throw lens, and an Exclusive Simulator Mode (pre-calibrated for sim use), it produces large, crisp images from close range while minimizing shadows and collision risk. BenQ’s sealed laser light engine provides up to 20,000 hours (Normal) and as much as 70,000 hours (Dimming) of maintenance-light operation, and Fast Mode cuts latency for highly responsive swing feedback.

Features

Superior Laser Brightness
Advanced diode alignment reaches 5,200 ANSI lumens for vivid images—even with ambient light.

IP5X Sealed Optics
Protects the DMD, color wheel sensor, and laser package for long, reliable performance.

DLP Durability
Hermetically sealed DLP chip resists heat for 200,000+ hours without image degradation.

High Contrast & Dark-Scene Detail
DLP architecture delivers a dynamic contrast up to 3,000,000:1 for lifelike fairways and greens.

Fast Mode Low Latency
As low as 16.67 ms (@ WUXGA 60 Hz) for responsive simulator interaction.

Short Throw for Tight Spaces
0.5 throw ratio creates images up to 200″ from ~2 m, reducing shadows from the golfer.

Flexible Placement with H/V Lens Shift
Vertical shift: ±55% of screen height; Horizontal shift: ±23% for off-axis mounting.

Exclusive Simulator Mode
One-touch presets optimized for sim color/contrast. Robust I/O (HDMI 2.0, DP, HDBaseT, 3D Sync) for clean, long-run installations.

What’s Included

• BenQ LU960ST2 Projector
• Remote Control with Batteries
• Power Cord
• Installation Guide
• Warranty Card

Specifications

Display

• Brightness: 5,200 ANSI lumens
• Native Resolution: WUXGA (1920 × 1200)
• Native Aspect Ratio: 16:10
• Selectable Aspect Ratios: 16:9, 16:10, 4:3, 2.35:1, 1:1
• Contrast Ratio (FOFO): up to 3,000,000:1
• Color Depth: 30-bit (1.07 billion colors)
• Light Source: Laser
• Light Source Life: Normal 20,000 hrs; Eco 38,000 hrs; Dimming 70,000 hrs

Optical

• Throw Ratio: 0.5 (fixed)
• Zoom: Fixed
• Projection Offset: 0%
• Keystone: 2D, Vertical ±30°, Horizontal ±30°
• Lens Shift (Vertical): −55% ~ +55%
• Lens Shift (Horizontal): −23% ~ +23%


• Rec.709 Coverage: 92%
• Modes: 3D, Bright, HDR10, HLG, Presentation, Simulator, sRGB, User 1, User 2, Video

Compatibility

• Input Lag: as low as 16.67 ms (@ WUXGA 60 Hz); 8.3 ms (@ 1080p 120 Hz)
• Resolution Support: VGA (640 × 480) up to 4K UHD (3840 × 2160)
• Horizontal Frequency: 15K–135K Hz
• Vertical Scan Rate: 23–120 Hz

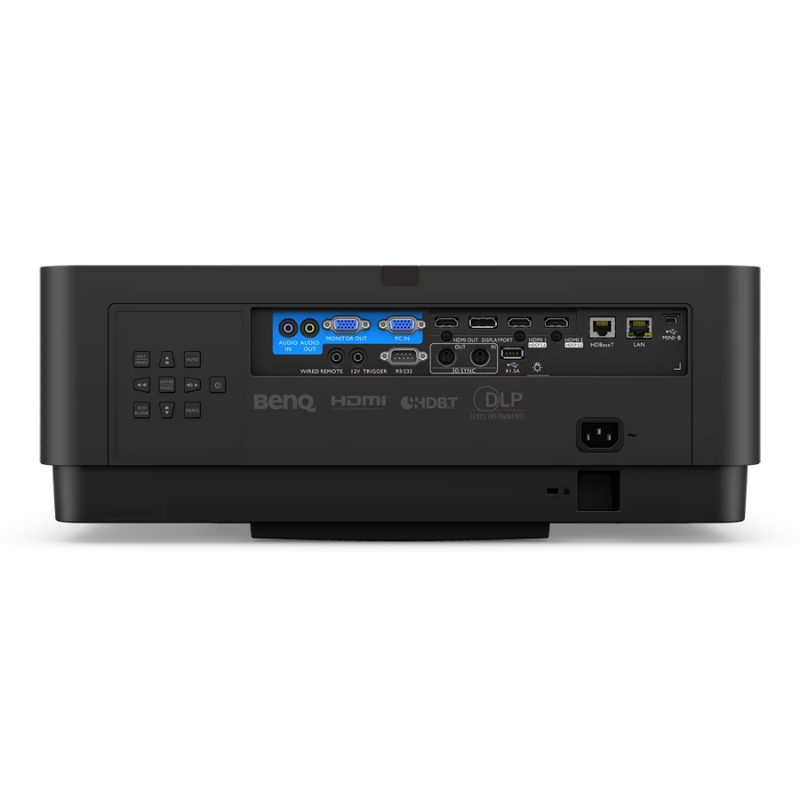

I/O

• PC in (D-sub 15-pin): 1
• Monitor out (D-sub 15-pin): 1
• HDMI in: 2 (HDMI 2.0a / HDCP 2.2)
• HDMI Monitor out: 1
• DisplayPort: 1
• HDBaseT (RJ45): 1 (control/video/audio)
• LAN (RJ45): 1
• 3D Sync in / out: 1 / 1
• USB Type-A: 1 (5V/1.5A)
• USB Mini-B (service): 1
• RS-232 (DB-9): 1
• Wired Remote (3.5 mm): 1
• 12V Trigger (3.5 mm): 1

Audio

• Speaker: 10 W
• Audio In / Out (3.5 mm): 1 / 1

Environment

• Operating Temperature: 0–40 °C
• Power Supply: AC 100–240 V, 50/60 Hz
• Typical Power (110 V): 450 W
• Standby Power: <0.5 W (Network standby <2 W)

Dimensions & Weight

• Dimensions (W × H × D): 479.6 × 182.8 × 402 mm (18.9 × 7.2 × 15.8 in)
• Net Weight: 12 kg (26.46 lb)

Projection System

• Technology: DLP

Resources

• BenQ LU960ST2 User Manual
• BenQ LU960ST2 RS-232 Control Guide
