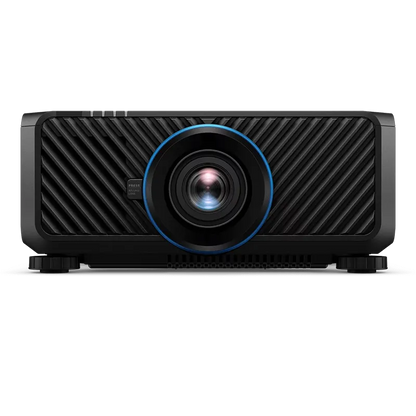

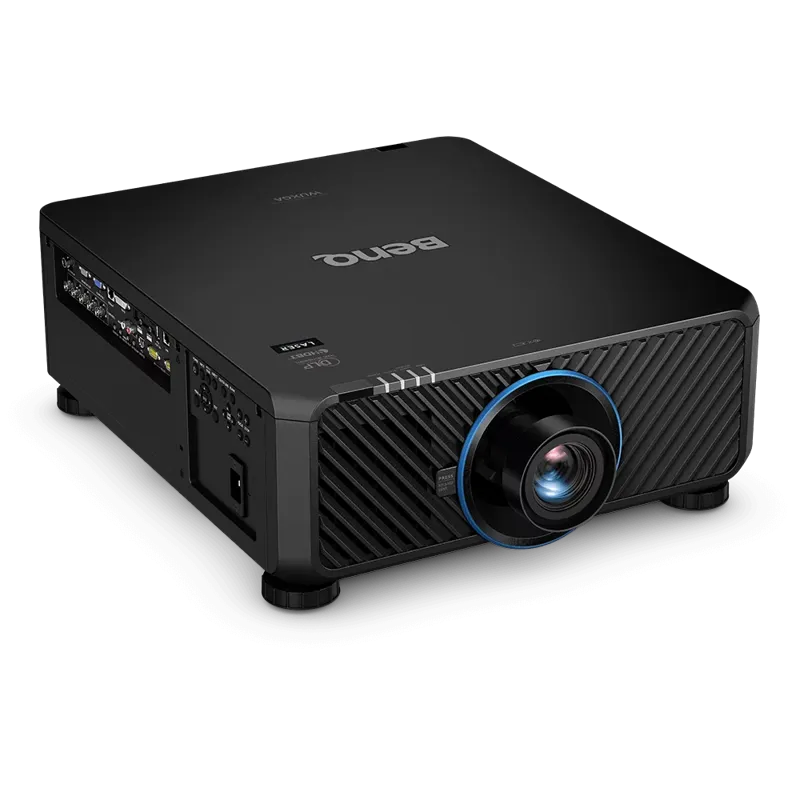

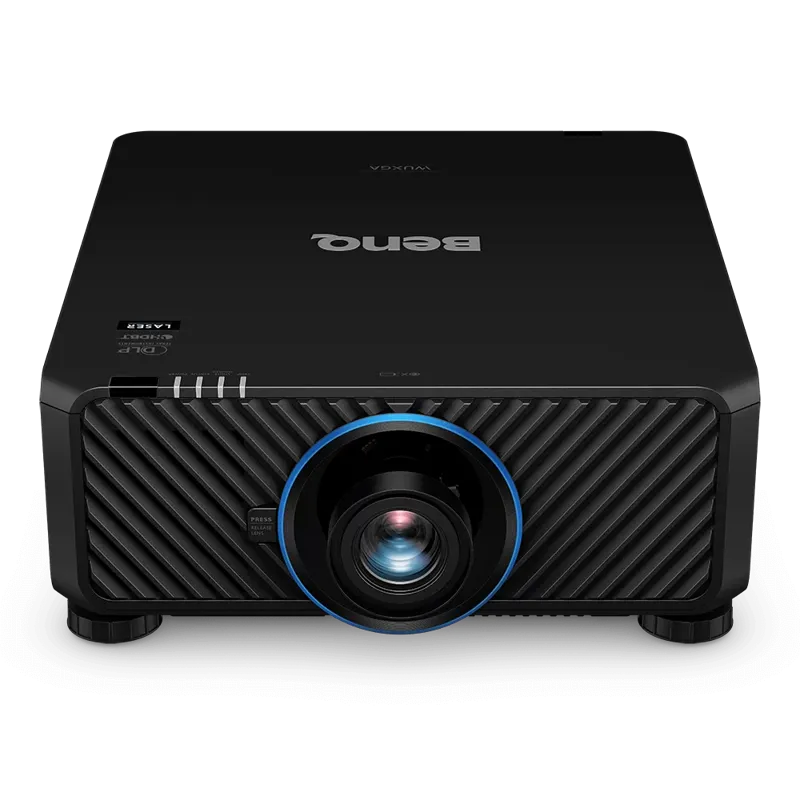

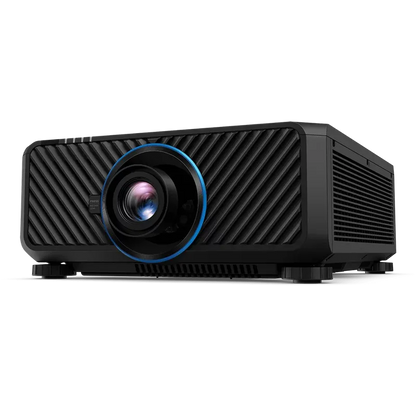

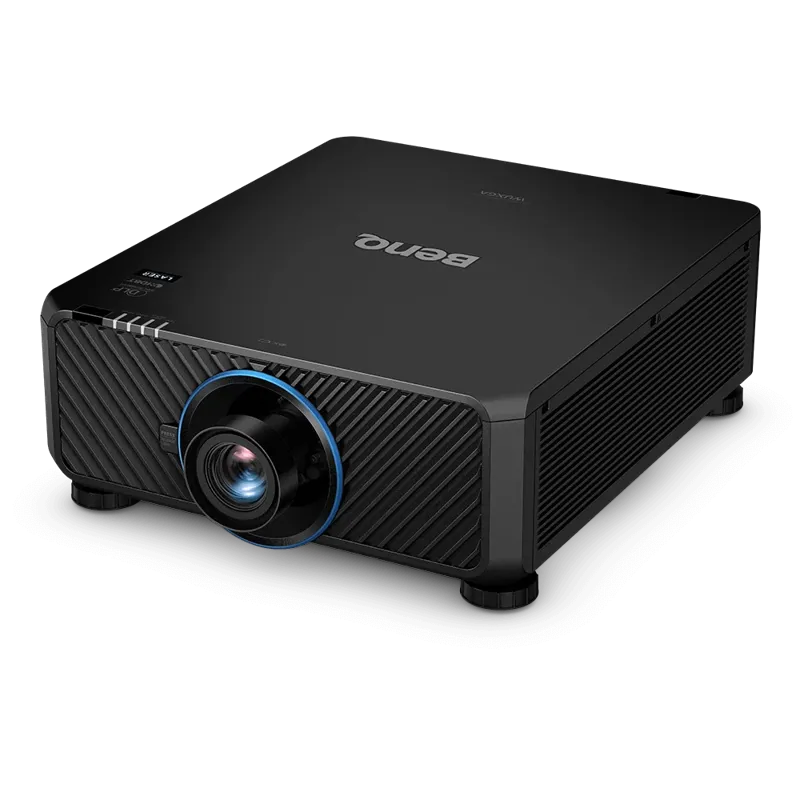

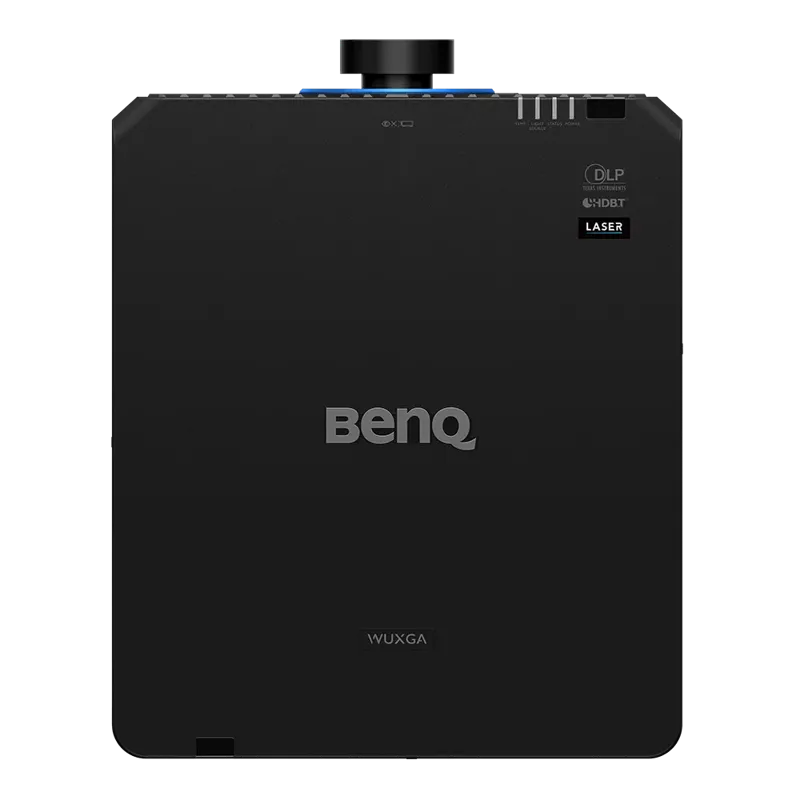

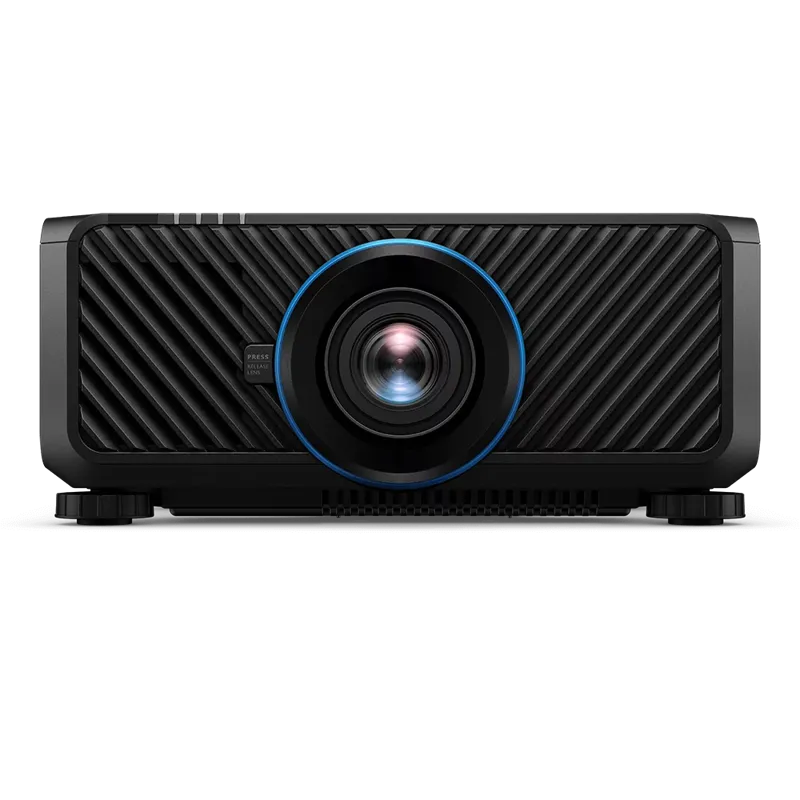

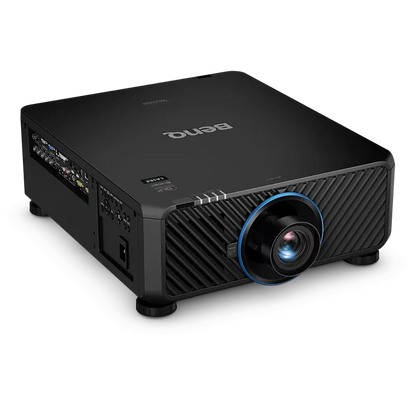

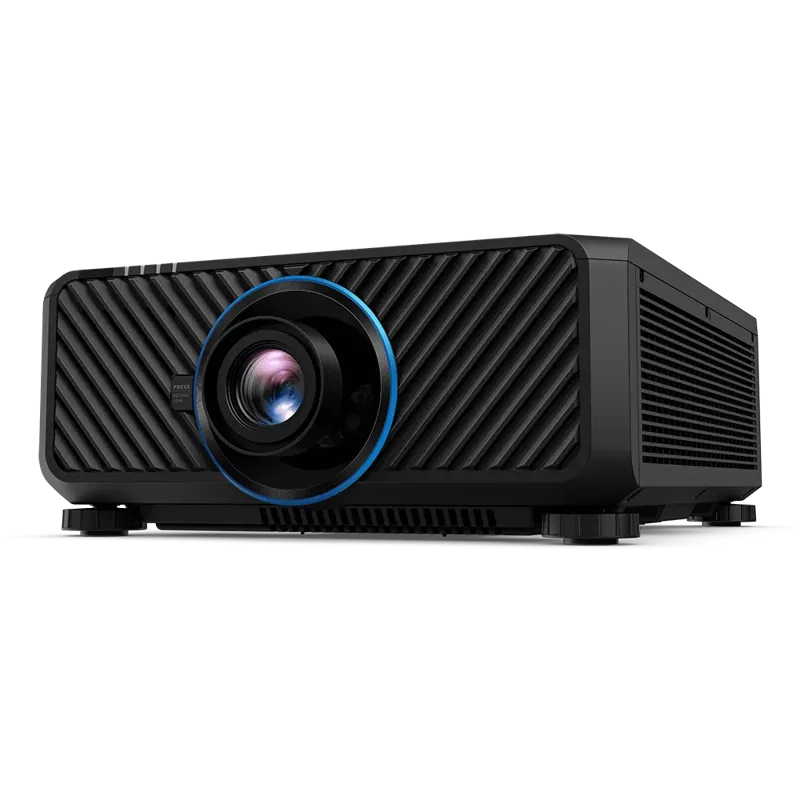

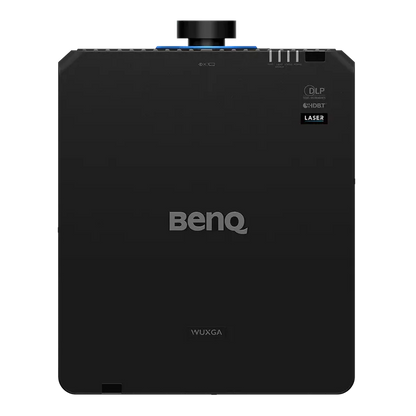

BenQ LU9800 10000lms WUXGA Large-Venue Projector

Description

The BenQ LU9800 10,000-lumen WUXGA Large-Venue Projector is built for arenas, houses of worship, auditoriums, museums, and expansive simulator spaces. Its laser light engine, precise WUXGA (1920 × 1200) resolution, and installation-friendly design deliver brilliant brightness, vibrant color, and long service life—ideal for 24/7 operation and demanding environments.

Features

Laser Precision & Color Accuracy
Revolutionary laser phosphor engine with dual color wheels (RGBY) produces rich, accurate color and sharp text without a white segment.

Reliable 1-Chip DLP
A robust 1-chip DLP design ensures color stability and crisp detail; the DLP chip is rated for 100,000+ hours.

Ultra-High Contrast
Dynamic light control achieves a 3,000,000:1 FOFO contrast ratio for deep blacks and high intra-scene contrast.

Enhanced WUXGA Clarity
Native WUXGA 16:10 exceeds Full HD 1080p, preserving fine detail for data, CAD, maps, and simulator UIs.

Factory White Balance Calibration
Out-of-box white balance matching reduces unit-to-unit variance and speeds multi-projector setup.

Custom Light Mode (40%–100%)
Fine-tune output in 80 steps to match screen size, ambient light, and multi-projector brightness uniformity.

Flexible Installation
Interchangeable lenses (UST to long-throw), generous vertical/horizontal lens shift, 2D keystone, and HDBaseT simplify throw, placement, and signal runs.

What’s Included

• Remote control with battery (RCA025)
• Power cord (regional)
• User Manual CD
• Installation Guide
• Warranty card (regional)
• Lens cover

Specifications

Display

• Brightness: 10,000 ANSI lumens
• Native Resolution: WUXGA (1920 × 1200)
• Native Aspect Ratio: 16:10
• Selectable Aspect Ratios: 16:9, 16:10, 4:3, 1:1, 2.35:1
• Contrast Ratio (FOFO): 3,000,000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: Laser
• Light Source Life: Normal 20,000 hrs / Eco 38,000 hrs / Dimming 70,000 hrs

Optical (Lens Options & Throw)

• Throw Ratio (by lens):
  • Ultra Short Throw: 0.38 (LS1ST3A)
  • Short Throw: 0.77–1.10 (LS1ST2A)
  • Wide Zoom 2: 1.10–1.30 (LS1ST1A)
  • Wide Zoom 1: 1.25–1.60 (LS1SDA)
  • Standard: 1.54–1.93 (LS1LT0)
  • Semi-Long: 1.93–2.90 (LS1LT1)
  • Semi-Long 1: 2.22–3.67 (LS1LT2)
  • Long Zoom 1: 3.58–5.38 (LS1LT3)
  • Long Zoom 2: 5.31–8.26
• Zoom Ratio (by lens): up to 1.67× (varies by lens; UST fixed)
• Projection Offset (Full Height): 0%
• Lens Shift (by lens):
  • Up to V: −15% ~ +55% / H: −10% ~ +10% (varies by lens; see lens chart)
• Keystone: 2D, Vertical ±30°, Horizontal ±30°


• Rec.709 Coverage: 95%
• Picture Modes: 3D, Bright, DICOM SIM, HDR10, HLG, Infographic, Presentation, sRGB, User 1/2, Video

Compatibility

• Input Lag: 33.4 ms (1080p/60)
• Signal Support: VGA (640×480) to WUXGA_RB (1920×1200)
• Horizontal Frequency: 15 kHz–135 kHz
• Vertical Scan Rate: 23–120 Hz

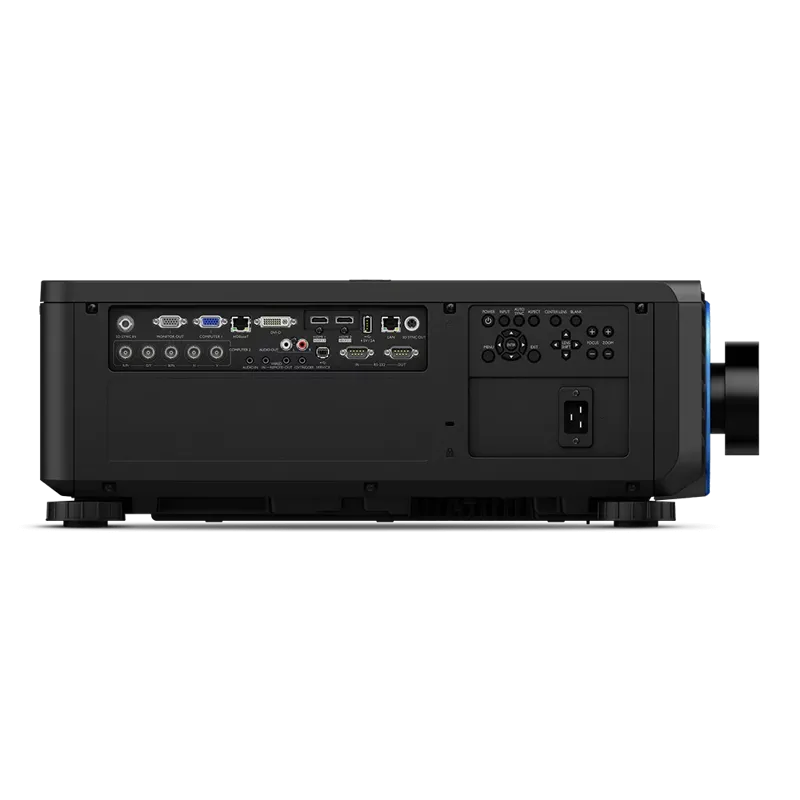

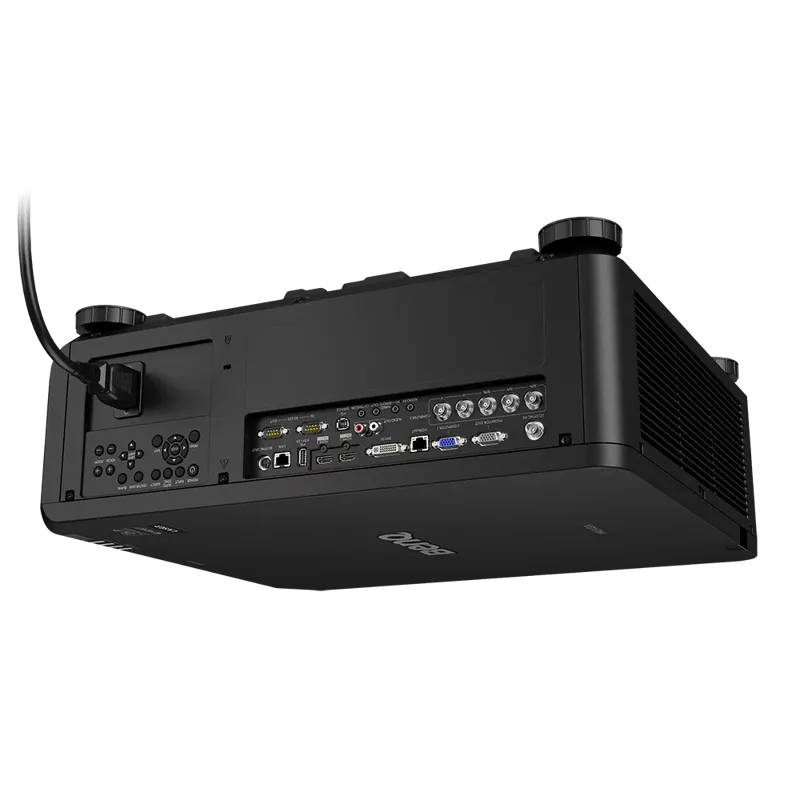

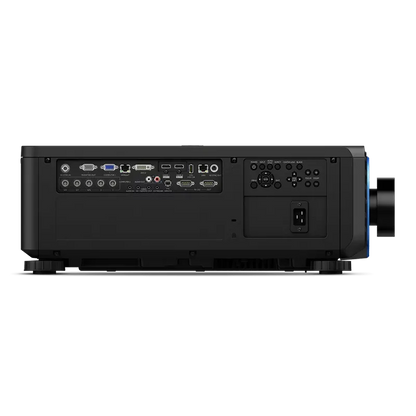

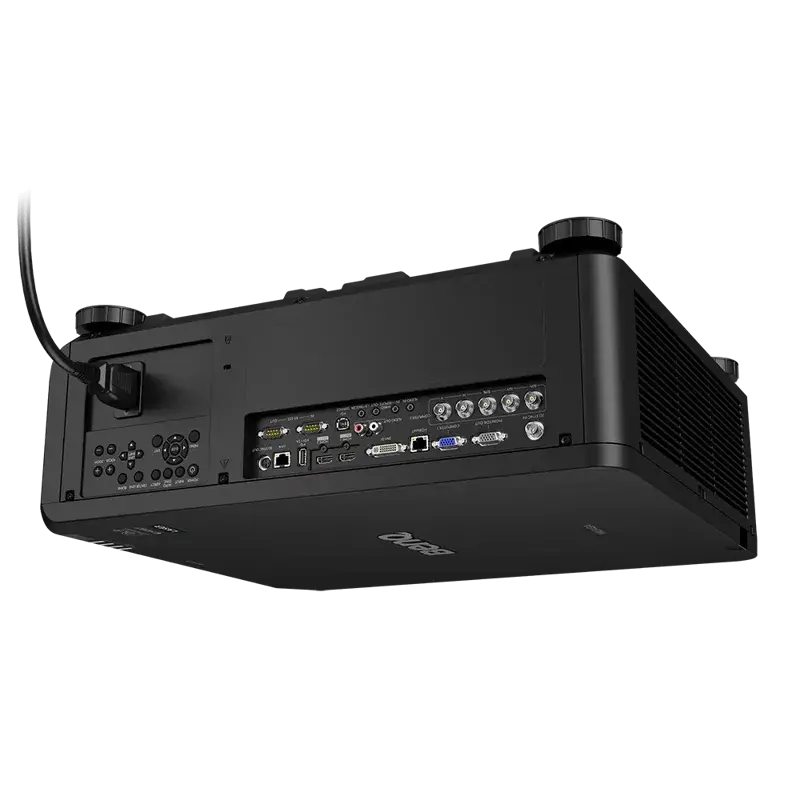

I/O

• PC in (D-sub 15-pin): 1
• Monitor out (D-sub 15-pin): 1
• HDMI in: 2
• LAN (RJ45): 1
• HDBaseT (RJ45): 1
• 3D Sync in/out: 1 / 1
• USB Type-A: 1
• USB Type-B (service): 1
• RS-232 in/out (DB-9): 1 / 1
• Wired Remote in/out (3.5 mm): 1 / 1
• 12 V Trigger (3.5 mm): 1

Audio

• Internal Speaker: None
• Audio in (3.5 mm): 1

Environment & Power

• Operating Temperature: 0–40 °C
• Power: AC 100–240 V, 50/60 Hz
• Typical Power (110 V): 893 W
• Standby: < 0.5 W (Network standby: < 6 W)
• Noise (Typ/Eco): 42 / 38 dB

Dimensions & Weight

• Size (W × H × D): 500 × 211 × 587.3 mm
• Net Weight: 26.8 kg (59 lb)

Projection System

• Technology: DLP

FAQ

Does the LU9800 support 24/7 operation?
Yes—its laser engine and thermal design support continuous operation for museums, exhibits, and control rooms.

What is the laser lifespan?
Up to 70,000 hours in Dimming Mode (20,000 hrs Normal / 38,000 hrs Eco).

Is it compatible with multiple lenses?
Yes—nine optional lenses (from UST to long throw) provide broad throw coverage and lens shift for challenging installs.
