BenQ X500i 4K HDR 4LED Short Throw Console Gaming Projector

Description

The BenQ X500i 4K HDR 4LED Short Throw Console Gaming Projector is an excellent choice for compact golf simulator studios and gaming rooms. With 2200 ANSI lumens, a 0.69–0.83 short-throw ratio, and 1.2× zoom, it produces large, vivid images from close range—capable of a crisp 95" image from just 1.44 m. Its 4LED light source delivers richer color volume than 3LED and lamp projectors and lasts up to 30,000 hours (Eco), eliminating lamp replacements.

Purpose-built enhancements—including HDR tone mapping, SSI Dynamic Black, and BenQ CinematicColor™—reveal lifelike detail on fairways and in dark scenes. Ultra-fast game modes (down to 4.2 ms at 1080p/240 Hz) and Auto Game Mode Recognition tailor visuals and latency for each console, while Android TV smart features keep streaming and casting simple.

Features

Short-Throw for Small Rooms
Project big from near the screen to avoid shadows and fit tight golf sim bays and gaming spaces.

4K HDR with 4LED Color Volume
HDR tone mapping plus 4LED brightness and color (up to 84% DCI-P3 / 95% Rec.709) render vibrant, accurate images.

Low-Latency Gaming Modes
Ultra-fast input lag options (as low as 4.2 ms at 1080p/240 Hz) and genre presets (FPS/RPG/SPG, HDR variants) optimize clarity and response.

Smart Convenience
Built-in Android TV (QS02), Wi-Fi, Bluetooth, and wireless casting (AirPlay/Google Cast) for easy streaming and control.

CinematicSound Audio
Dual 5 W speakers with MAXXAudio DPS create spacious, detailed sound; eARC and S/PDIF support external audio systems.

Setup Flexibility
1.2× optical zoom, 2D keystone (auto vertical ±30°, horizontal ±30°), digital zoom, and 102.5% offset simplify placement.

What’s Included

• BenQ X500i Projector
• Android TV dongle (QS02)

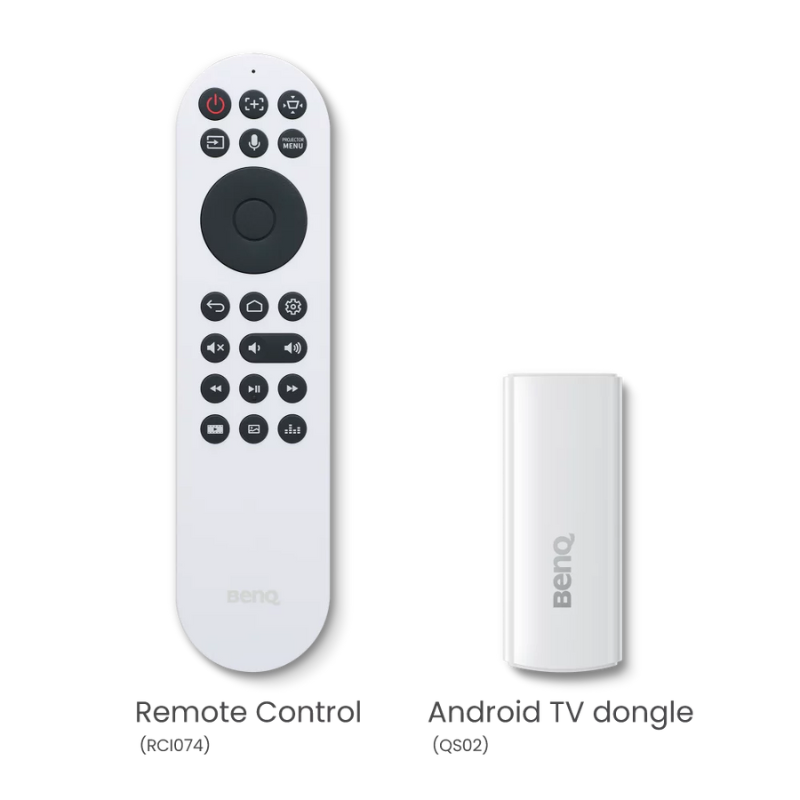

• Remote control with battery (RCI074)
• Power cord (1.8 m)
• Quick start guide (21L)
• Warranty card
• User guide

Specifications

Display

• Brightness: 2200 ANSI lumens
• Native Resolution: 4K UHD (3840 × 2160)
• Native Aspect Ratio: 16:9 (supports 16:9, 4:3)
• Contrast Ratio (FOFO, with light source dimming): up to 600,000:1
• Color Depth: 30-bit (1.07 billion colors)
• Light Source: 4LED
• Light Source Life: 20,000 hrs (Normal), 30,000 hrs (Eco)

Optical

• Throw Ratio: 0.69–0.83
• Zoom Ratio: 1.2×
• Lens: F 2.53–2.73, f 10.2–12.24 mm
• Projection Offset (full-height): 102.5%
• Keystone: 2D (Auto Vertical ±30°, Horizontal ±30°)


• DCI-P3 Coverage: 84%
• Rec.709 Coverage: 95%
• Picture Modes: 3D, Bright, Cinema, FPS, HDR FPS, HDR RPG, HDR SPG, HDR10, RPG, SPG

Gaming Performance

• Input Lag: 16.7 ms (1080p/60 Hz), 16.7 ms (2K/60 Hz downscaled), 16.7 ms (4K/60 Hz)
• 8.3 ms (1080p/120 Hz), 8.3 ms (2K/120 Hz downscaled), 4.2 ms (1080p/240 Hz)

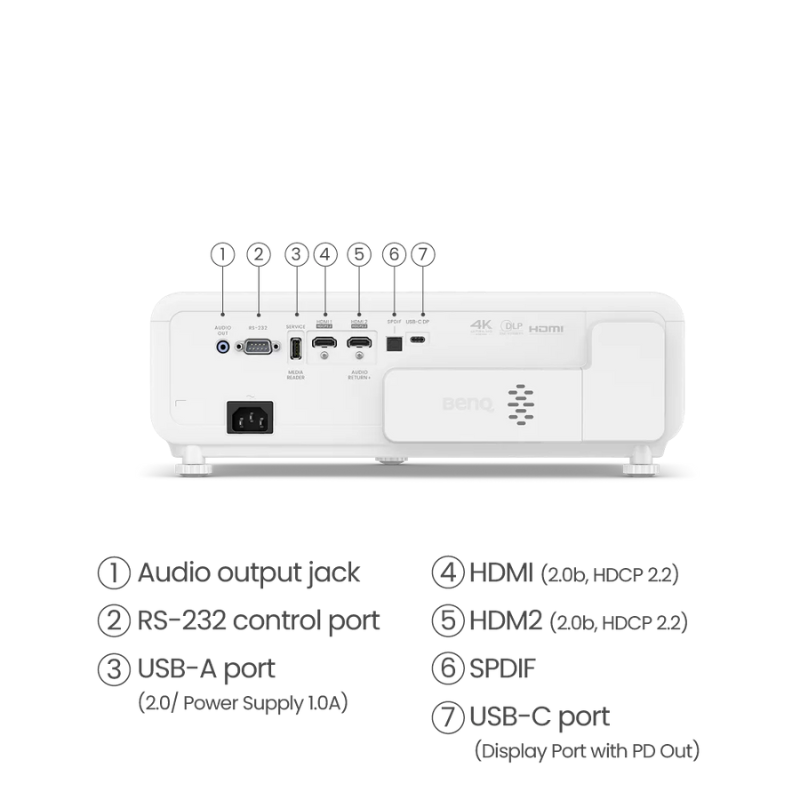

I/O Interface

• HDMI: 2 × (2.0b / HDCP 2.2)
• USB-A: 1 × (USB 2.0, power/reader/FW)
• USB-C: 1 × (DisplayPort Alt Mode, PD out 5V/1A)
• RS-232 (DB-9): 1

Audio

• Speakers: 2 × 5 W
• Audio Out: 3.5 mm
• HDMI eARC: Yes (Dolby Atmos)
• S/PDIF: Multi-channel, RAW

Environment & Power

• Operating Temperature: 0–40 ℃
• Power: AC 100–240 V, 50/60 Hz
• Typical Power (110 V): 236 W
• Standby Power: < 0.5 W

Smart System

• OS: Android 11.0
• Bluetooth: 5.0
• Wi-Fi: 802.11 a/b/g/n/ac (2.4G/5G)
• Wireless Projection: AirPlay, Google Cast
• Preloaded Apps: Netflix

Dimensions & Weight

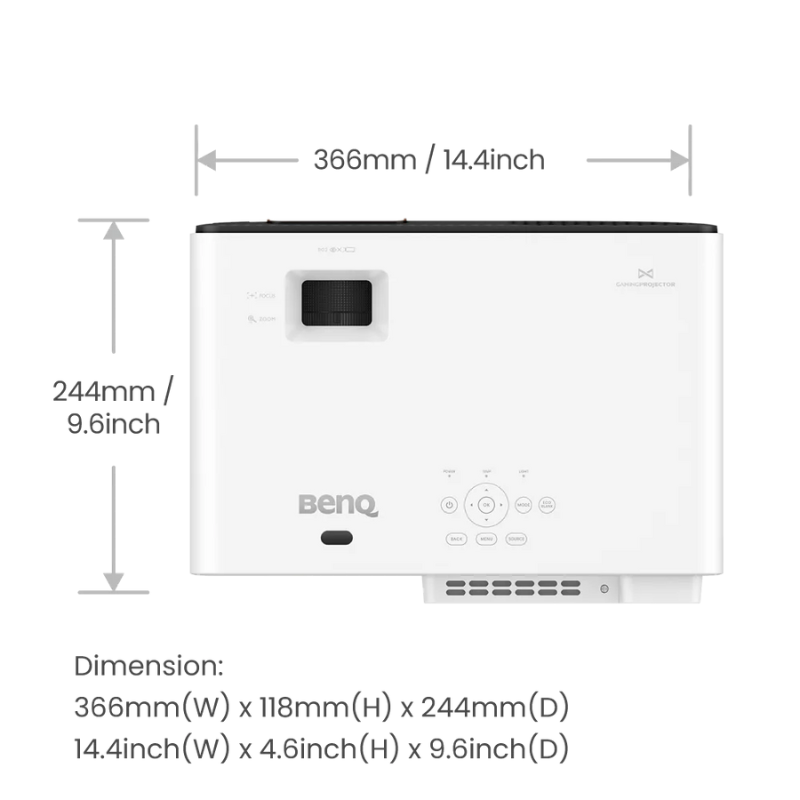

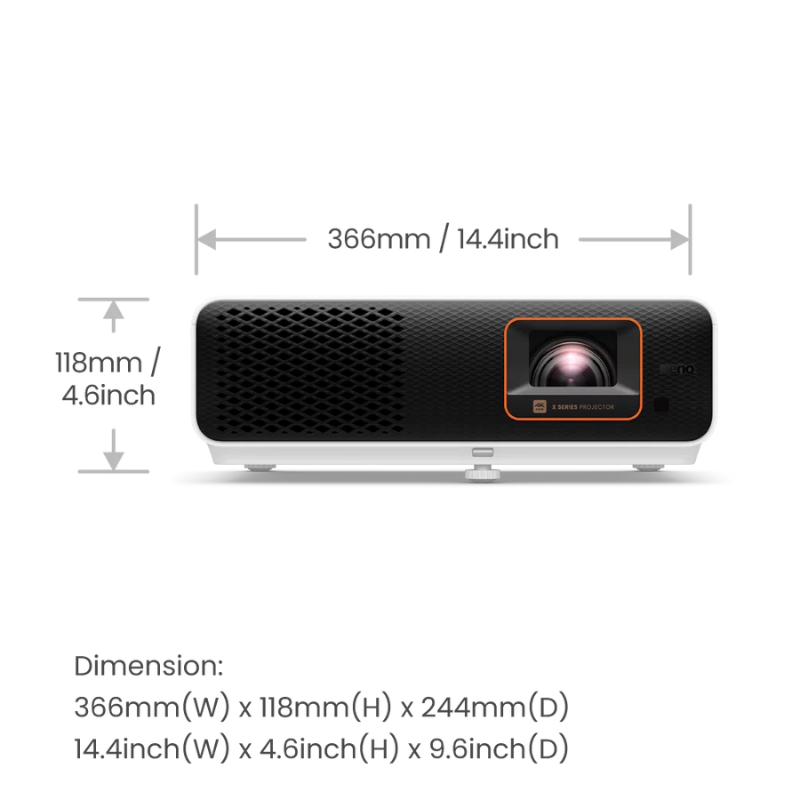

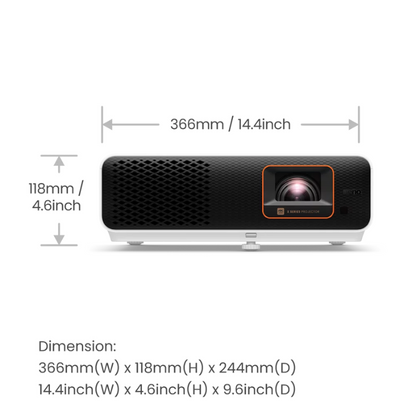

• Dimensions (W × H × D): 366 × 118 × 244 mm (14.40 × 4.64 × 9.60 in)
• Net Weight: 3.6 kg (7.93 lb)

Projection System

• Technology: DLP
