Complete Ceiling Installation Kit for Displays

Description

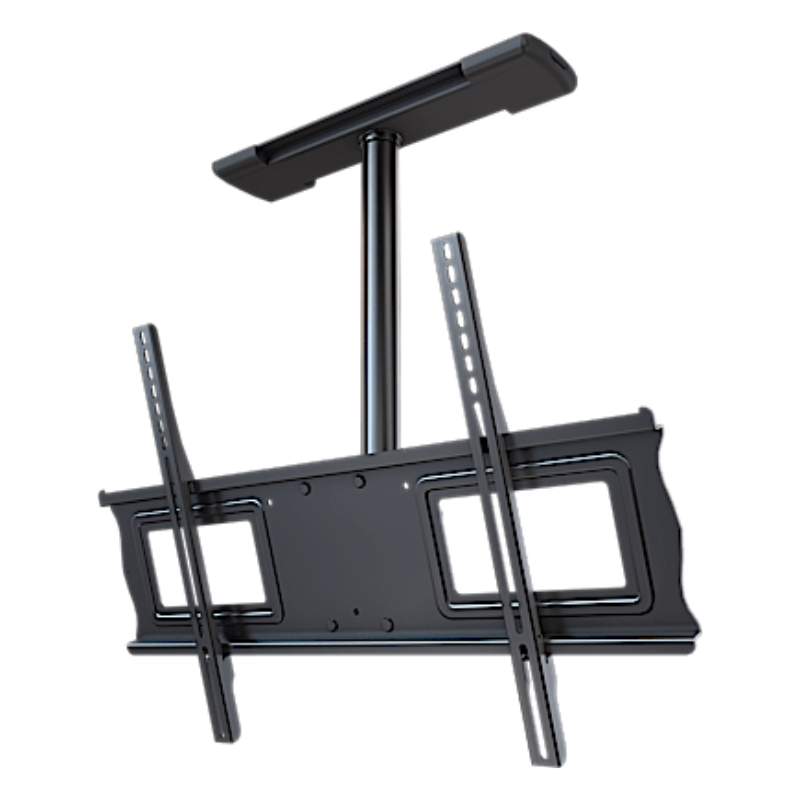

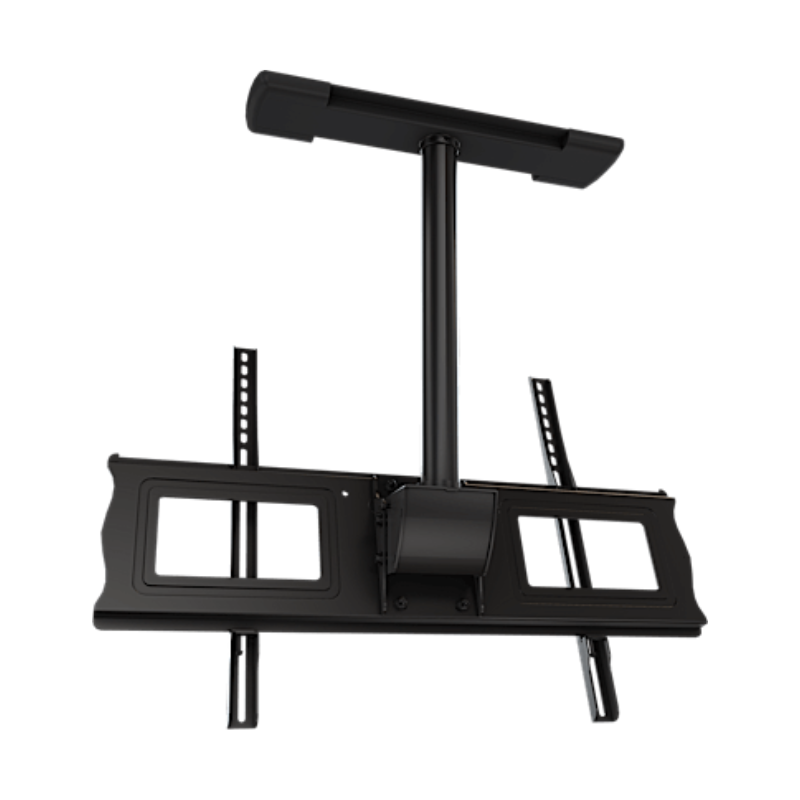

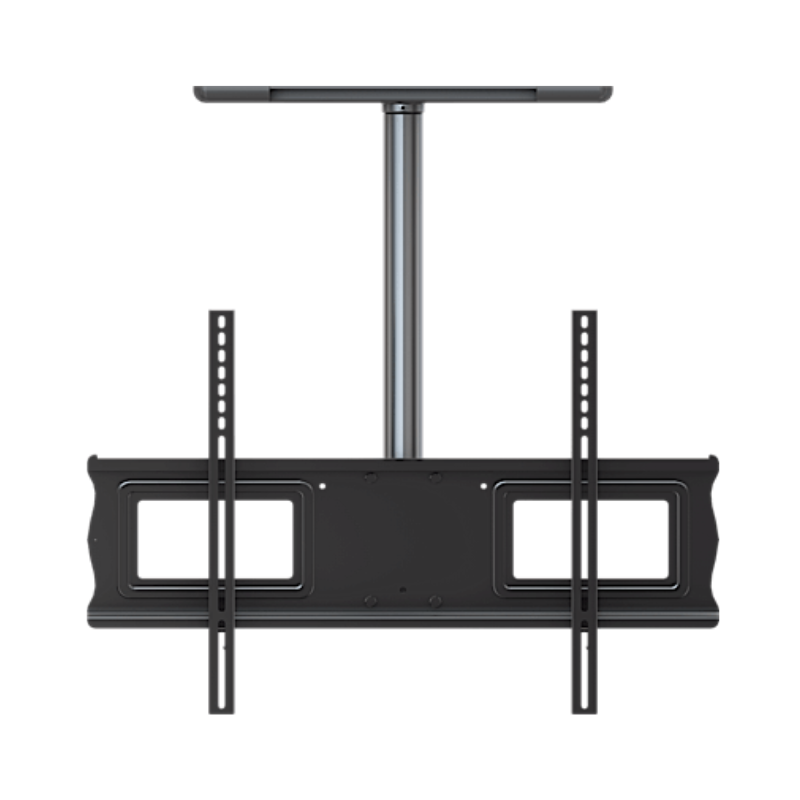

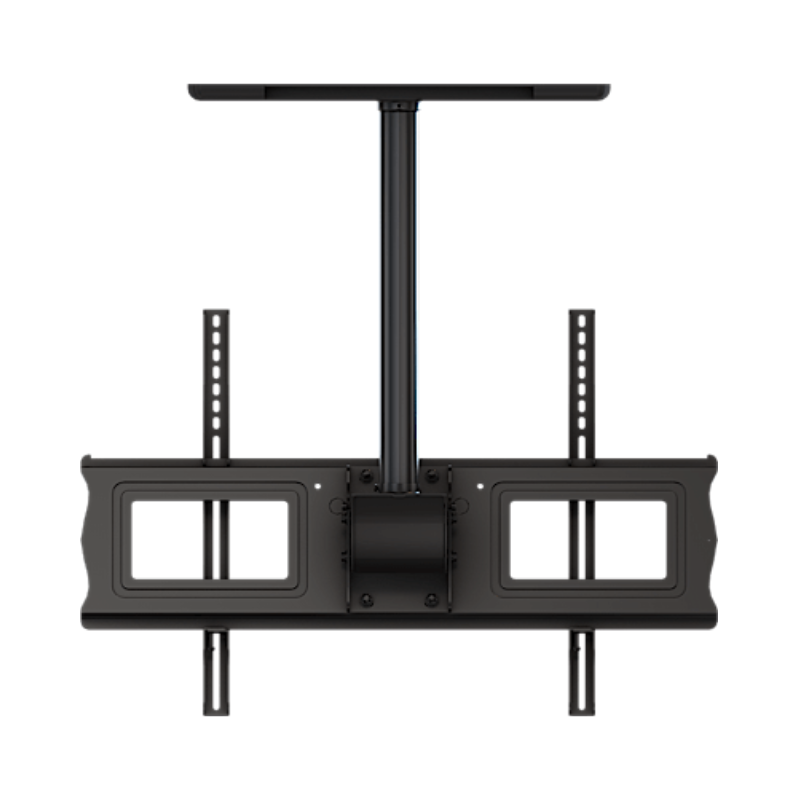

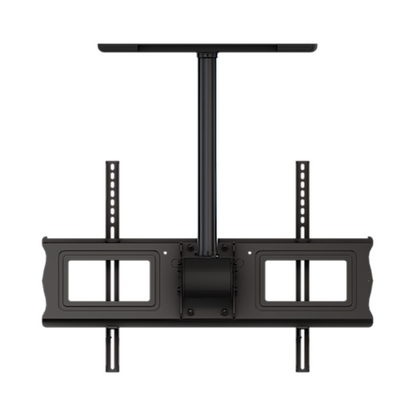

The Complete Ceiling Installation Kit for Displays provides a premium, all-in-one solution for securely mounting flat panel screens from 37" to 75"+ directly to the ceiling. Featuring a 3′ fixed drop and universal VESA compatibility, this professional-grade kit includes a universal screen adapter, a 36" extension column (E3), and a dual-joist ceiling adapter (CA2) designed for 16" centers.

Engineered for stability and style, the mount offers a 20° forward tilt and full 360° rotation for perfect screen alignment. With tool-free post-installation leveling, integrated cable management, and decorative bolt covers, it delivers a clean, modern appearance in any space. Built from high-grade cold rolled steel with a black powder-coated finish, this ceiling kit ensures strength, safety, and a professional presentation in commercial or residential installations.

What's Included

• Universal Screen Adapter
• 3′ Fixed Extension Column (E3)
• Structural Ceiling Adapter (CA2) for 16" Joist Centers
• Pre-Sorted Hardware Pack
• Decorative Ceiling Bolt Covers

Features

• Universal Design: Compatible with flat panel screens ranging from 37" to 75"+, adaptable for a wide range of applications.
• VESA Compatible: Supports multiple mounting patterns up to 723x501mm for maximum flexibility.
• Fixed 36" Drop: Provides a secure 3′ drop length for stable, professional mounting.

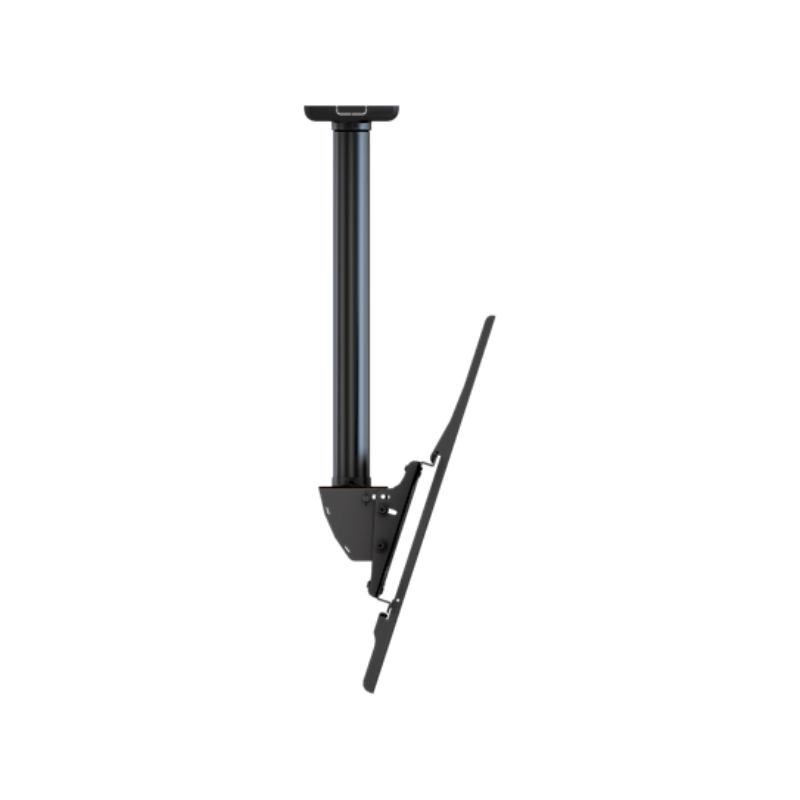

• 20° Tilt & 360° Rotation: Allows continuous forward tilt and full rotation for precise screen positioning.
• Pin-Locking Tilt Adjustment: Incremental locking system ensures stable and repeatable positioning.
• Tool-Free Leveling: Post-installation leveling allows adjustments without tools.
• Integrated Cable Management: Through-column routing keeps wires hidden for a neat appearance.
• Decorative Finish: Includes bolt covers for a clean, polished look.
• Durable Construction: Made from high-grade cold rolled steel with a black scratch-resistant powder coat.
• Easy Installation: Includes a complete hardware kit and dual-joist adapter for 16" spacing.

Specifications

• TV Size Range: 37" – 75"+
• Weight Capacity: 200 lbs (91 kg)
• Max Mounting Pattern: 723 x 501 mm
• VESA Mounting Patterns: 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm
• Tilt: +20° / -0°
• Roll (Side to Side): 6° tool-less screen leveling
• Rotation (Yaw): 360°
• Drop Length: 36"
• Height Adjustment: 1" increments
• 1.5" NPT Thread Compatibility: Yes
• Mounting Surface: Wood joist, structural wood, or structural concrete (HE4 accessory required)
• Joist Spacing: Dual joist on 16" centers
• Construction: High-grade cold rolled steel
• Finish: Scratch-resistant epoxy powder coat
• Product Weight: 29.4 lbs (13.3 kg)
• Package Dimensions: 39" (H) × 12" (W) × 9" (D)
• Color: Black
• Model Number: C63-36
• UPC: 0815885010811
• Warranty: 10 years
