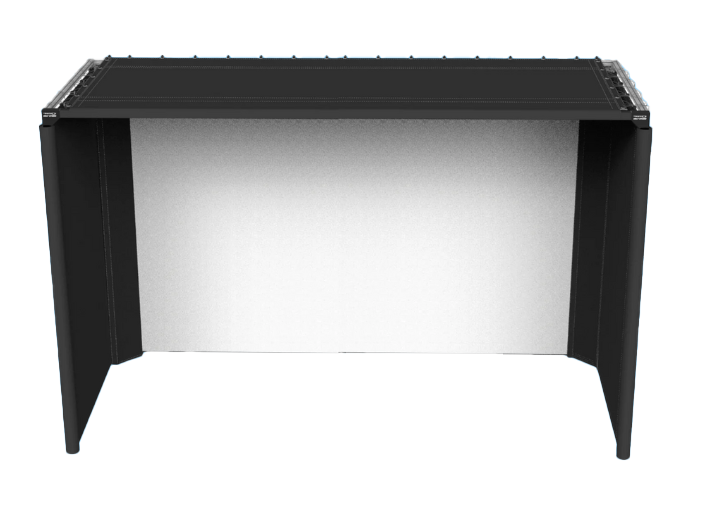

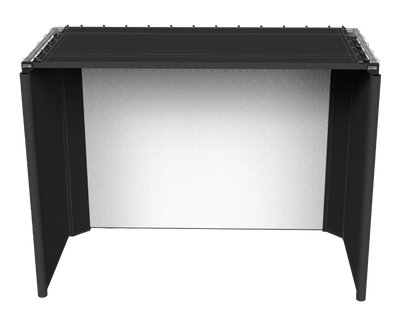

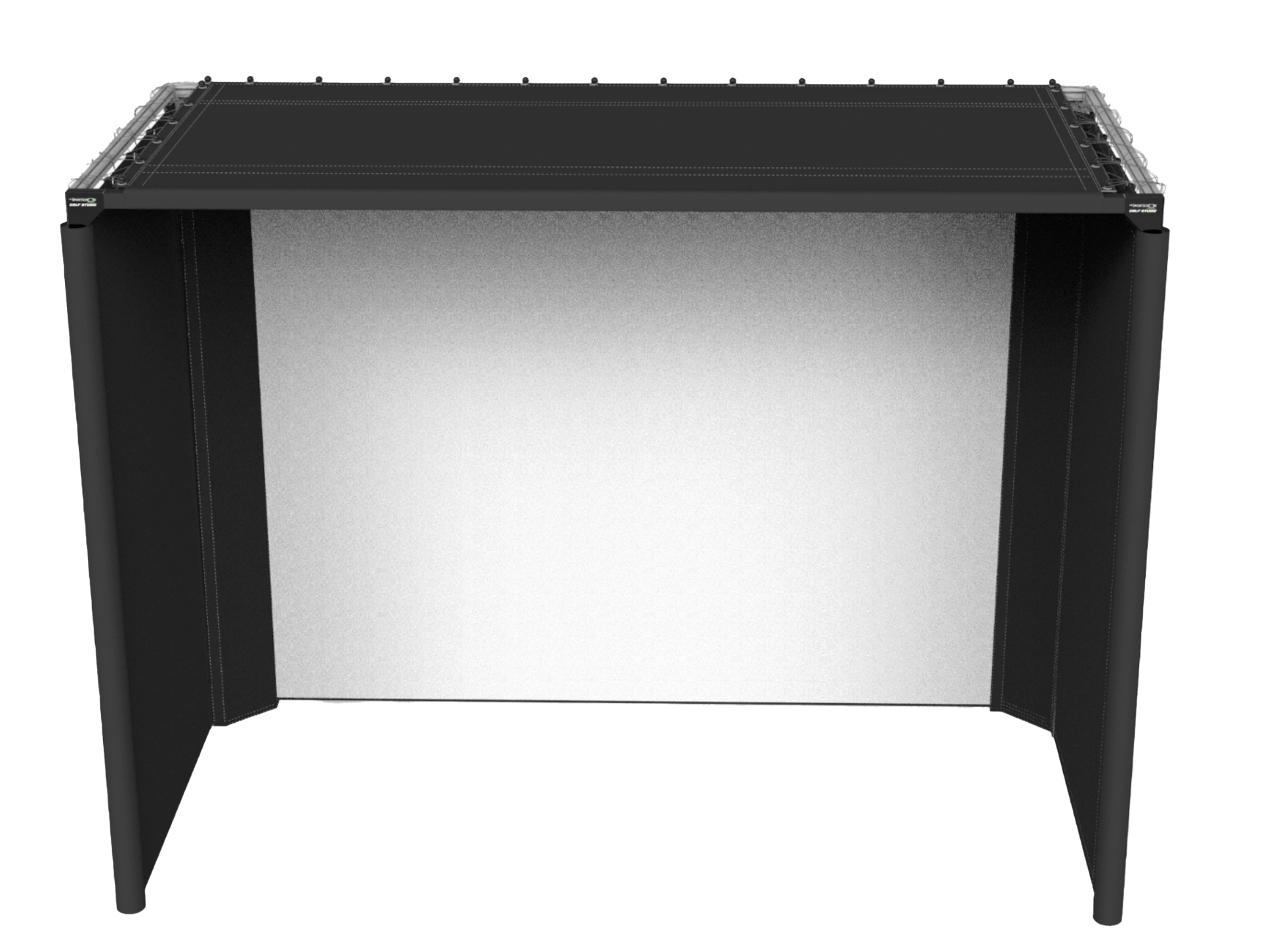

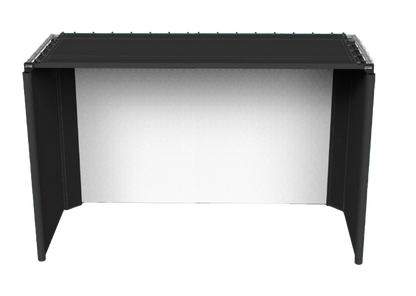

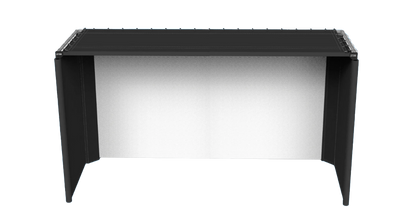

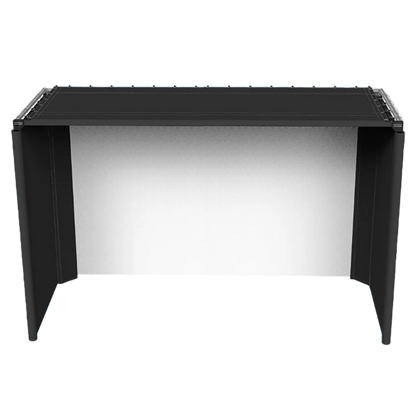

The SportScreen Parlour Series Freestanding Golf Enclosure

Description

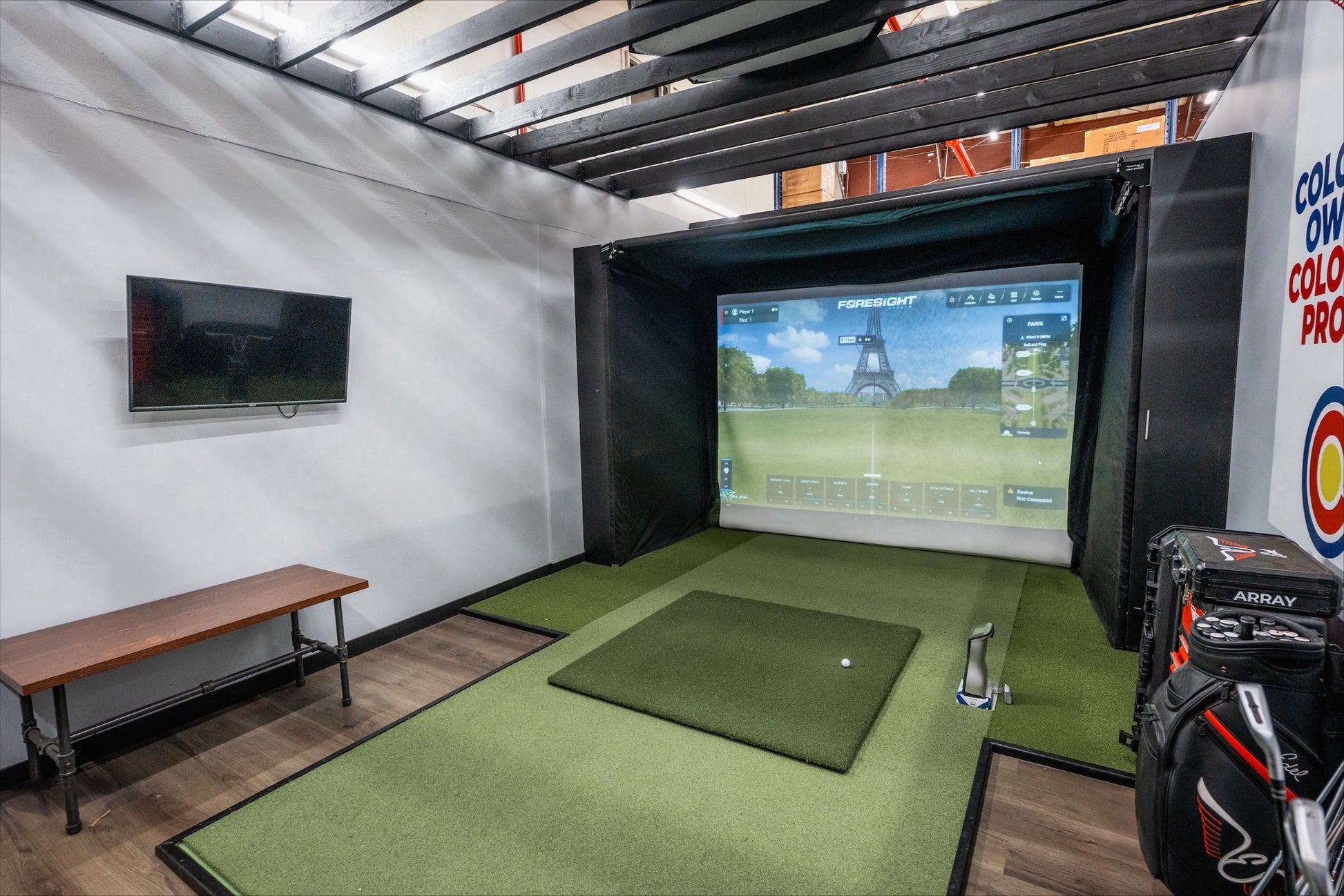

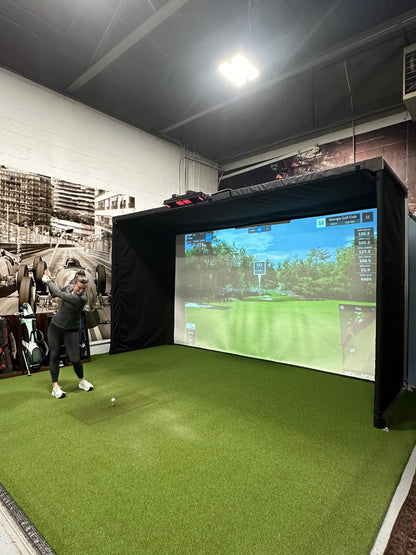

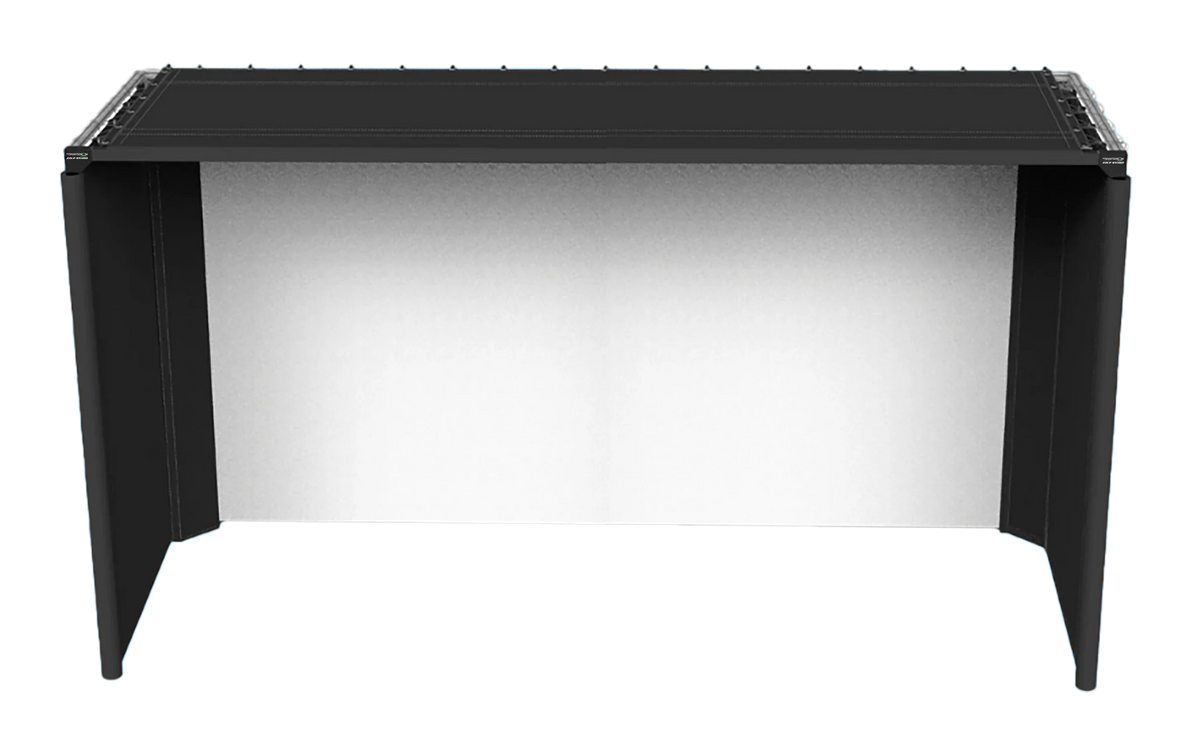

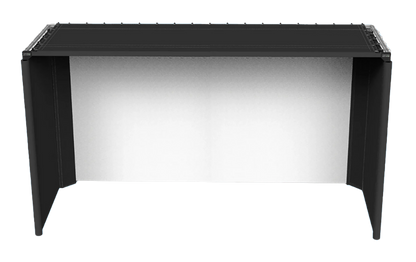

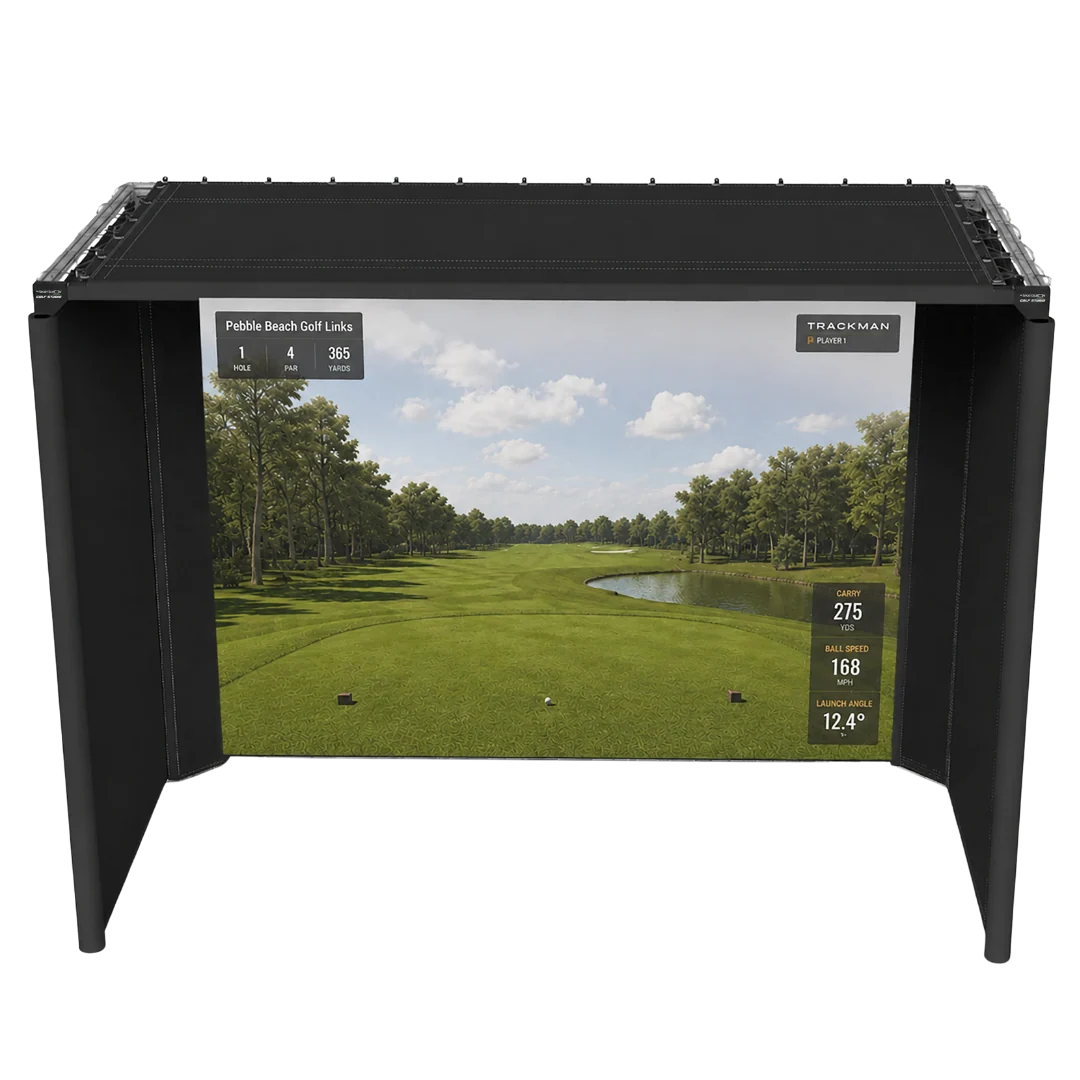

The SportScreen Parlour Series Freestanding Golf Simulator Enclosure is a premium, fixed solution for the ultimate indoor golf practice facility. Designed for golf enthusiasts who demand a professional and immersive experience, the Parlour Series combines durable, heavy-duty construction with a sleek, modern design to elevate any space.

Unlike flimsy metal piping alternatives, the Parlour Series is built around a robust 4040 aluminum structure that ensures incredible longevity and stability. Despite its strength, the lightweight aluminum frame makes assembly straightforward and manageable. Because it is completely freestanding, no drilling into your walls or ceilings is required, making it an ideal choice for both home simulators and commercial golf spaces.

The enclosure adapts to fit your specific needs with multiple standard sizes and customizable options, supporting ideal screen displays in both 4:3 and 16:9 aspect ratios. For an even cleaner setup, an optional frame-mounted launch monitor bracket kit is available, designed specifically to integrate seamlessly with the frame structure for a space-saving overhead mount.

Features

Freestanding Aluminum Frame
Constructed from robust 4040 aluminum for maximum strength and longevity. The freestanding design means absolutely no drilling into your walls or ceilings is required for setup.

Choice of Impact Screen
Select the standard 1-ply impact screen for a great entry-level experience, or upgrade to the premium 3-ply screen for superior image quality, noise reduction, and long-lasting durability.

Total Enclosure Protection
Comes fully equipped with a blackout rear support membrane, a ceiling panel, deep side screens, and protective baffles to ensure every errant shot is safely contained within the bay.

Optimized Aspect Ratios
Designed to provide perfect 4:3 or 16:9 aspect ratios depending on the model, ensuring your projected simulator software fills the screen beautifully without wasted space.

Lifetime Frame Warranty
Play with absolute confidence knowing the structural aluminum frame is backed by a lifetime warranty, alongside a 2-year limited warranty on all additional components and fabrics.

What's Included

• Freestanding Aluminum Frame Structure
• 1 Rear Impact Support Membrane / Blackout Screen
• 2 Side Screens
• Choice of 1 or 3 Ply Impact Screen
• 1 Ceiling Panel
• 2 Corner Pieces
• 2 Side Baffles
• 1 Front Baffle
• Hardware for Assembly

*Please Note: Launch monitor, computer, turf, hitting mat, and projector are not included.

Specifications

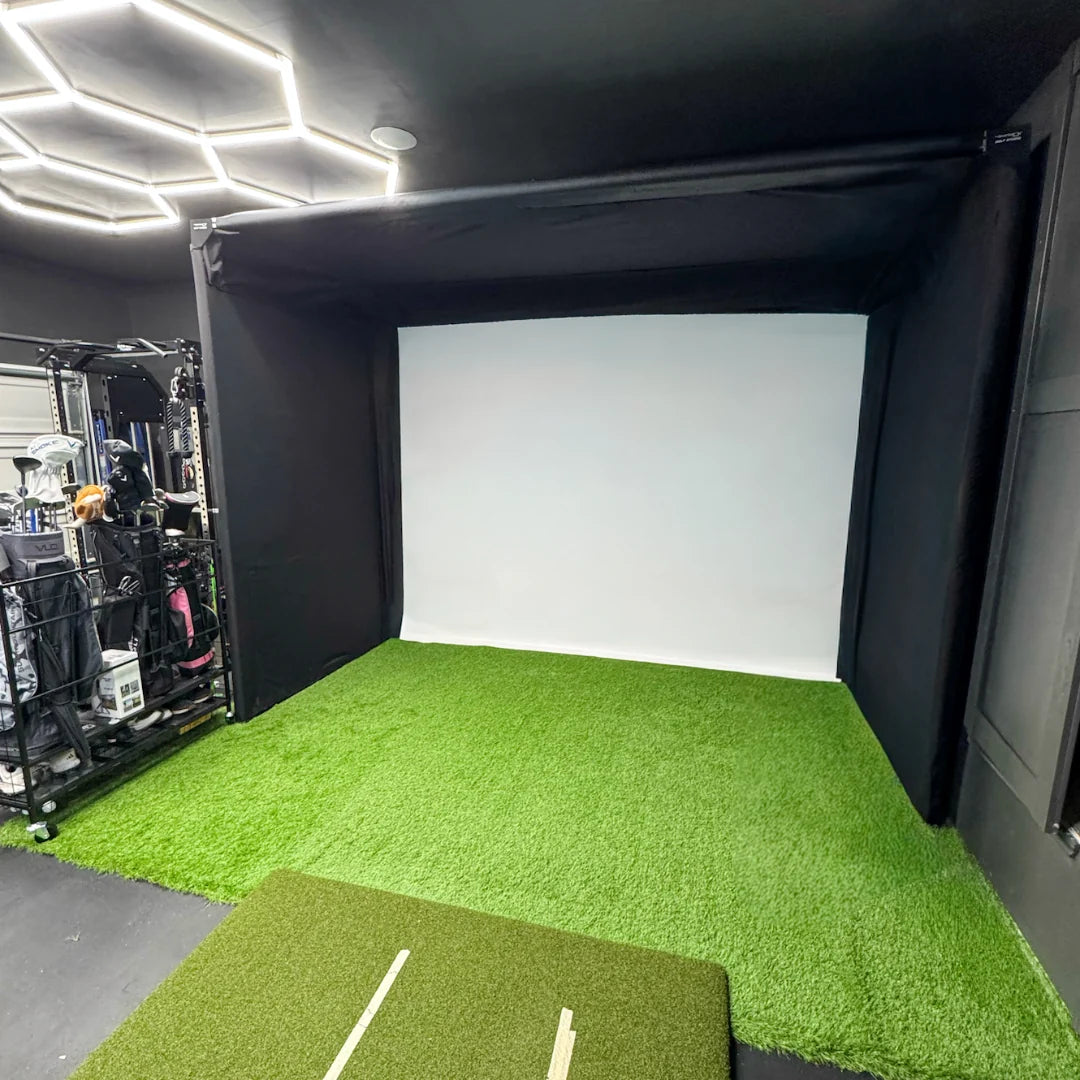

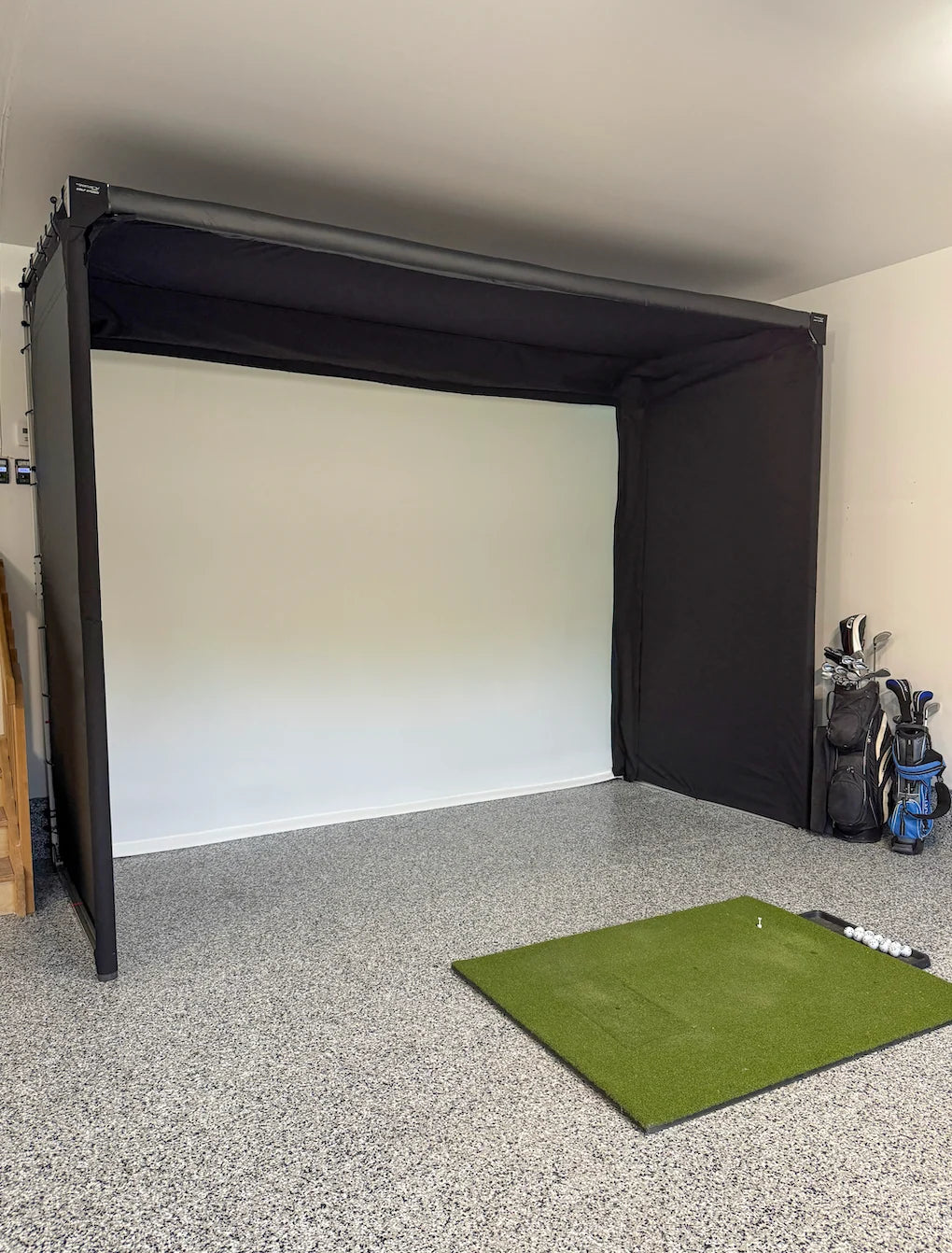

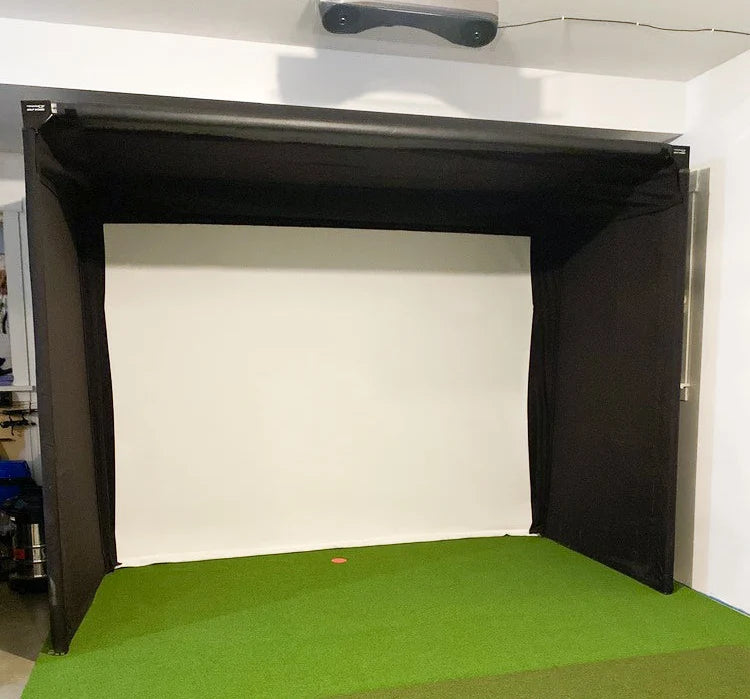

Parlour 11

• Dimensions: 136"W x 102"H x 66"D
• Projection Ratio: 4:3
• Projectable Area: 120"W x 90"H
• Materials: Durable, construction-grade mesh enclosure
• Frame: 4040 aluminum for strength and longevity
• Space Requirements: Allow for 8" - 12" of space behind the enclosure
• Required Minimum Room Dimensions: 144"W x 108"H x 204"D
• Recommended Minimum Room Dimensions: 150"W x 111"H x 204"D
• Installation: No drilling required for setup
• Warranty: Lifetime frame warranty; 2-year limited warranty on additional components

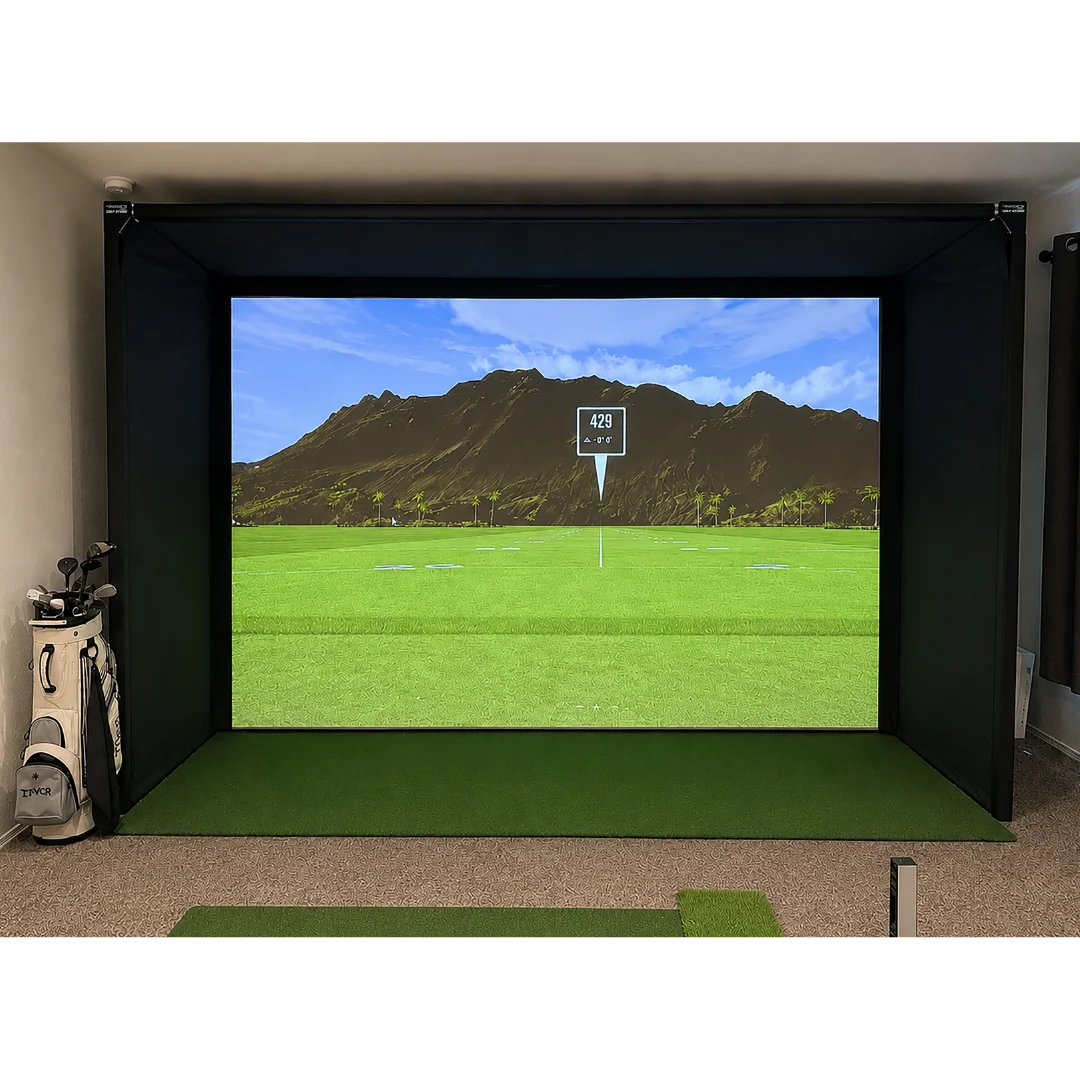

Parlour 13H

• Dimensions: 151"W x 114"H x 66"D
• Projection Ratio: 4:3
• Projectable Area: 138"W x 103"H
• Materials: Durable, construction-grade mesh enclosure
• Frame: 4040 aluminum for strength and longevity
• Space Requirements: Allow for 8" - 12" of space behind the enclosure
• Required Minimum Room Dimensions: 160"W x 120"H x 204"D
• Recommended Minimum Room Dimensions: 166"W x 123"H x 204"D
• Installation: No drilling required for setup
• Warranty: Lifetime frame warranty; 2-year limited warranty on additional components

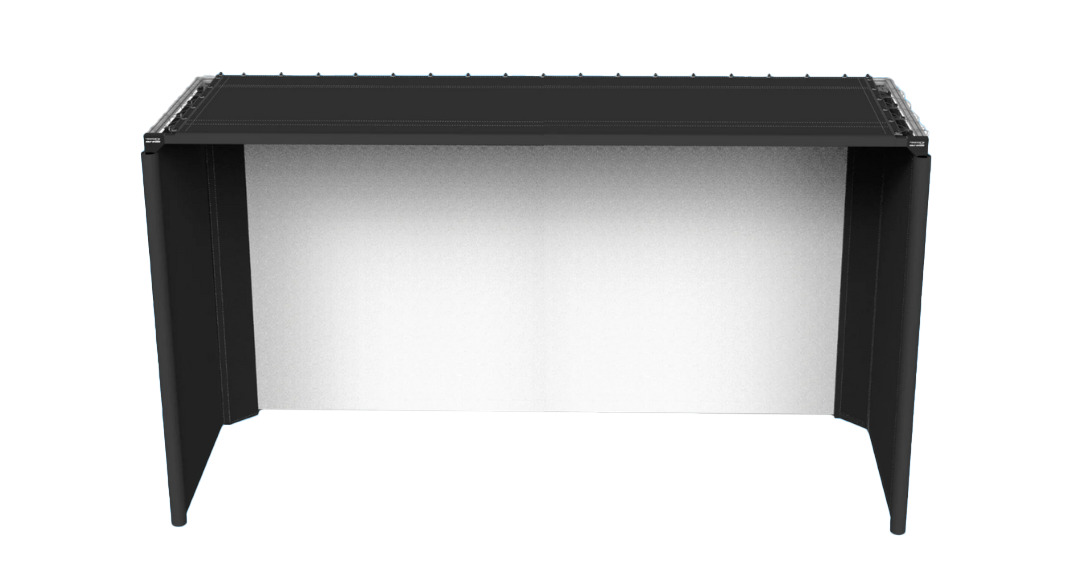

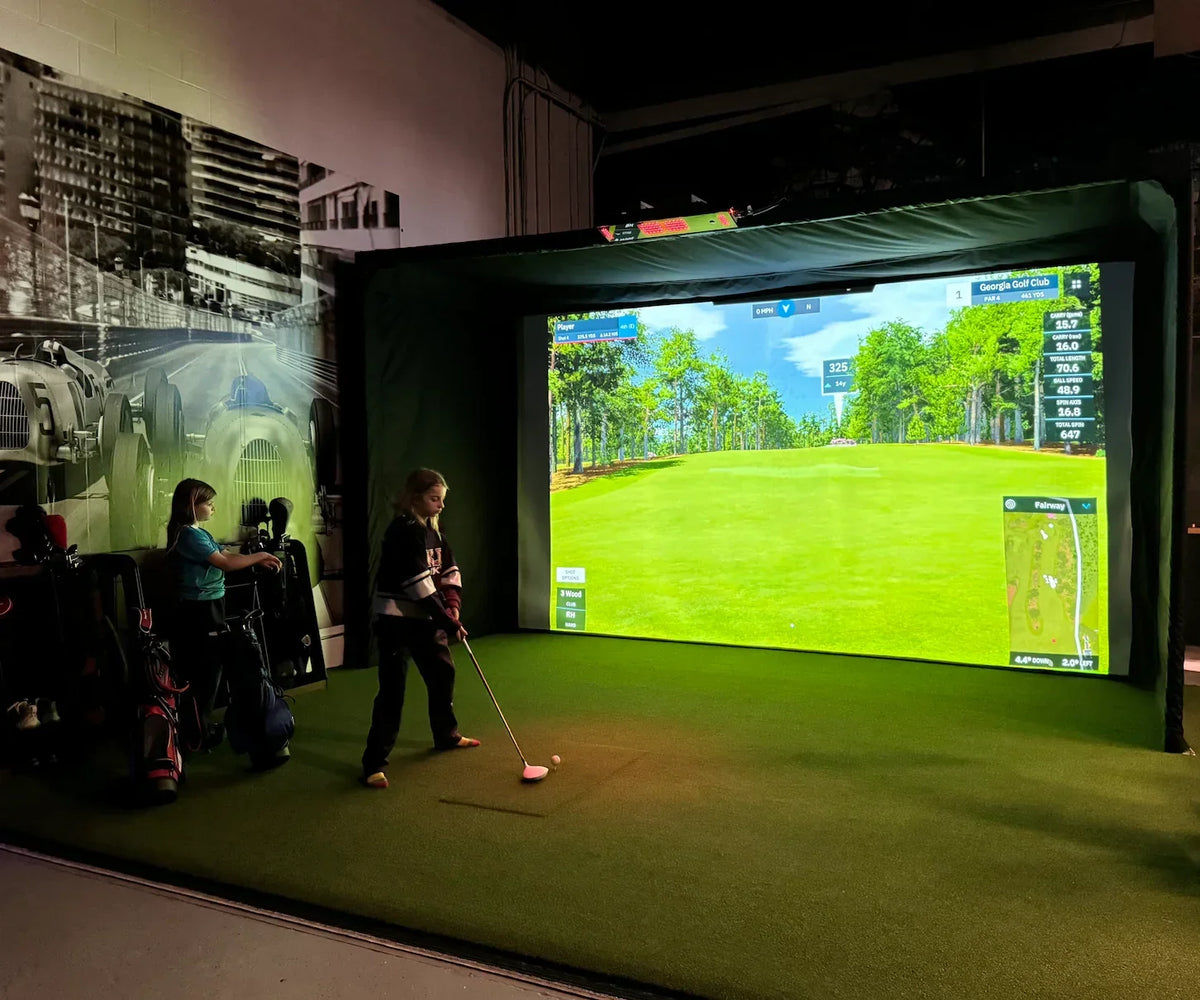

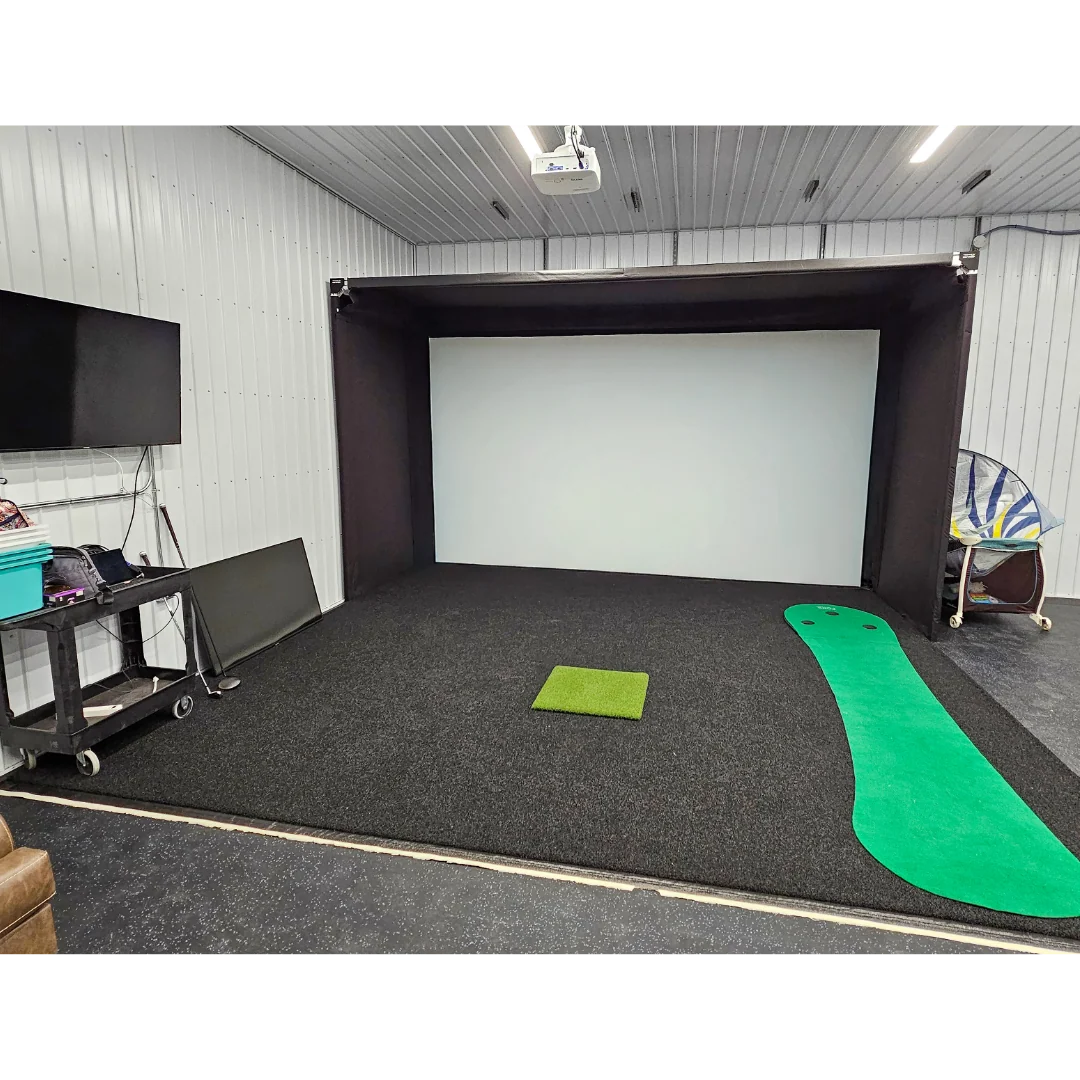

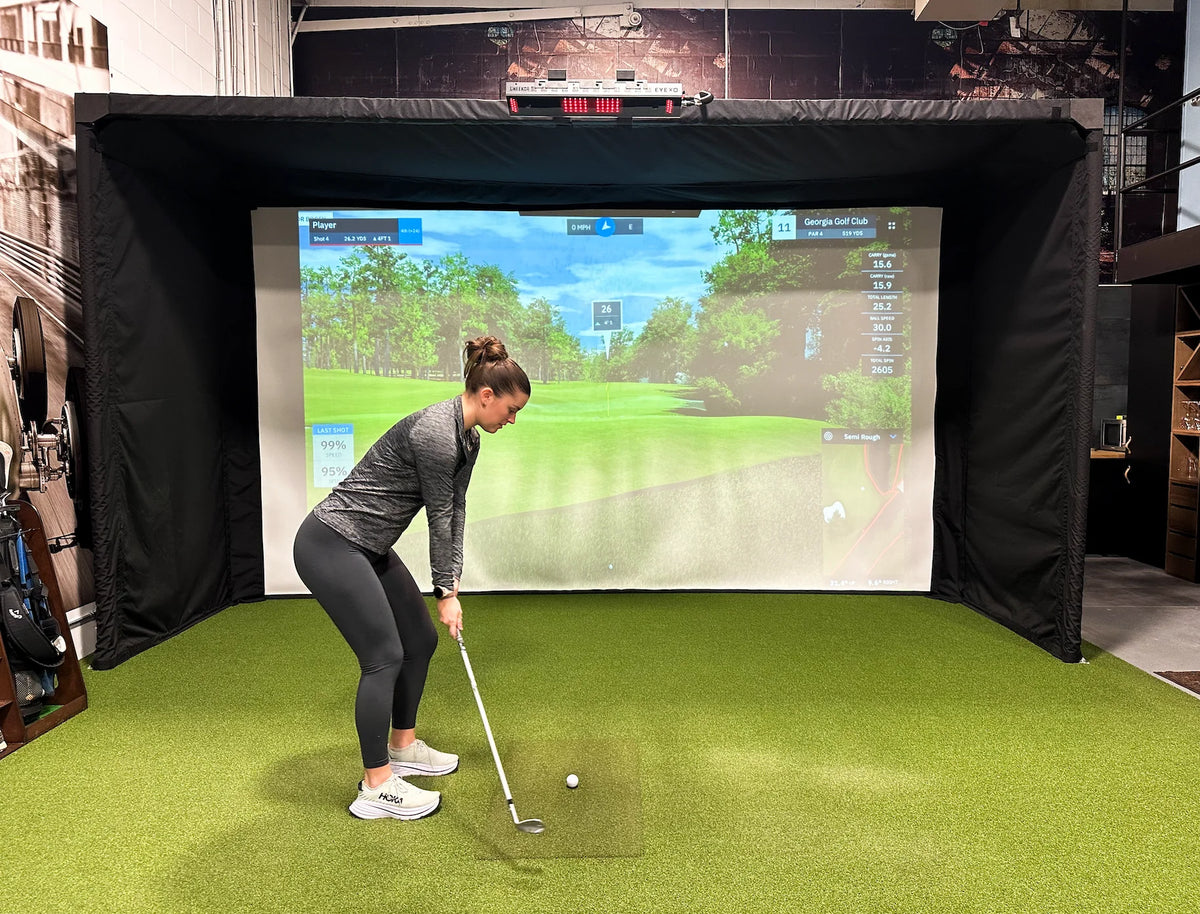

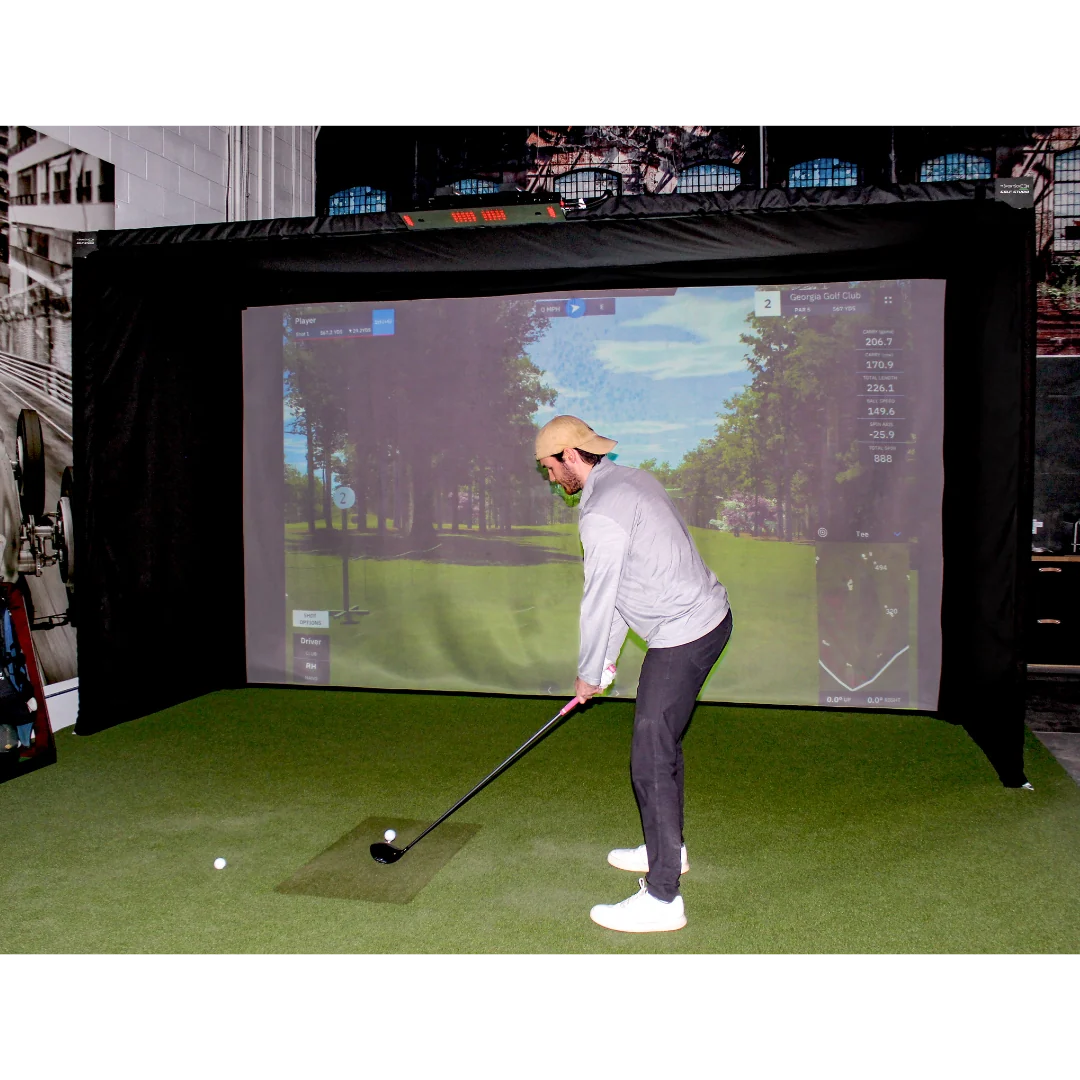

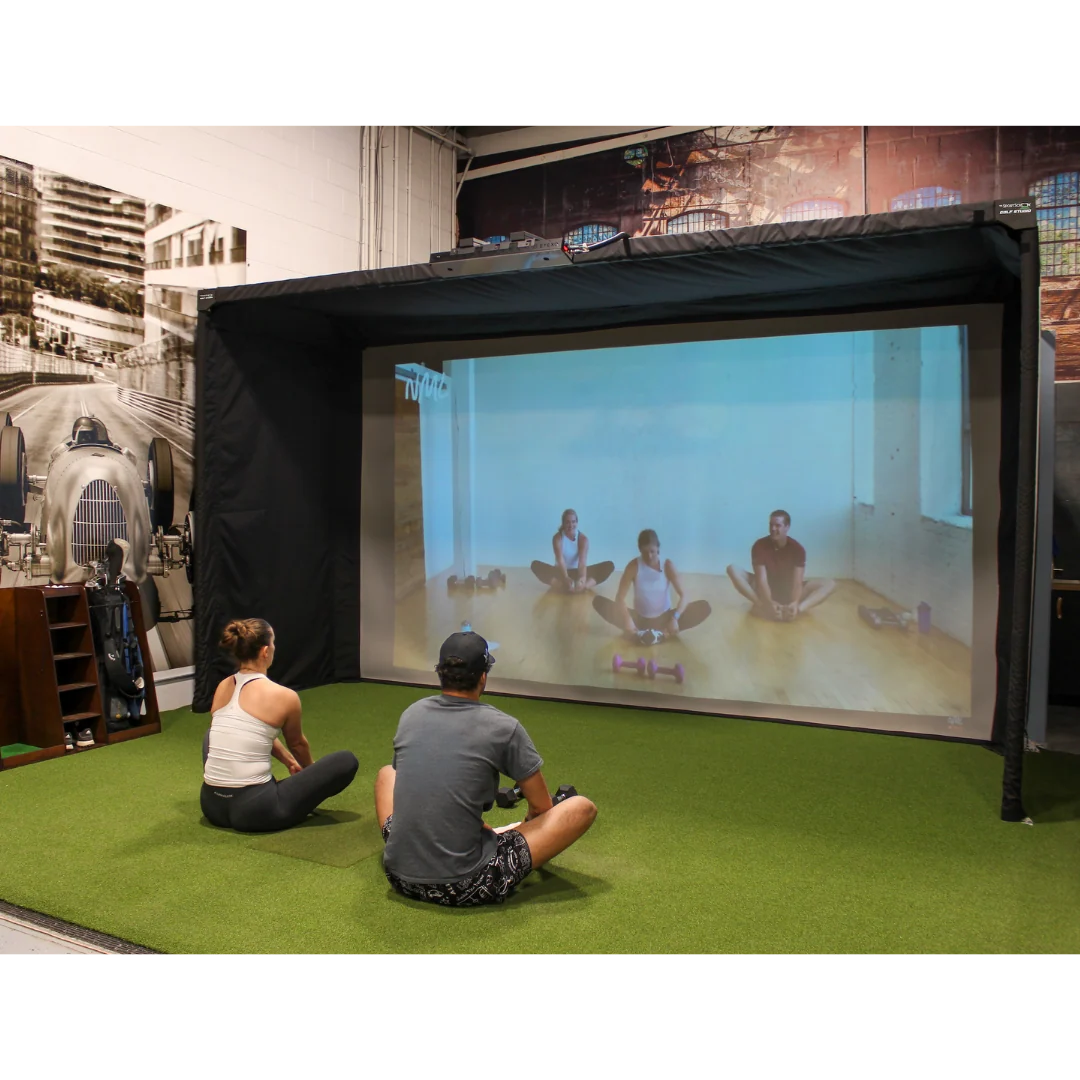

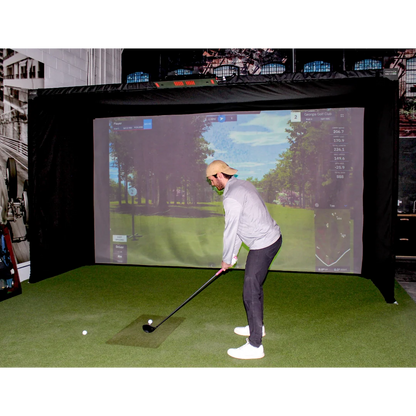

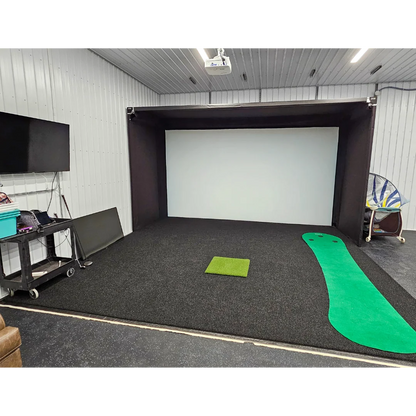

Parlour 16H

• Dimensions: 198"W x 114"H x 66"D
• Projection Ratio: 16:9
• Projectable Area: 183"W x 103"H
• Materials: Durable, construction-grade mesh enclosure
• Frame: 4040 aluminum for strength and longevity
• Space Requirements: Allow for 8" - 12" of space behind the enclosure
• Required Minimum Room Dimensions: 204"W x 120"H x 204"D
• Recommended Minimum Room Dimensions: 210"W x 123"H x 204"D
• Installation: No drilling required for setup
• Warranty: Lifetime frame warranty; 2-year limited warranty on additional components

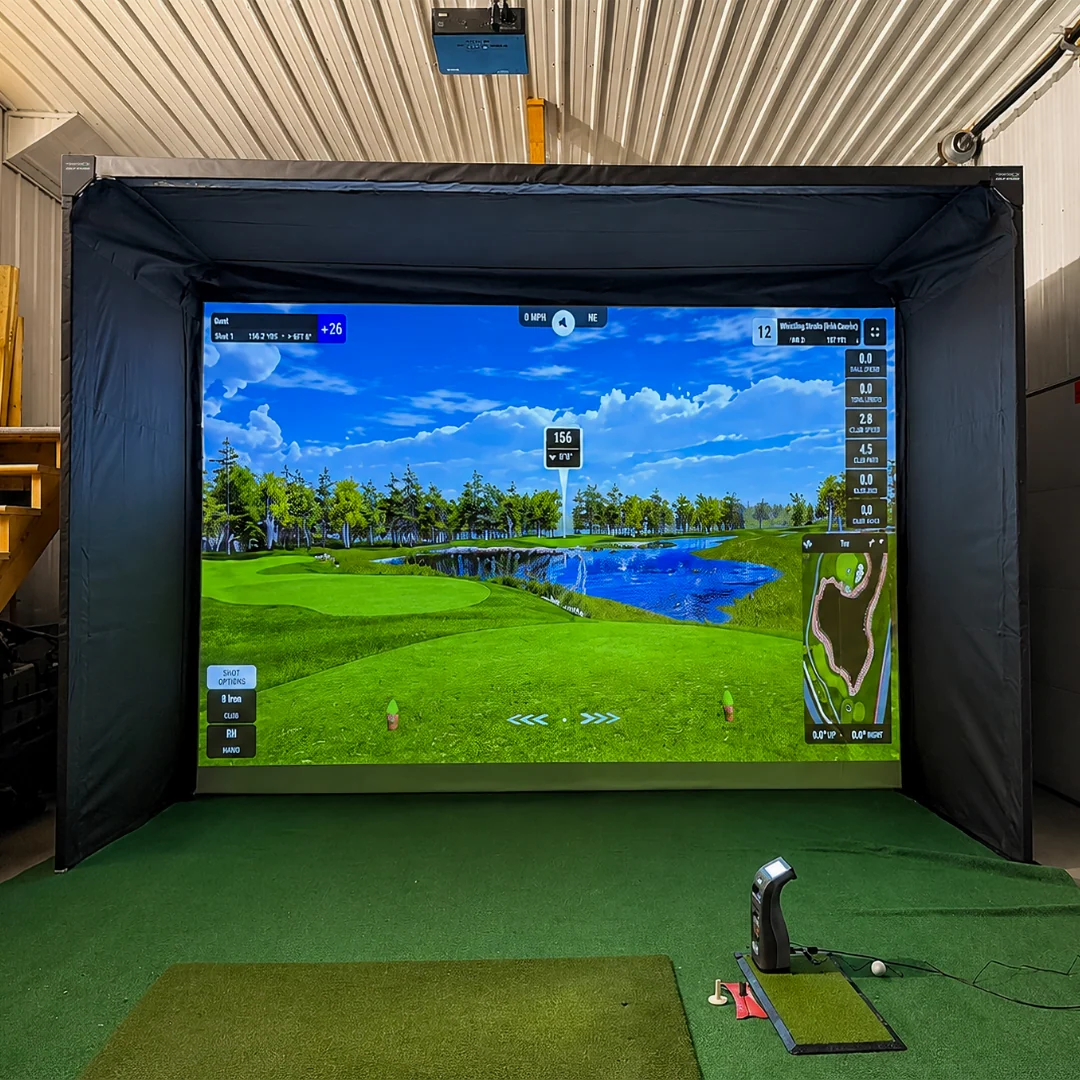

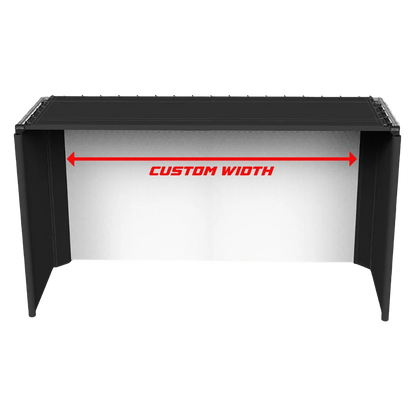

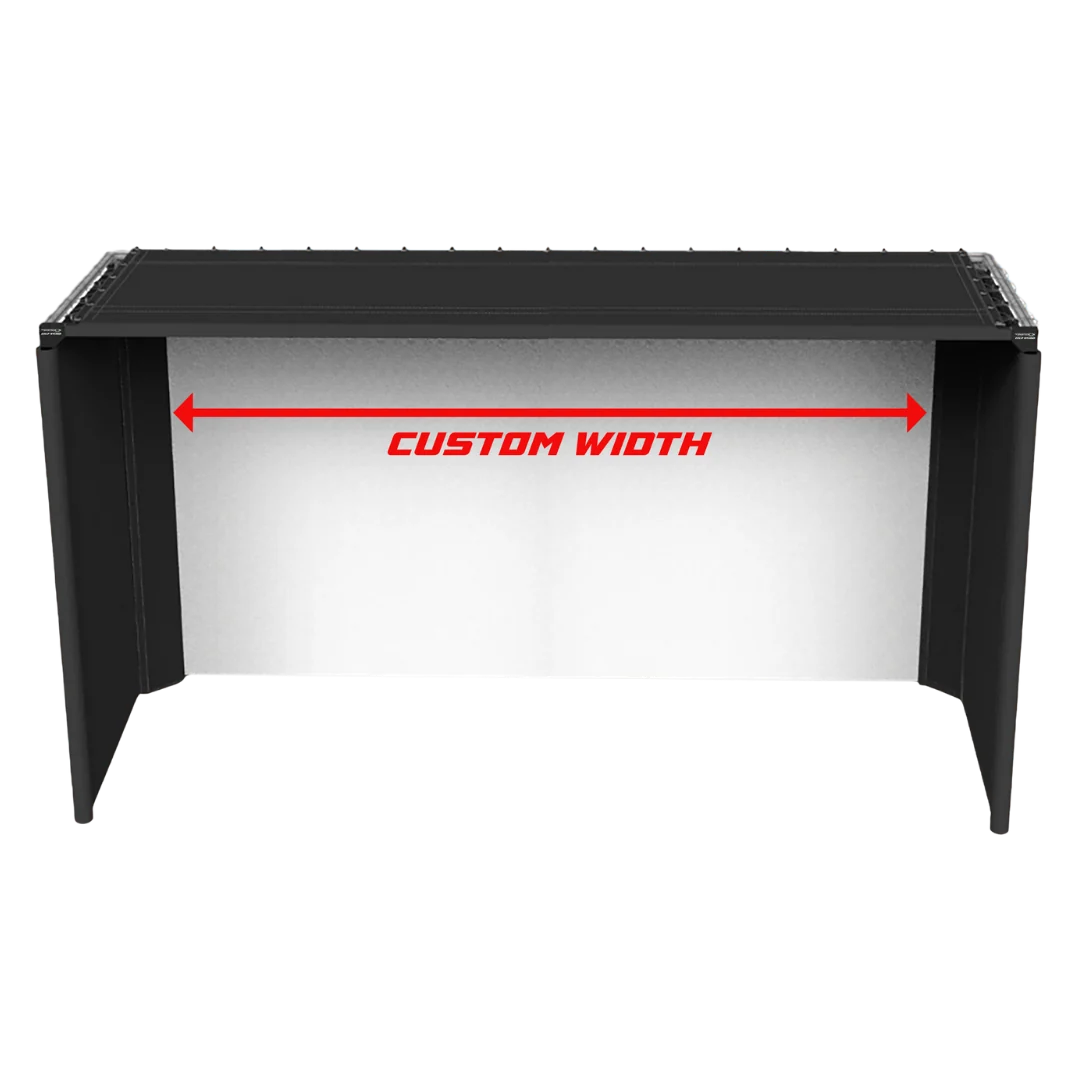

Custom Sizes

• Custom configurations available upon request (max width: 16 ft)
• 2-foot height extensions offered for taller ceilings

Installation

Parlour Series 11 Manual

Parlour Series 13H Manual
