The SportScreen Vanish Series Retractable Golf Enclosure

Description

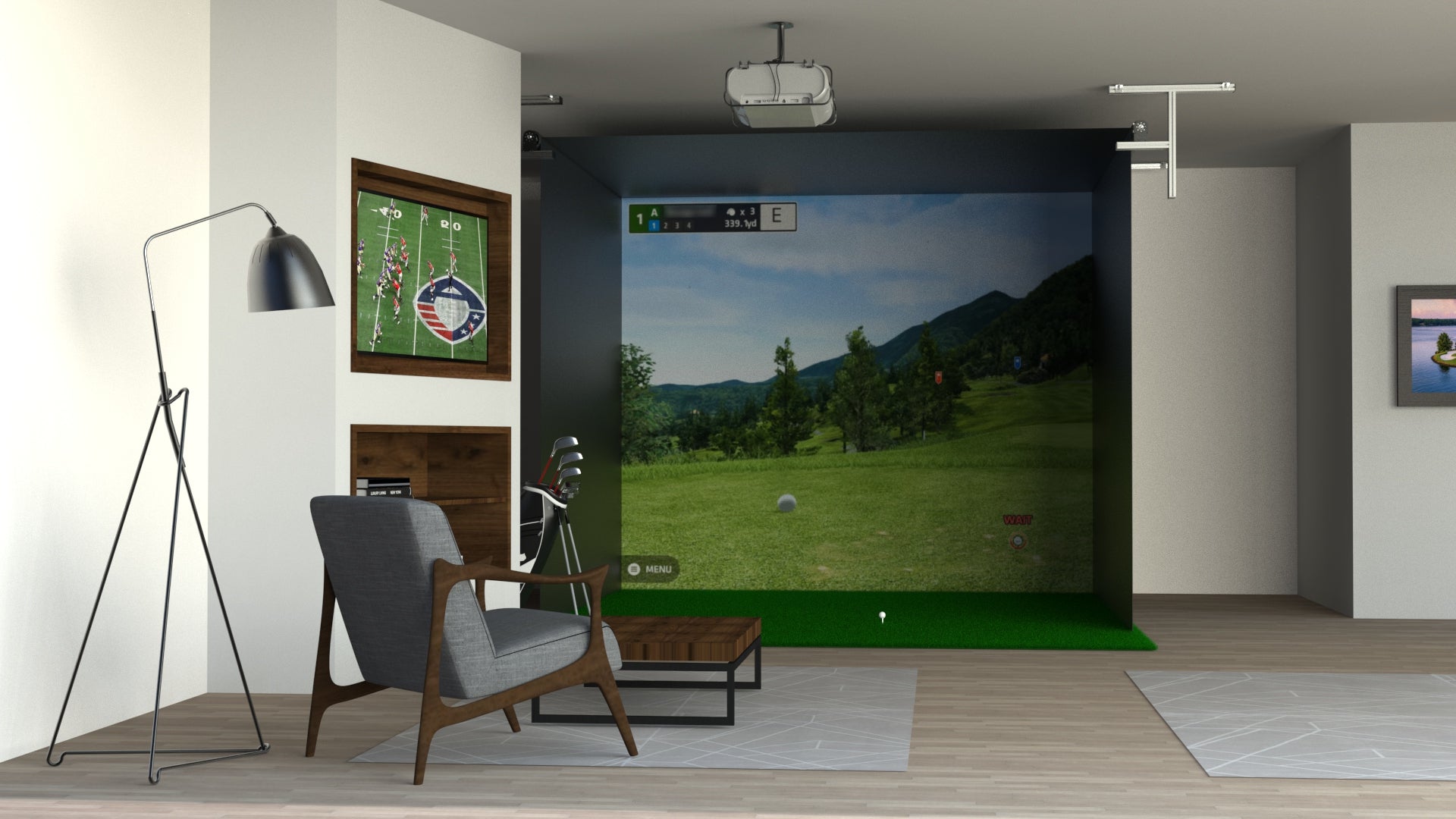

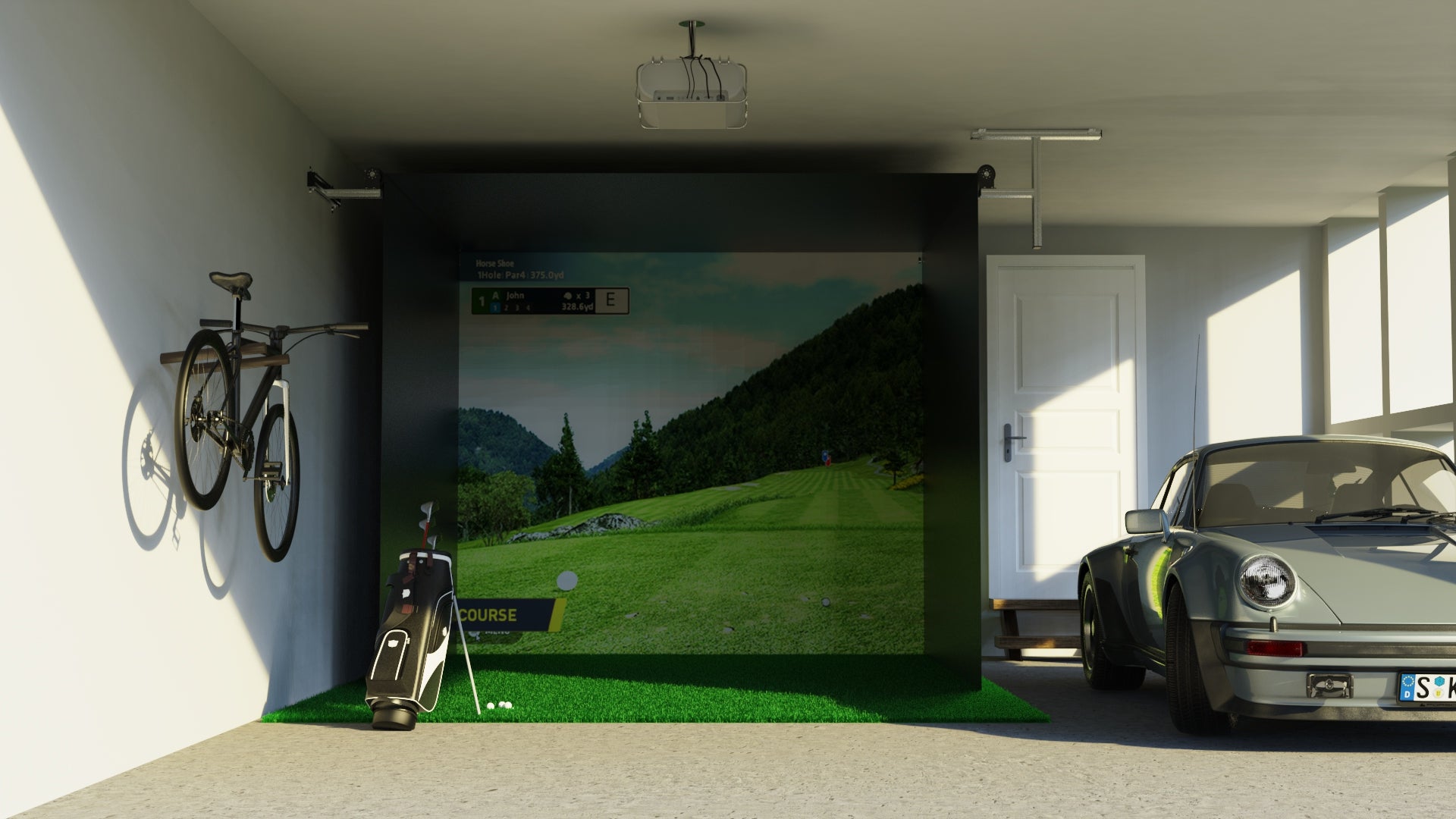

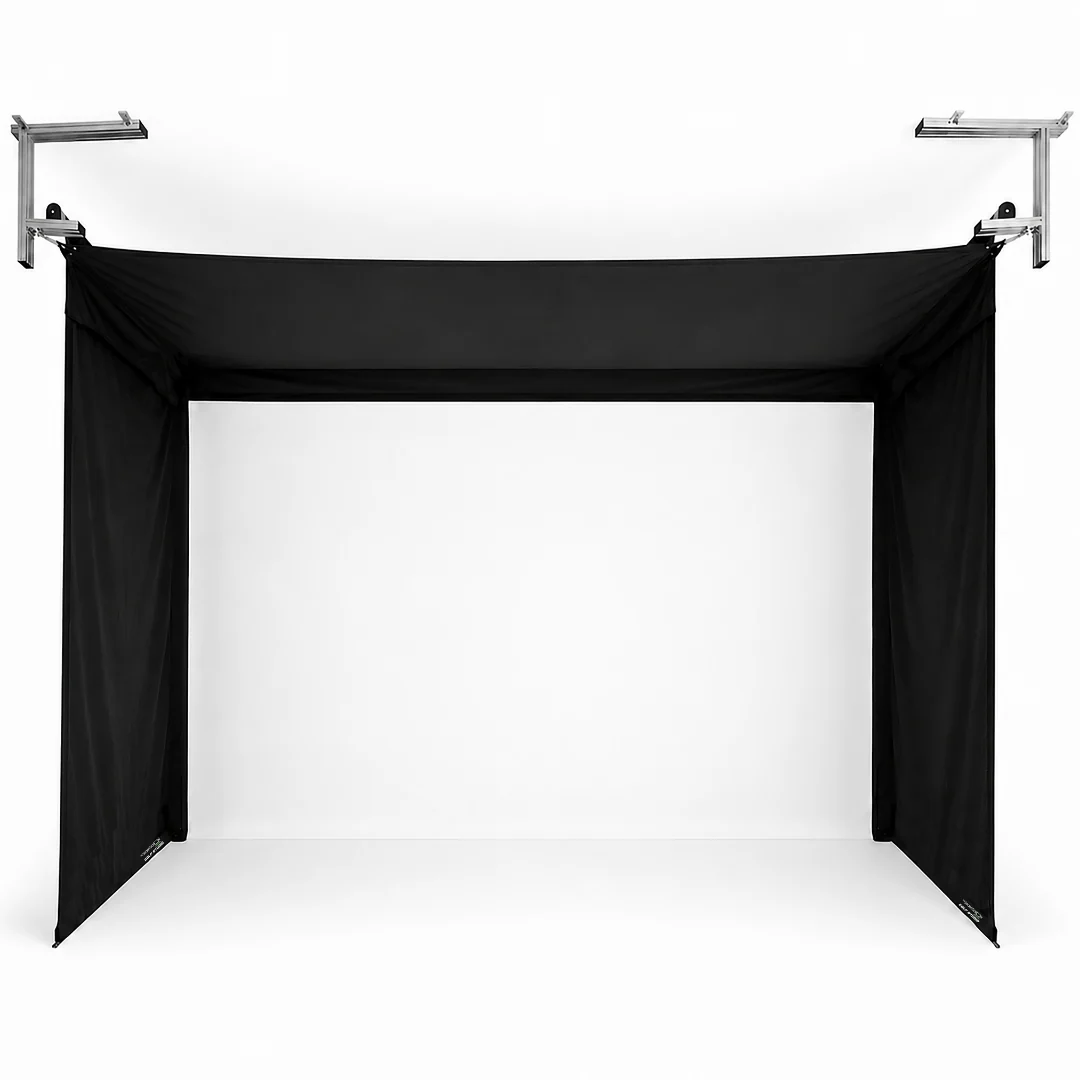

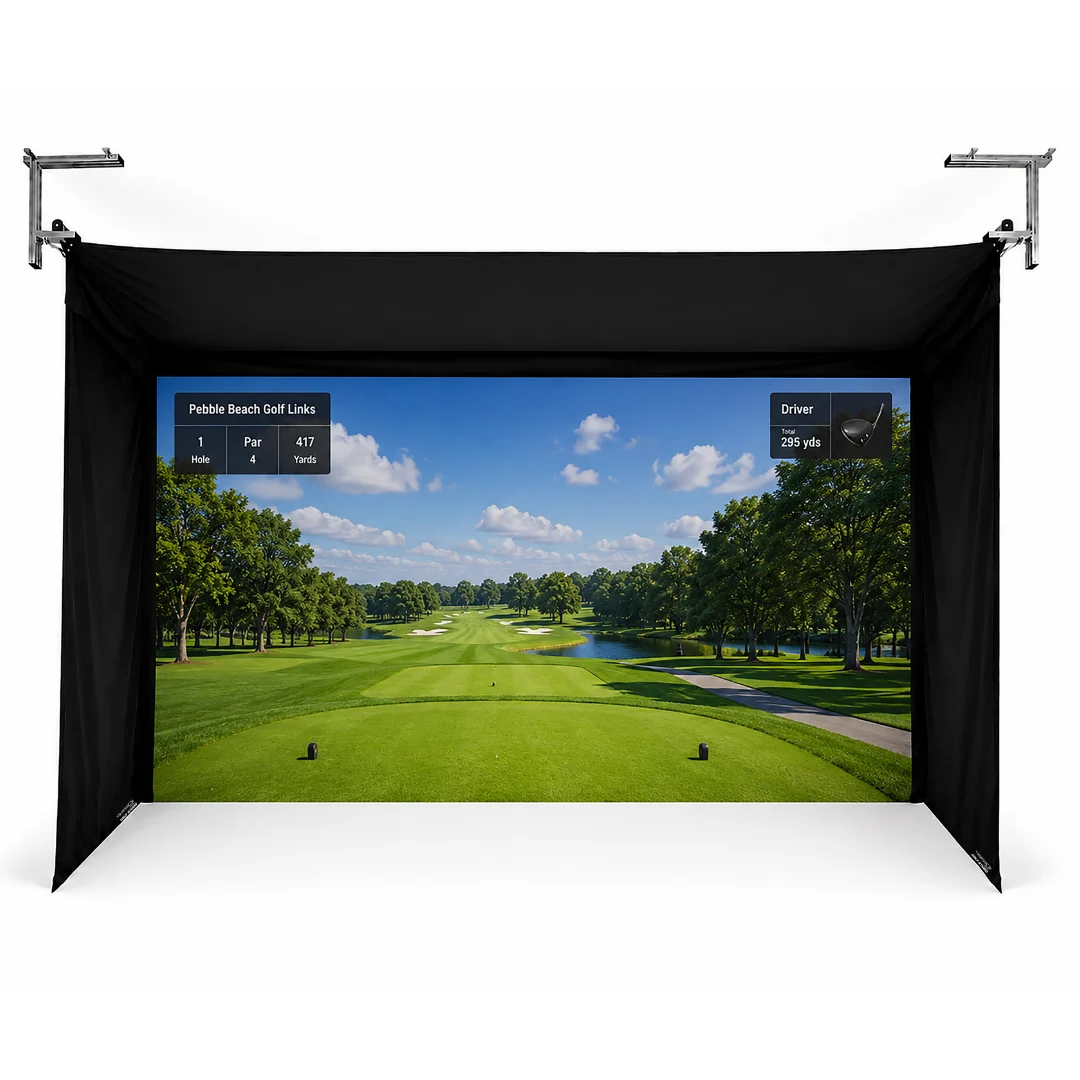

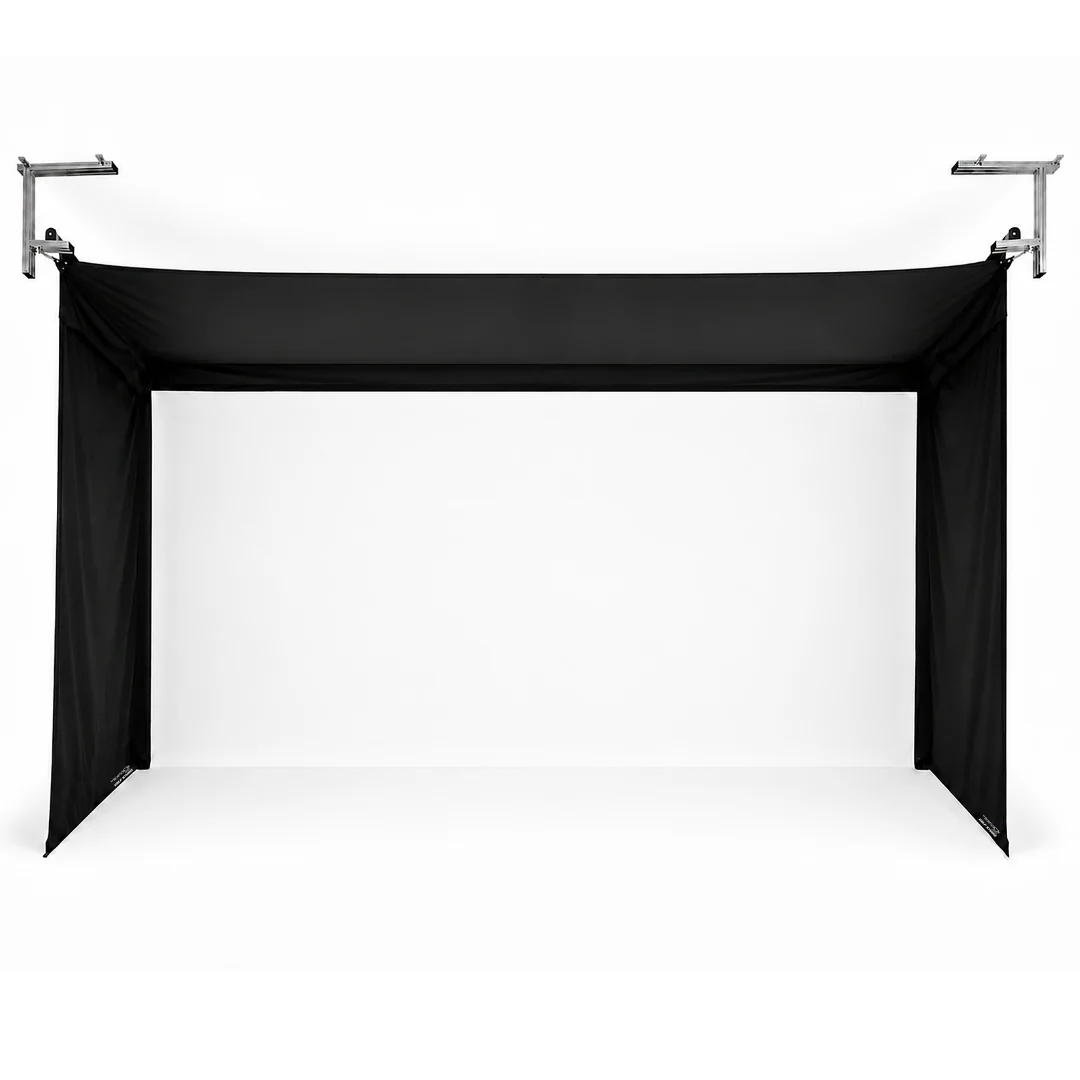

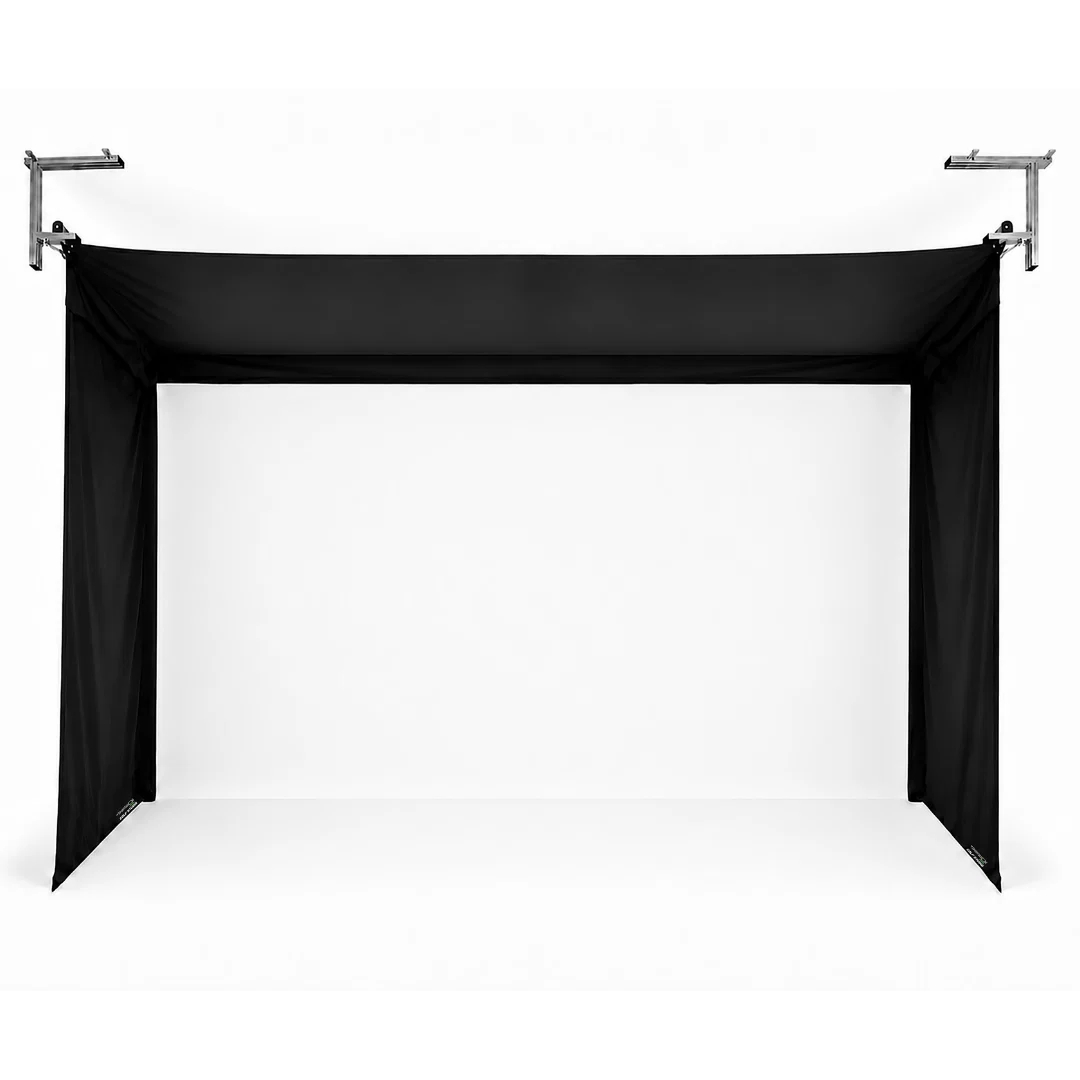

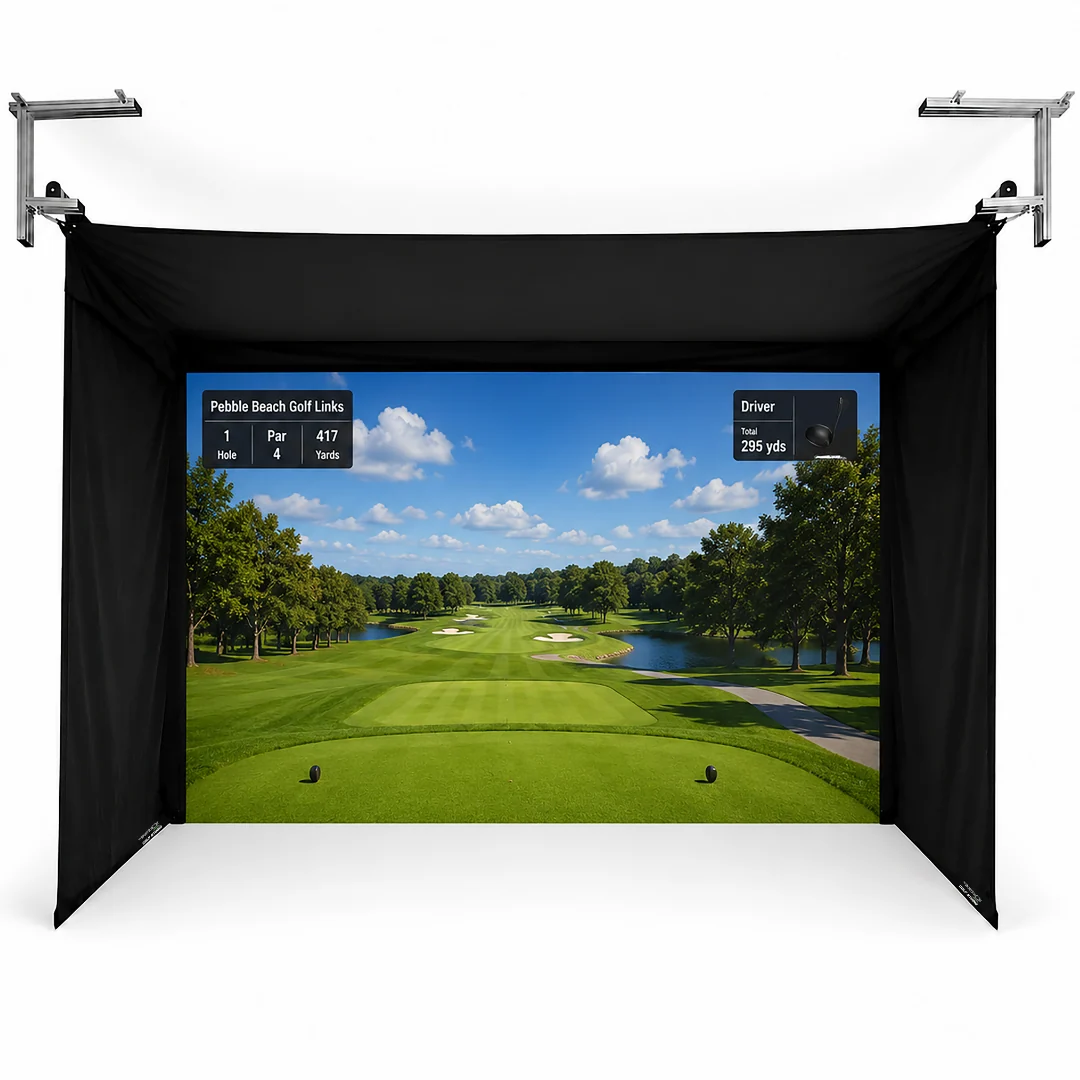

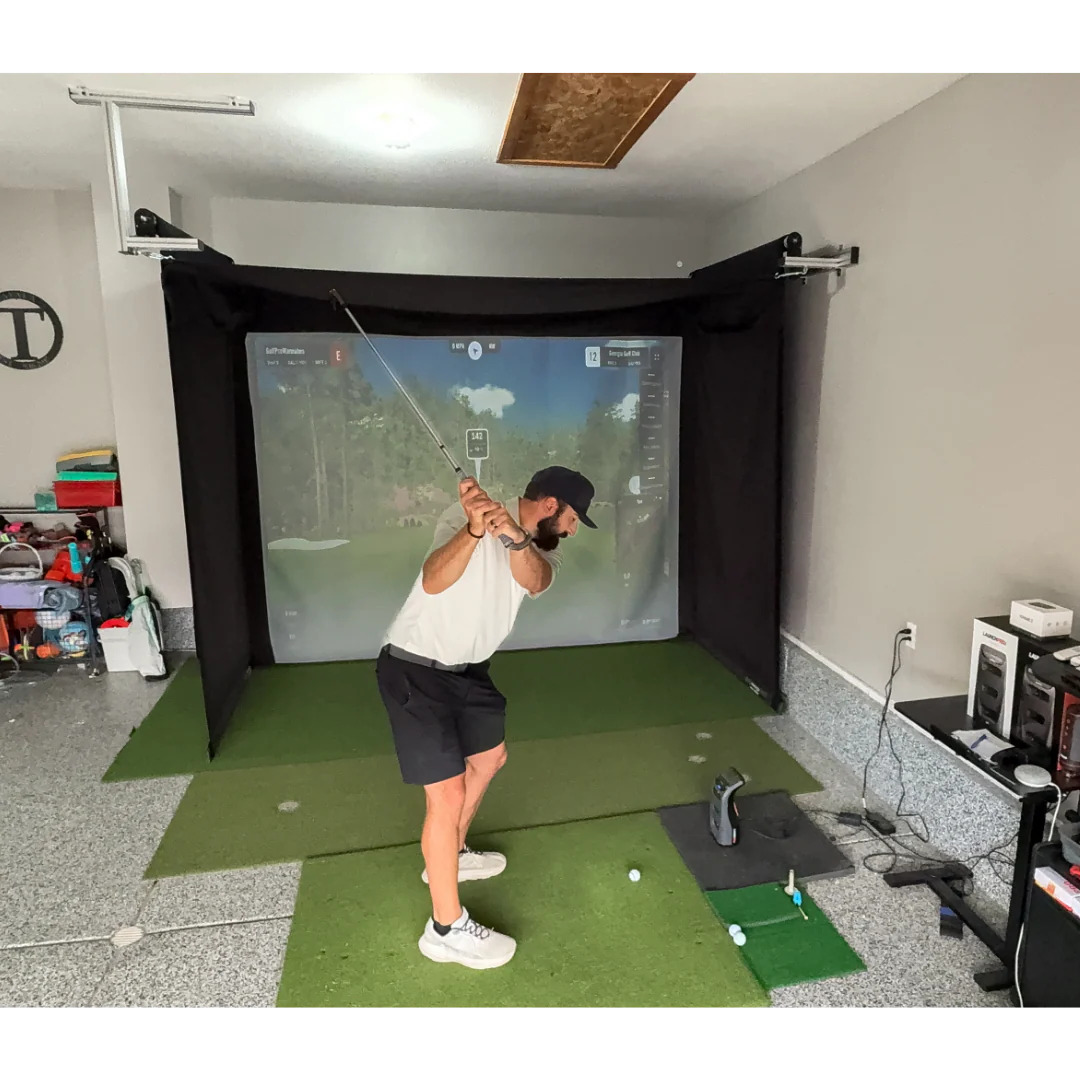

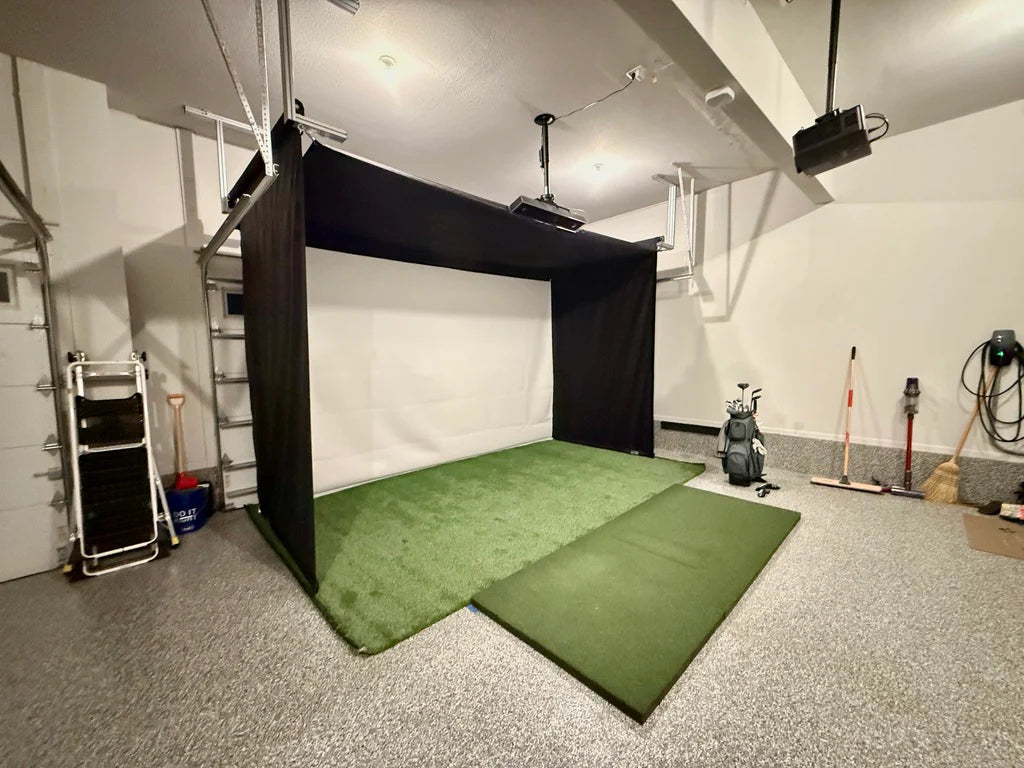

The SportScreen Vanish Series Golf Simulator Enclosure is a revolutionary, fully retractable golf studio that merges cutting-edge engineering with unparalleled convenience. Whether you want to play a round of golf, enjoy a cinematic movie night, or create an open space for workouts and gaming, the Vanish Series delivers ultimate flexibility. Its sleek roll-up mechanism, powered by a manual hand crank or an optional remote control motor, transforms your garage or multi-purpose room in seconds — no need to sacrifice your living space or parking spots for a permanent simulator setup.

Built to accommodate a variety of room sizes, the Vanish Series is available in five standard models and fully custom configurations. It comes complete with integrated ceiling and wall mounting brackets, a premium 3-ply impact screen, blackout support membranes, and deep 5-foot side screens for total shot containment. This system brings a professional-grade golf simulator environment directly into your home.

Offering perfect 1:1, 4:3, and 16:9 aspect ratios, left and right-handed accessibility, and compatibility with multi-sport attachments for hockey, baseball, and lacrosse, the Vanish Series is much more than just a golf simulator — it is a complete, retractable entertainment hub.

Features

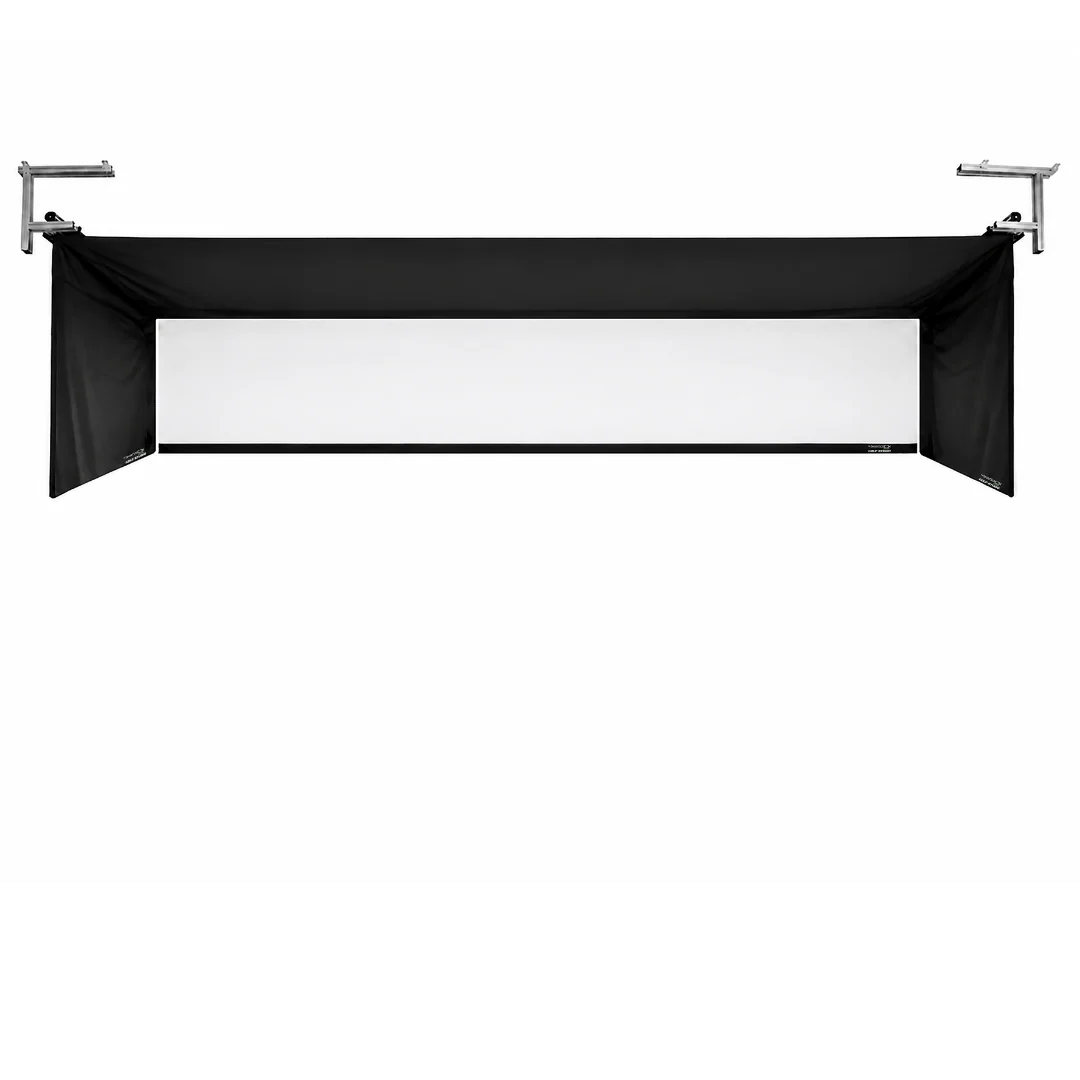

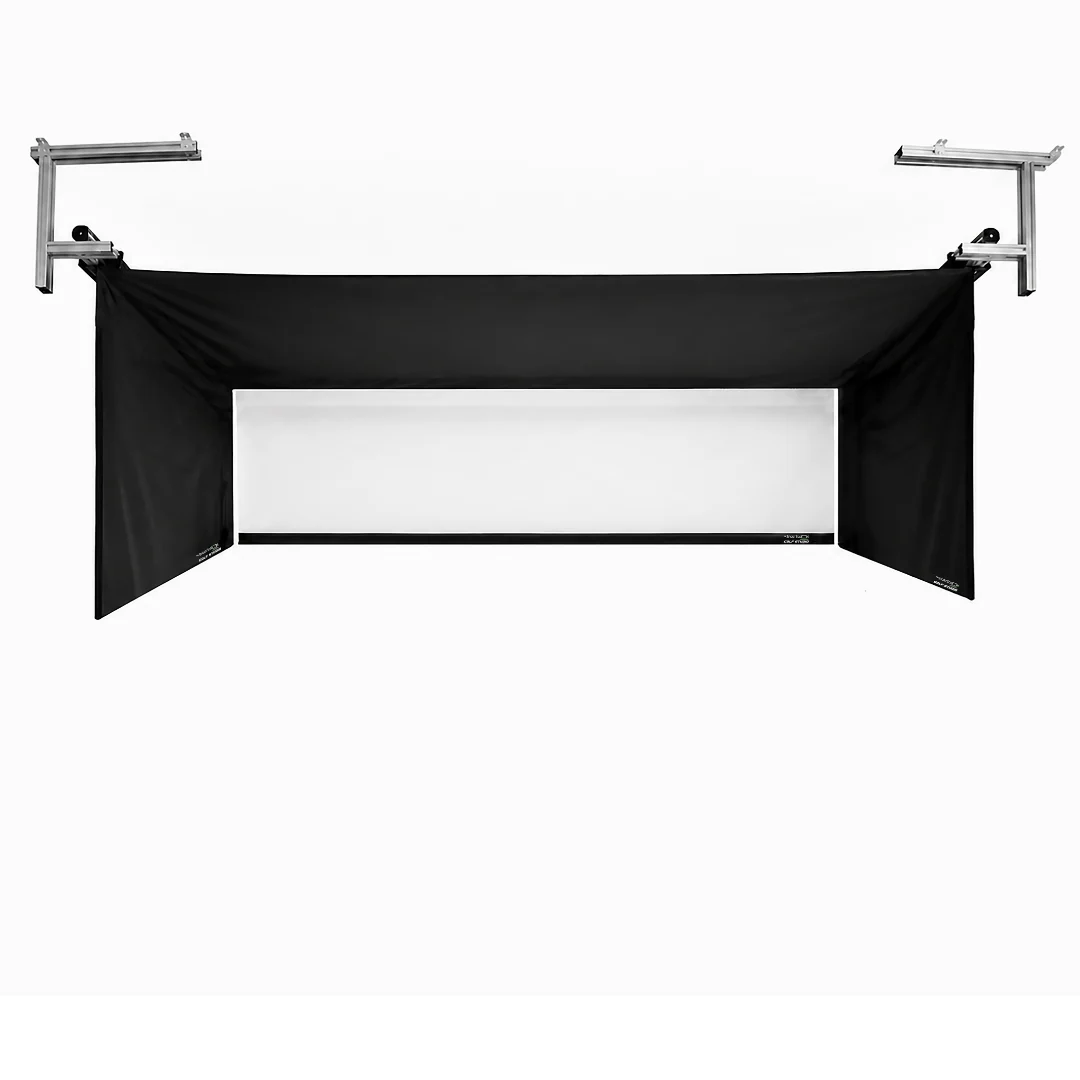

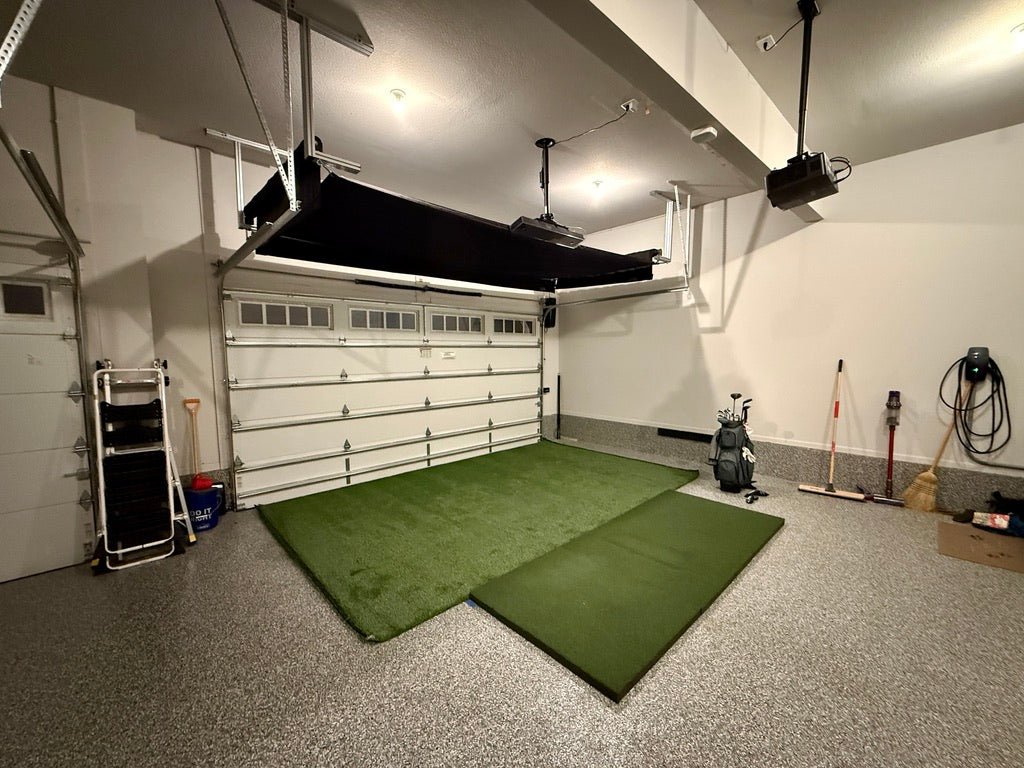

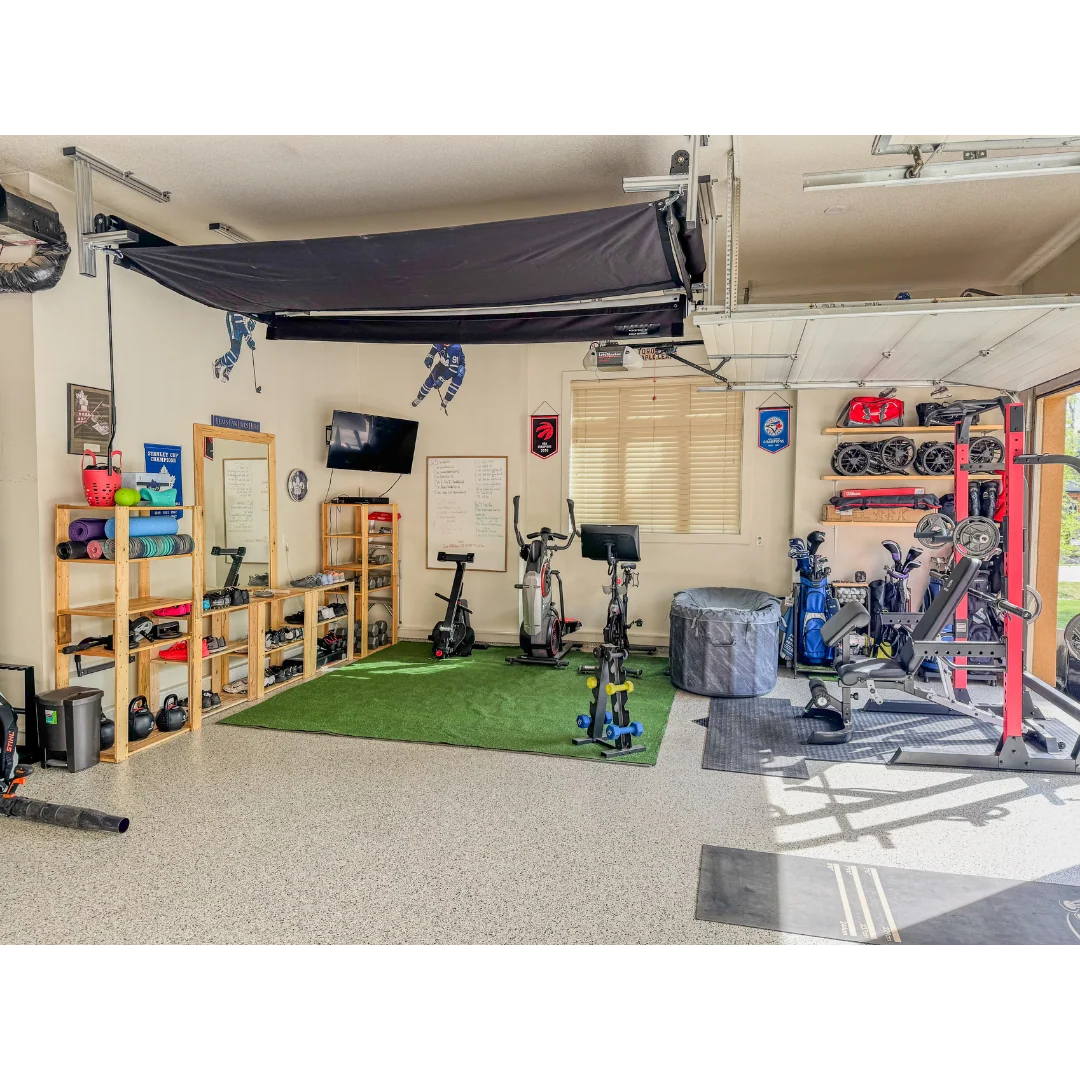

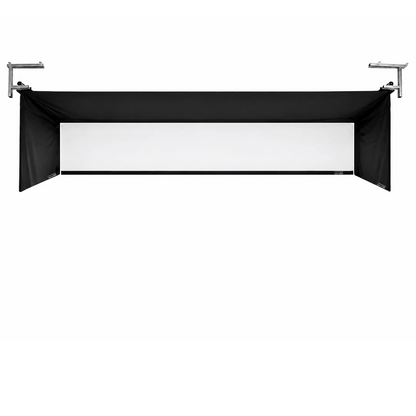

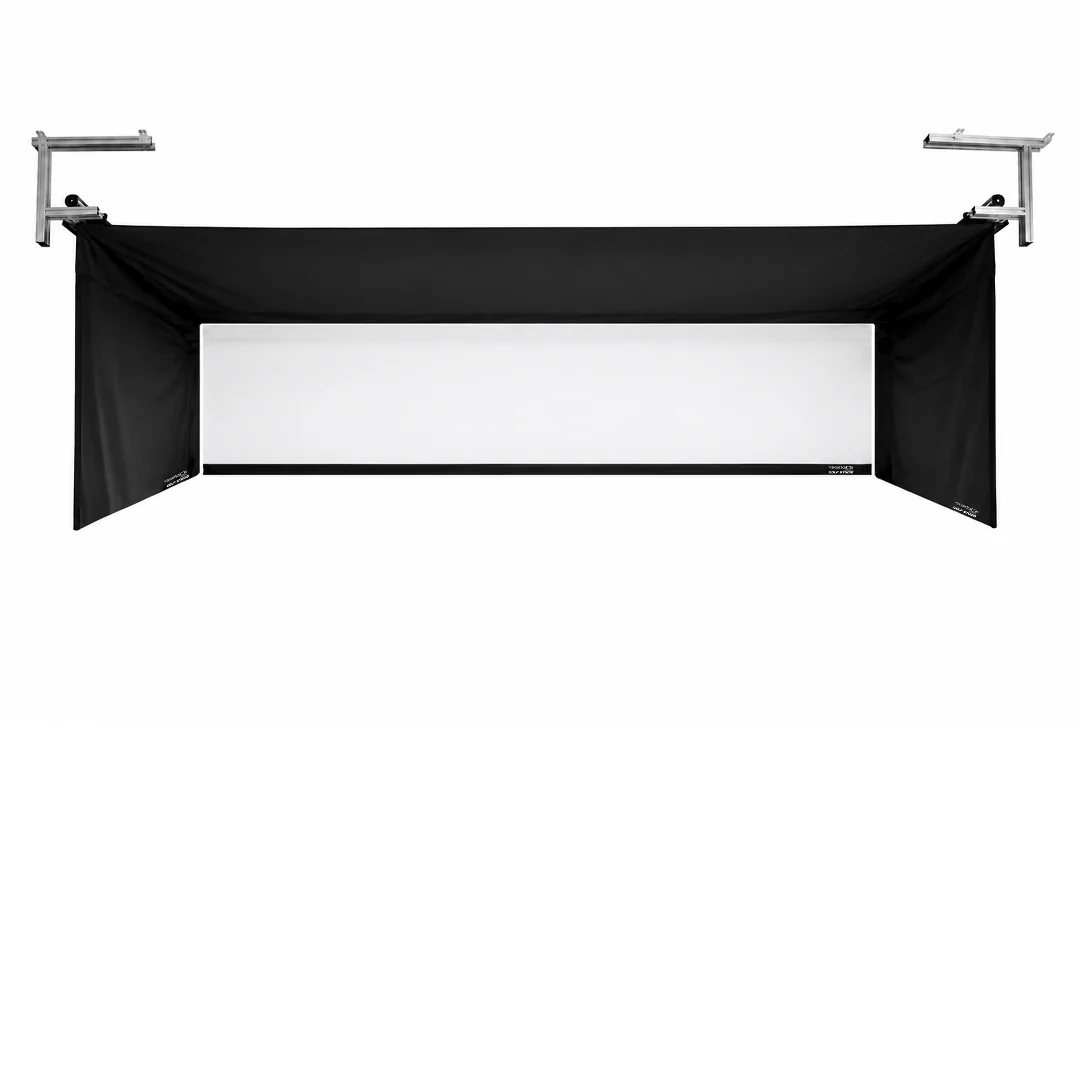

Retractable Roll-Up Design

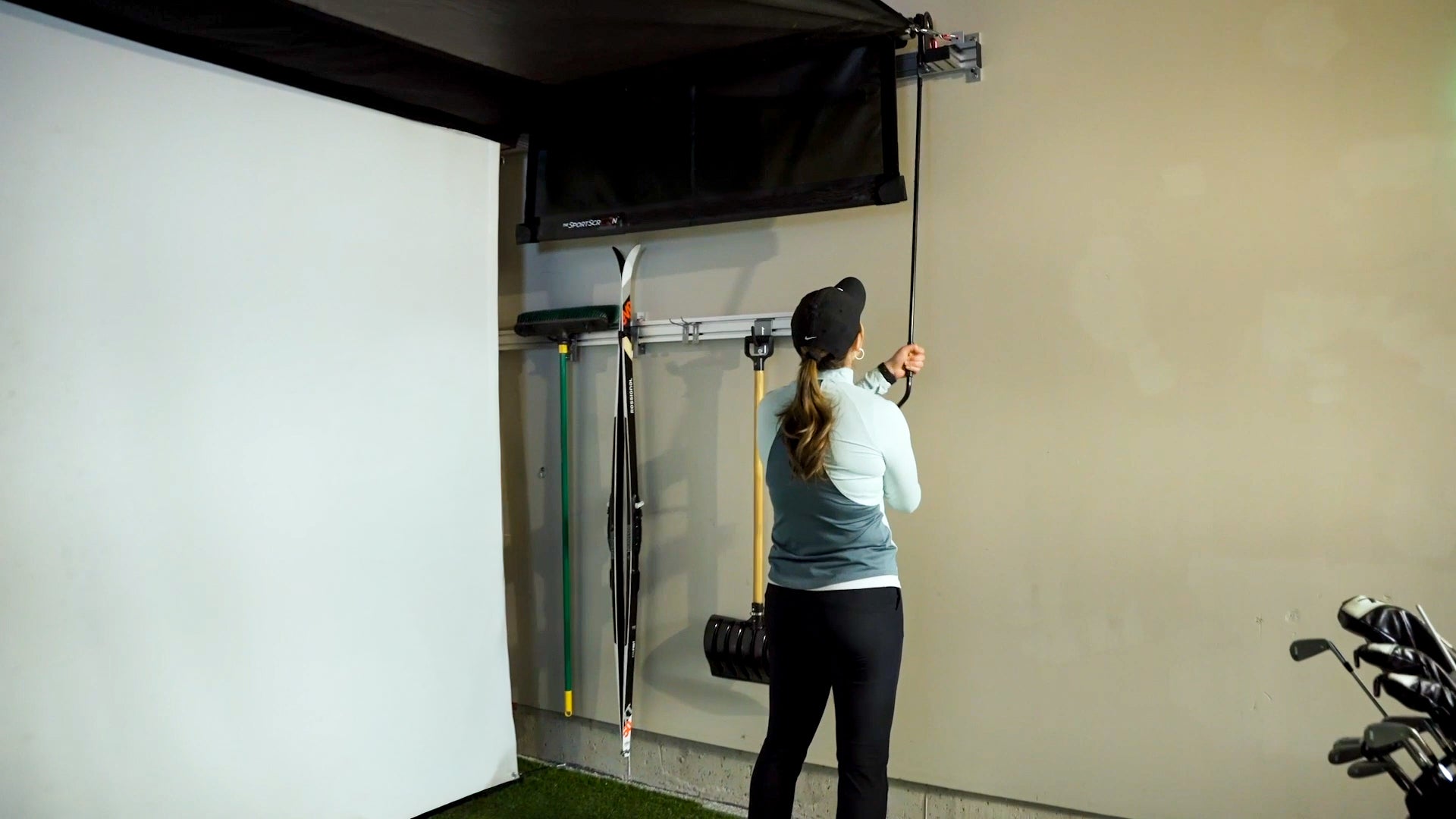

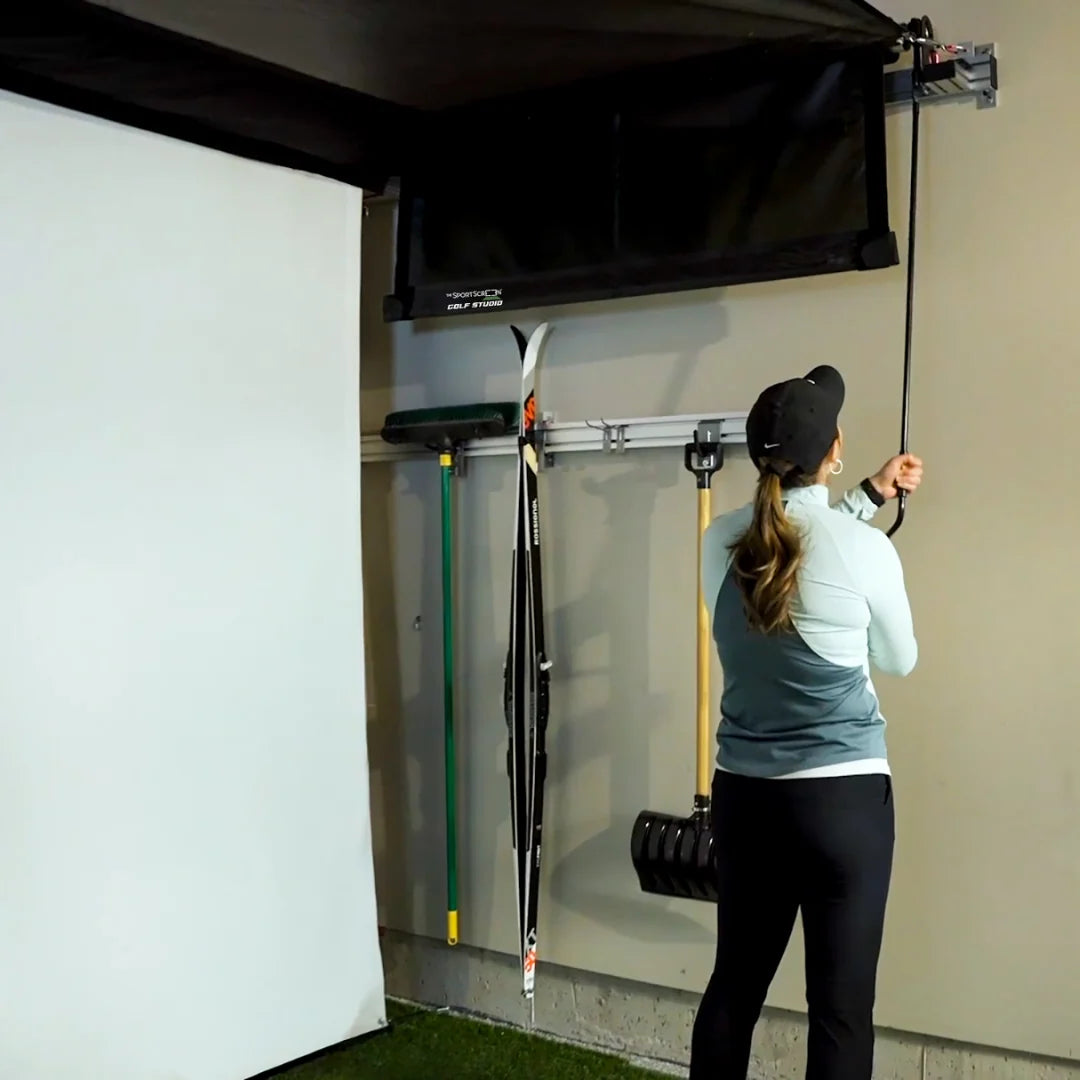

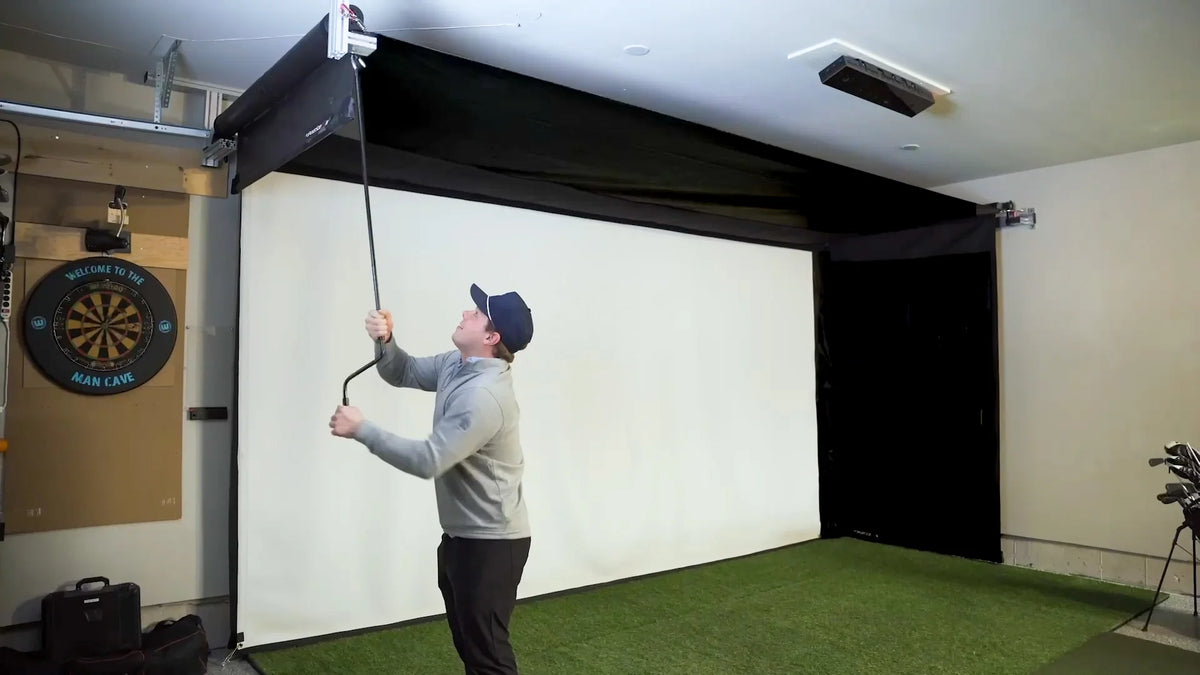

Transform your space instantly with a hand crank or remote-controlled motorized retraction system. The remote option is fully compatible with home automation systems like Google Home, Alexa, and Tuya.

Premium 3-Ply Impact Screen
Includes a high-end 3-ply impact screen that delivers exceptional, high-definition projection quality and long-lasting durability against your fastest drives.

Multi-Purpose Entertainment Space

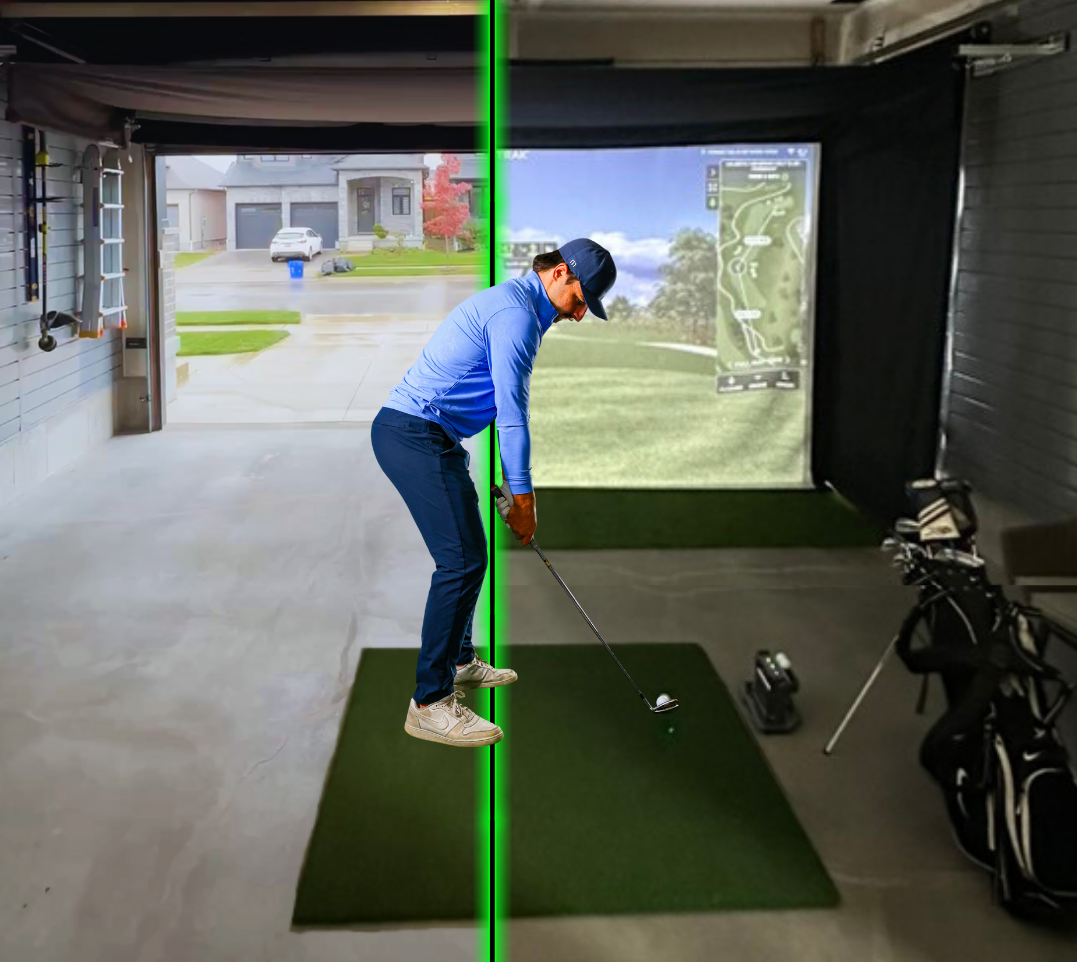

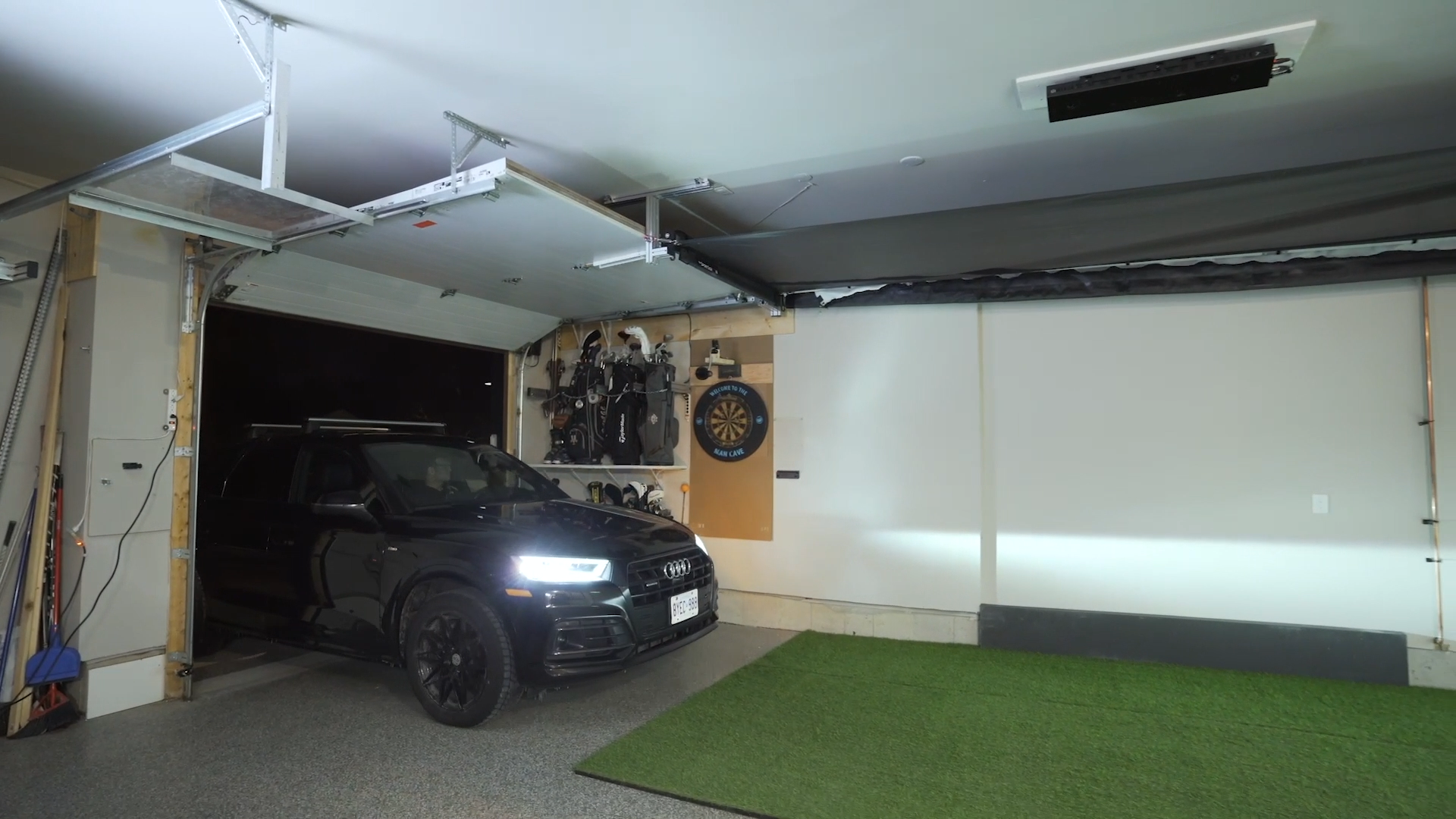

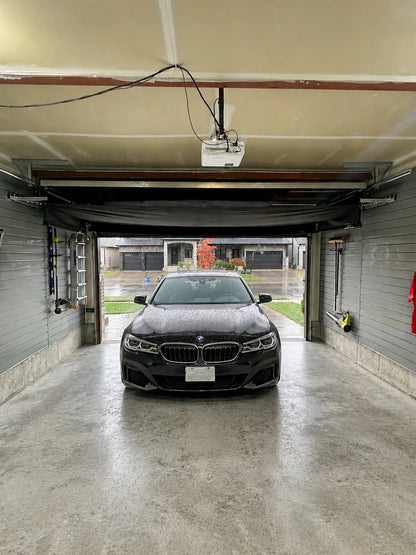

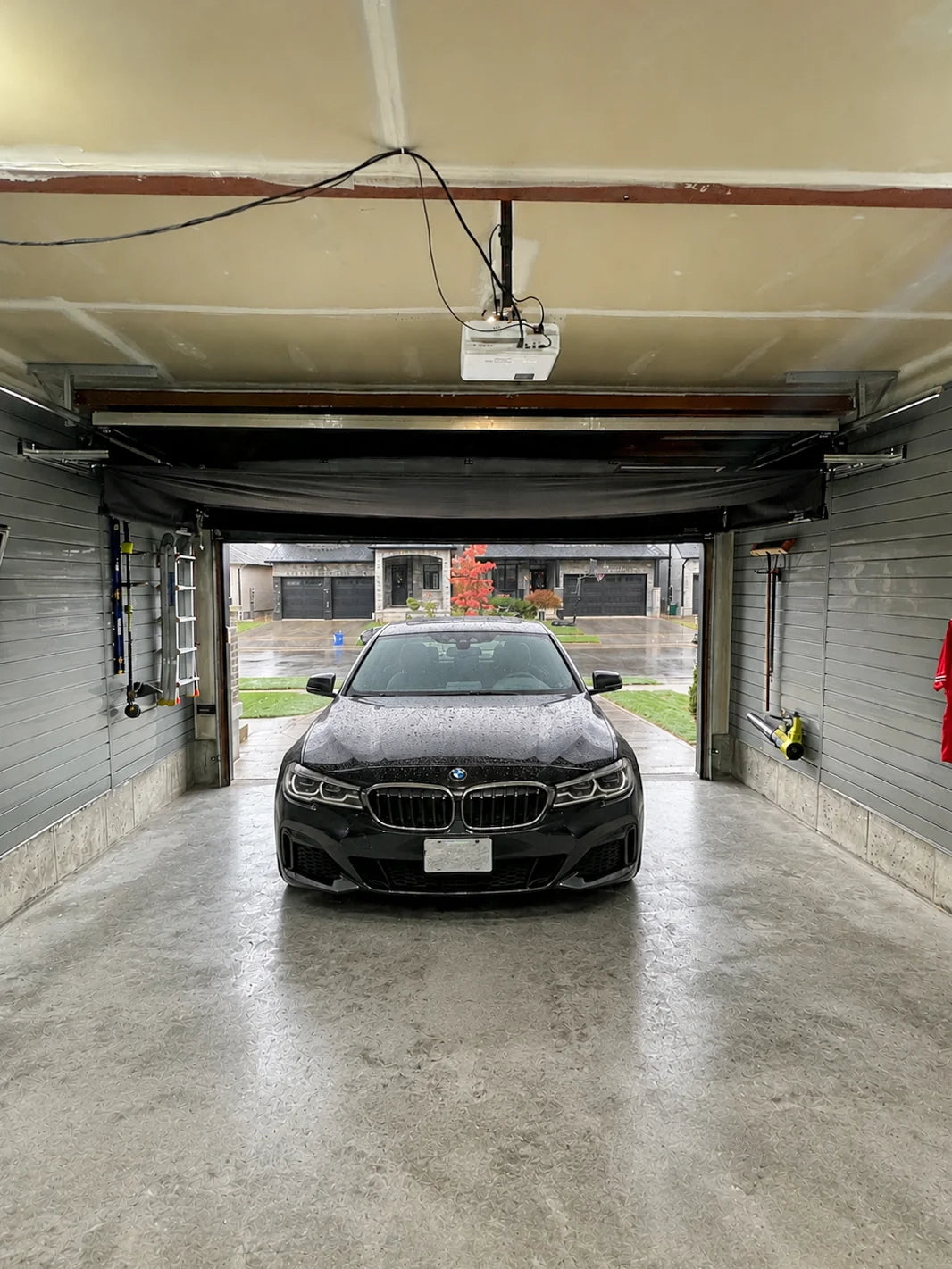

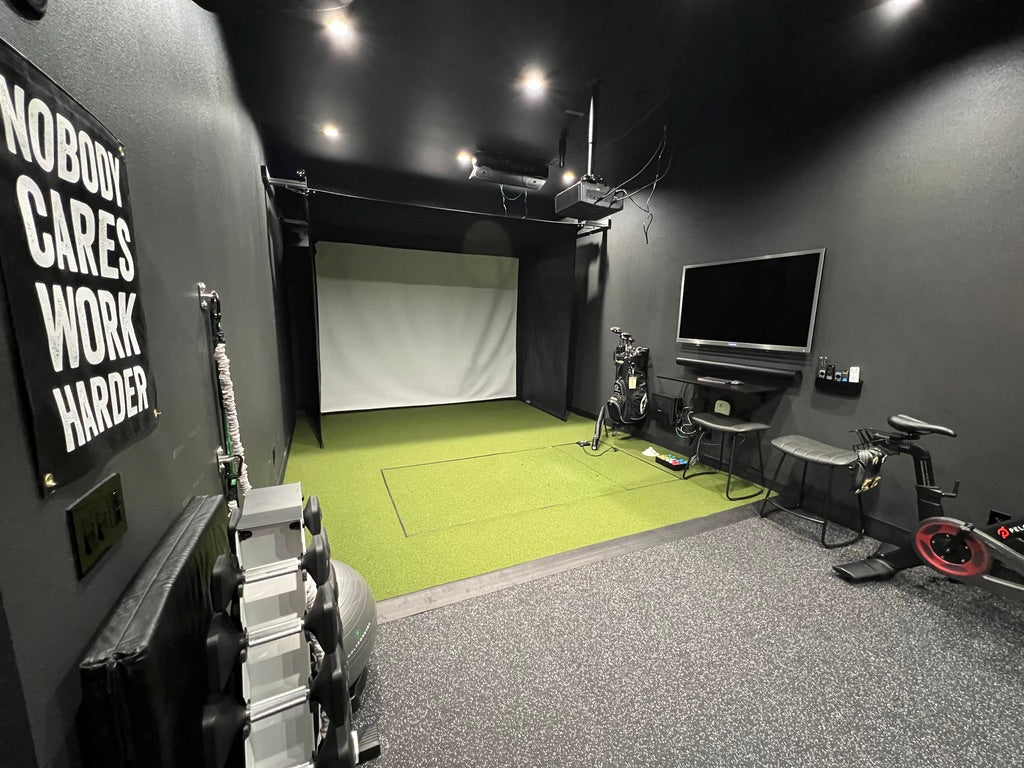

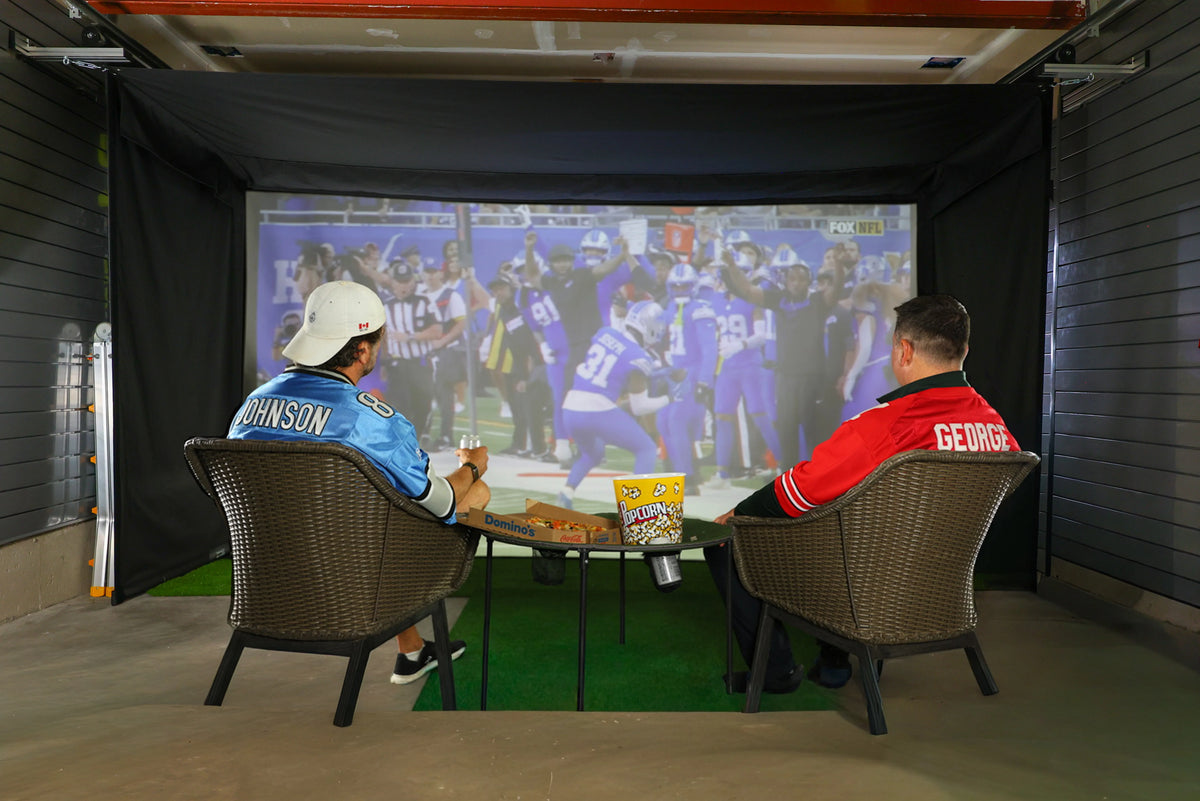

Not just for golf — use the enclosure to watch movies, play VR, or clear the floor for workouts and parking. It is a true multi-use room solution that the whole family can enjoy.

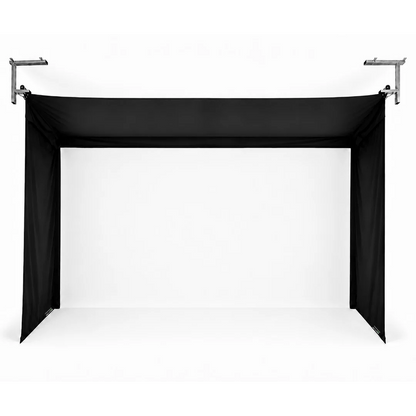

Complete Enclosure Coverage

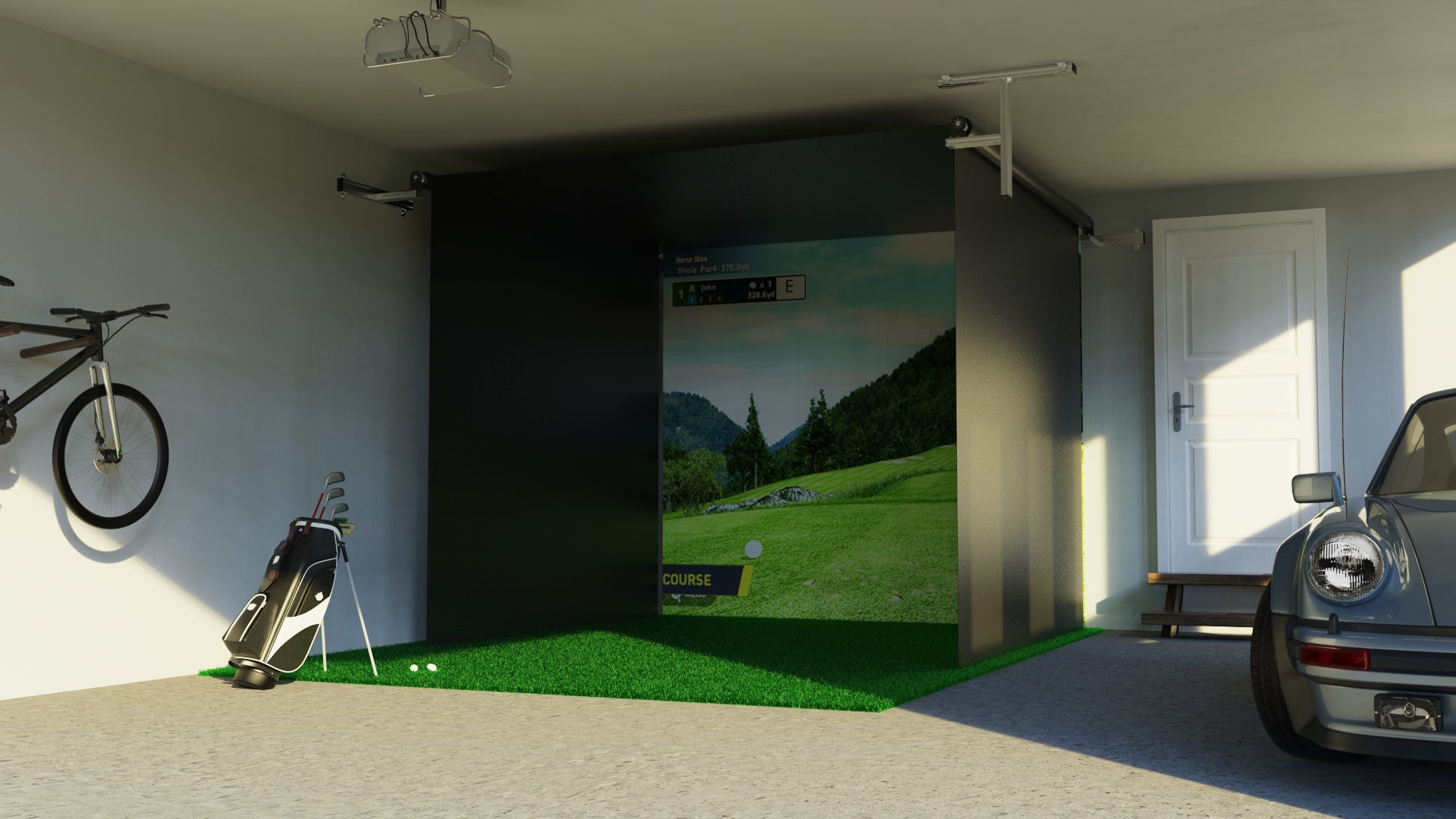

Features full top, side, and back enclosure coverage with 5-foot deep side screens to ensure enhanced safety and significantly reduced ball bounceback.

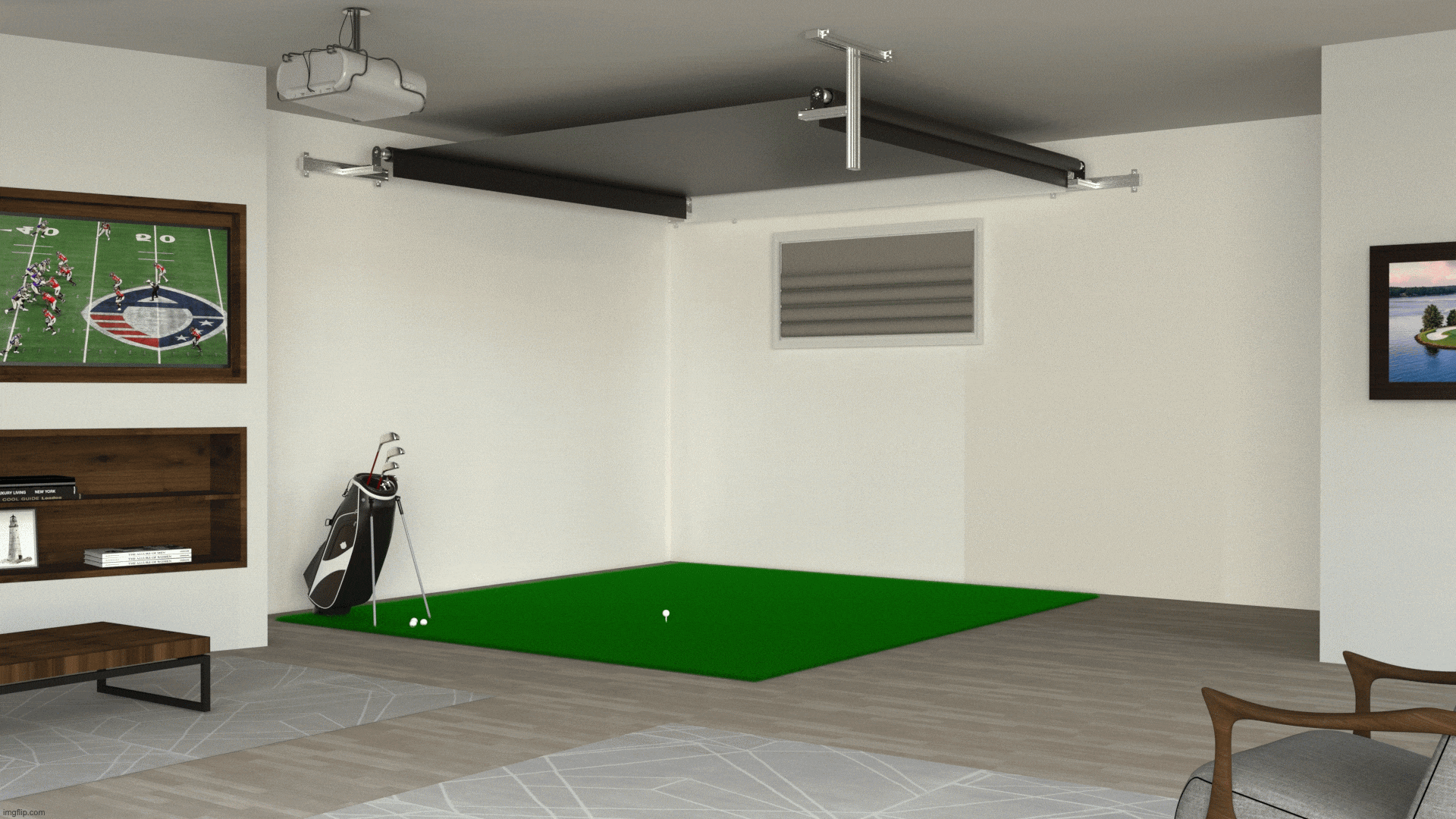

Easy Wall or Ceiling Mounting
Includes versatile mounting brackets compatible with ceiling heights ranging from 62" to 115", making installation straightforward in almost any room.

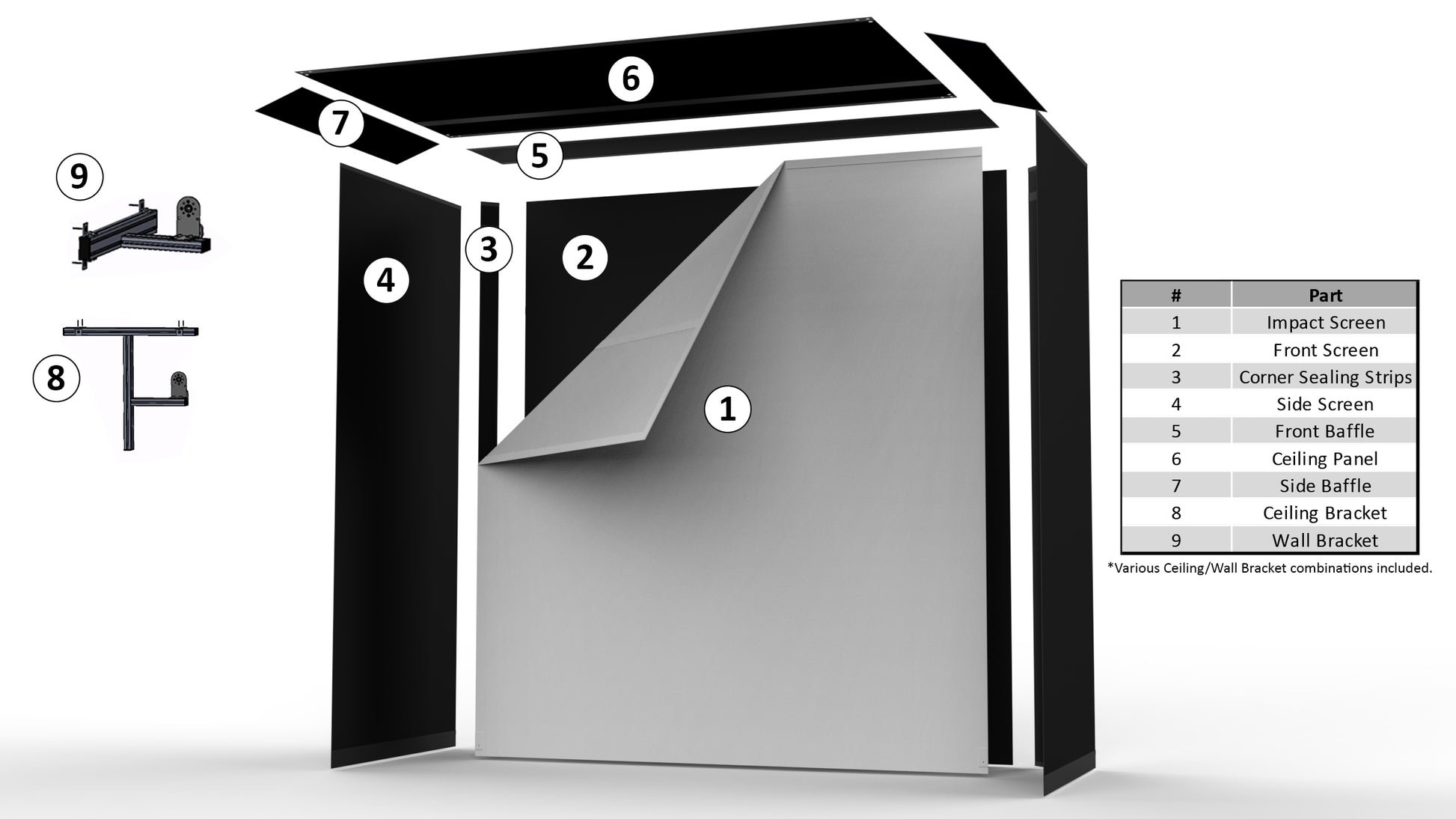

What's Included

• 1 Rear Impact Support Membrane / Blackout Screen
• 1 Premium 3-Ply Impact Screen
• 2 Side Screens (5ft Depth)
• 1 Ceiling Panel
• 2 Corner Pieces
• 2 Side Baffles
• 1 Front Baffle
• Wall/Ceiling Mounting Brackets
• Assembly Hardware

*Please Note: Launch monitor, computer, turf, hitting mat, and projector are not included.

Specifications

Vanish 9

• Dimensions: 93"W x (99"-102")H x 60"D
• Projection Ratio: 1:1
• Projectable Area: 89"W x 89"H
• Material: Durable, construction-grade mesh
• Space Required Behind Screen: 8" - 12"
• Mounting Compatibility: Ceiling or wall mounting
• Required Minimum Room Dimensions: 101"W x 108"H x 204"D
• Recommended Minimum Room Dimensions: 107"W x 111"H x 204"D

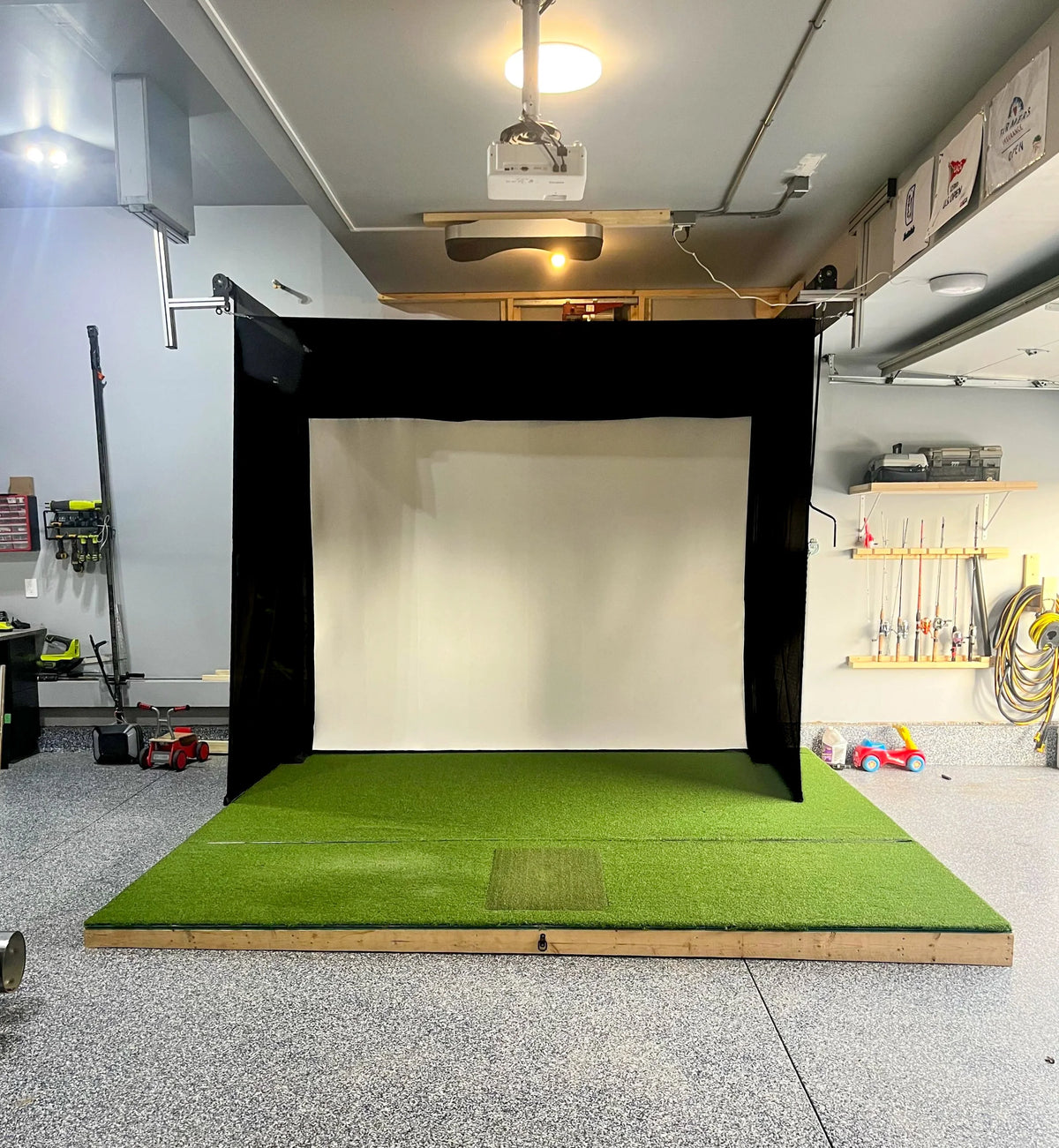

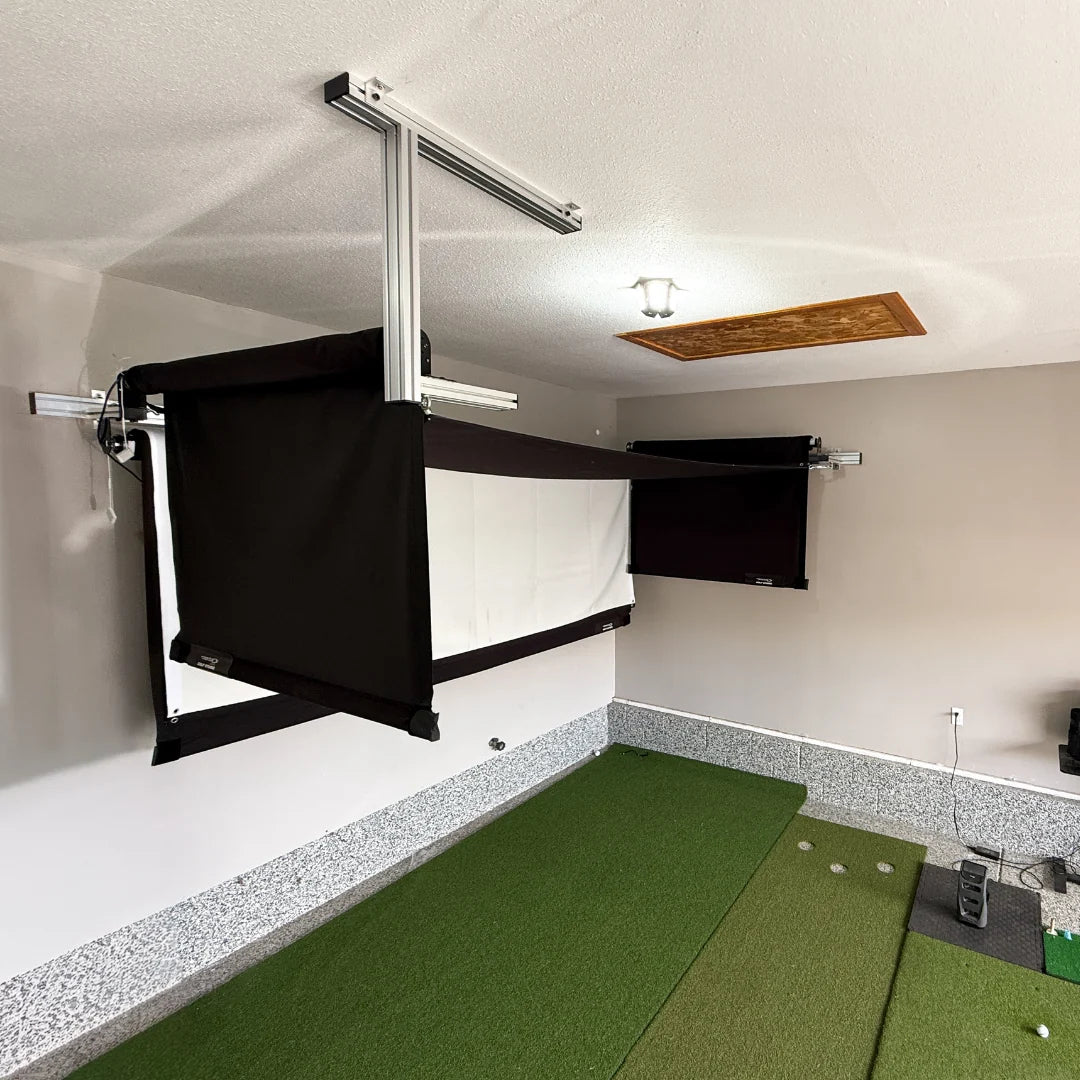

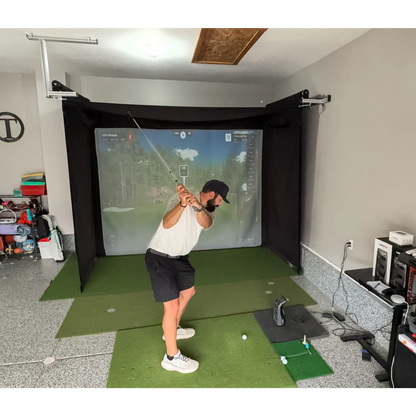

Vanish 11

• Dimensions: 123"W x (99"-102")H x 60"D
• Projection Ratio: 4:3
• Projectable Area: 120"W x 90"H
• Material: Durable, construction-grade mesh
• Space Required Behind Screen: 8" - 12"
• Mounting Compatibility: Ceiling or wall mounting
• Required Minimum Room Dimensions: 135"W x 108"H x 204"D
• Recommended Minimum Room Dimensions: 141"W x 111"H x 204"D

Vanish 13H

• Dimensions: 147"W x (116.5"-119.5")H x 60"D
• Projection Ratio: 4:3
• Projectable Area: 143"W x 107.5"H
• Material: Construction-grade mesh
• Space Required Behind Screen: 8" - 12"
• Mounting Compatibility: Ceiling or wall mounting
• Required Minimum Room Dimensions: 156"W x 125.5"H x 204"D
• Recommended Minimum Room Dimensions: 161"W x 128.5"H x 204"D

Vanish 16

• Dimensions: 186"W x (99"-102")H x 60"D
• Projection Ratio: 16:9
• Projectable Area: 183"W x 90"H
• Material: Construction-grade mesh
• Space Required Behind Screen: 8" - 12"
• Mounting Compatibility: Ceiling or wall mounting
• Required Minimum Room Dimensions: 198"W x 108"H x 204"D
• Recommended Minimum Room Dimensions: 204"W x 111"H x 204"D

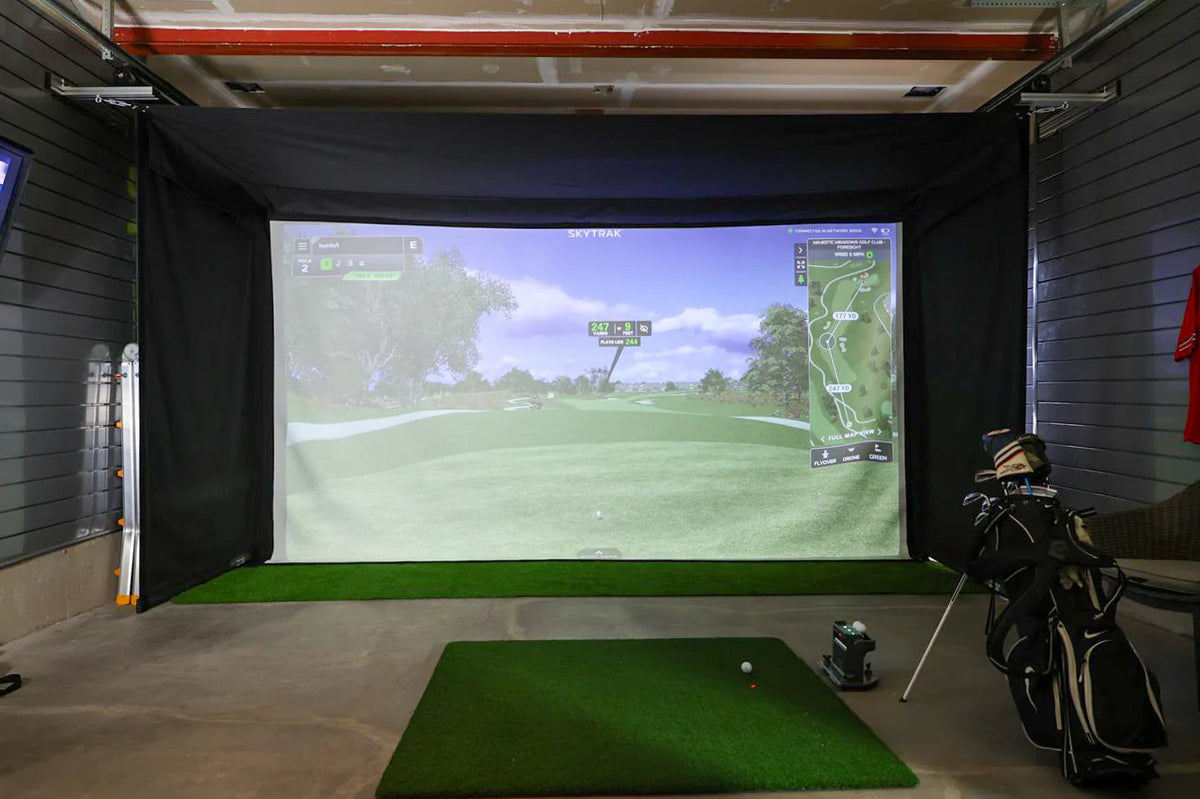

Vanish 16H

• Dimensions: 186"W x (112"-115")H x 60"D
• Projection Ratio: 16:9
• Projectable Area: 183"W x 102"H
• Material: Durable, construction-grade mesh
• Space Required Behind Screen: 8" - 12" recommended
• Mounting Compatibility: Ceiling or wall mounting
• Required Minimum Room Dimensions: 198"W x 120"H x 204"D
• Recommended Minimum Room Dimensions: 204"W x 123"H x 204"D

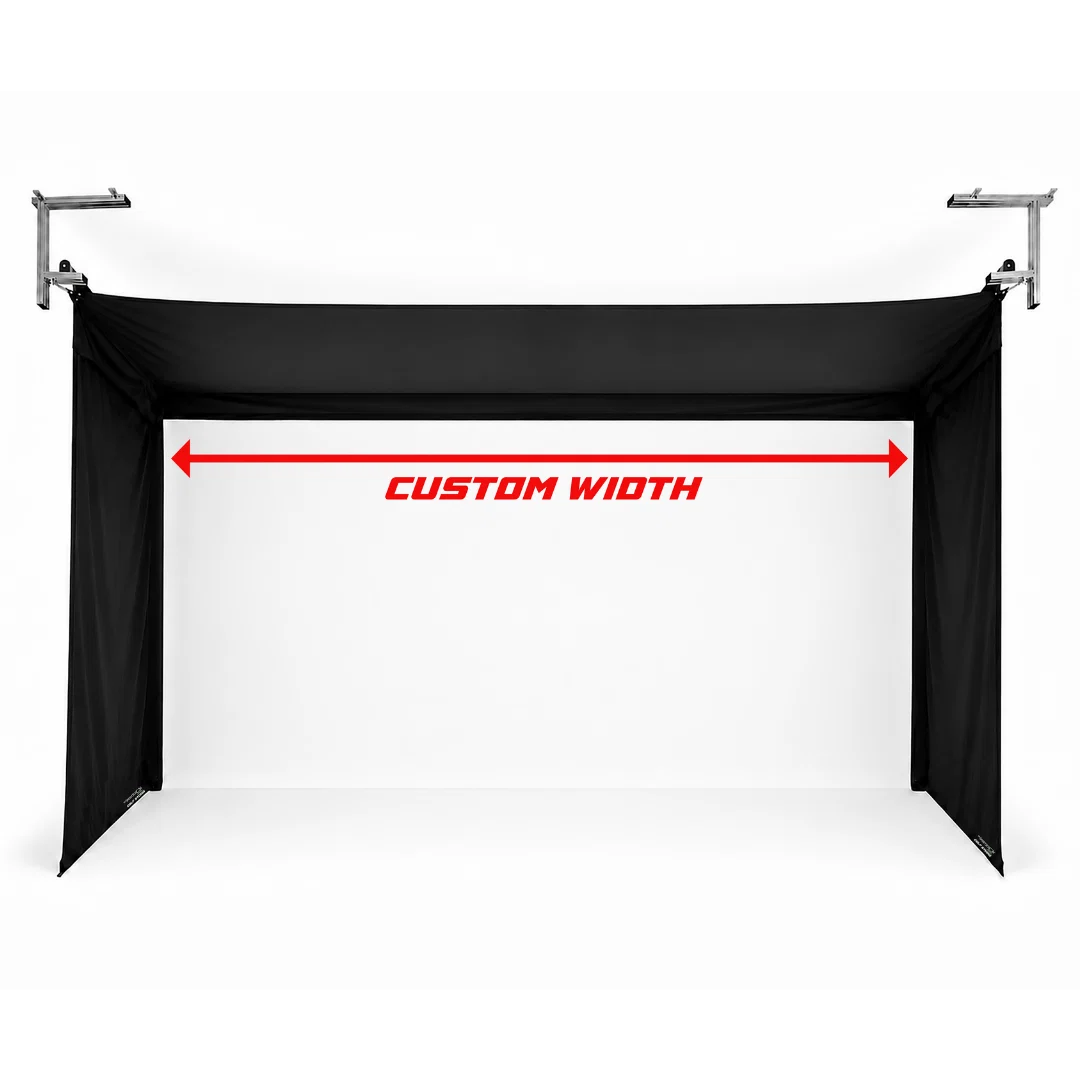

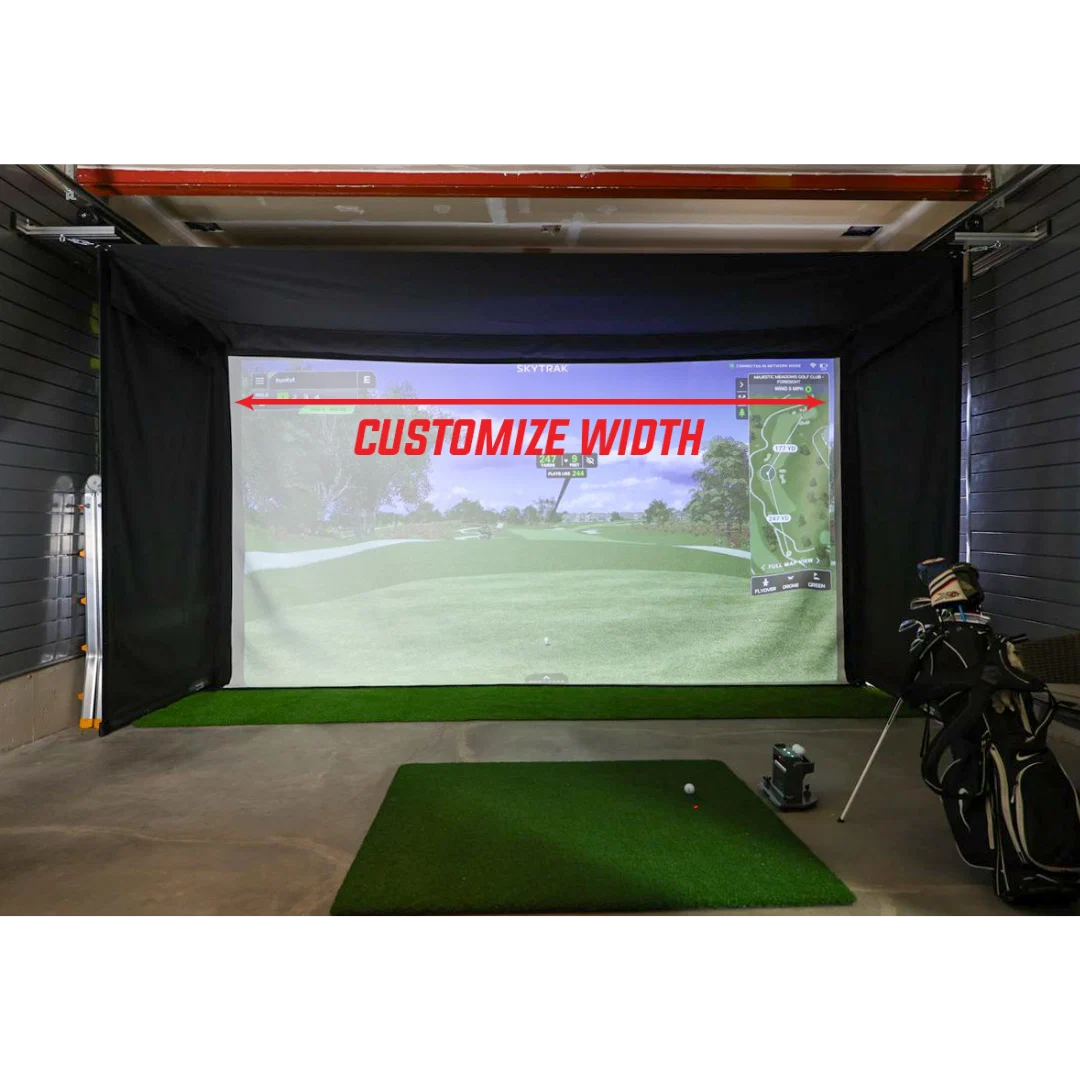

Custom Sizes

• Custom configurations available upon request (max width: 16 ft)
• 2-foot height extensions offered for taller ceilings

Installation

Varnish Series Manual
Varnish Series Install Videos
