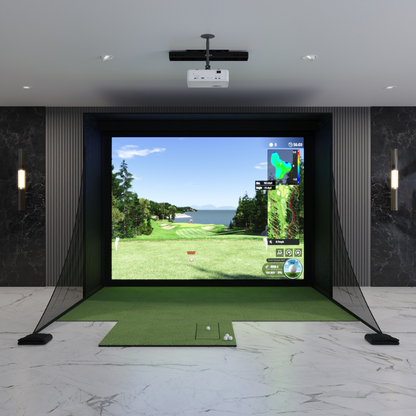

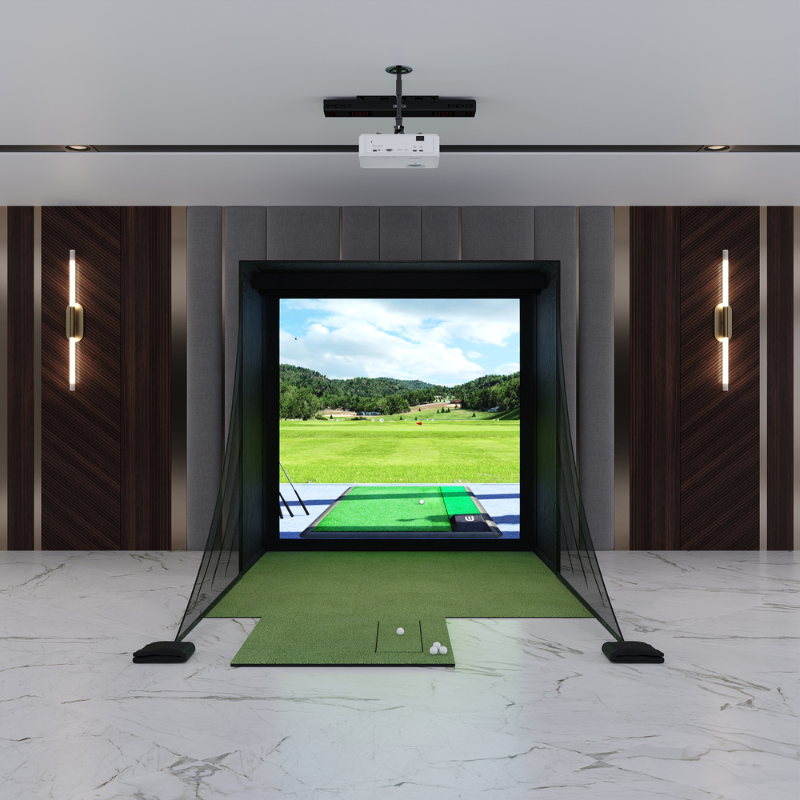

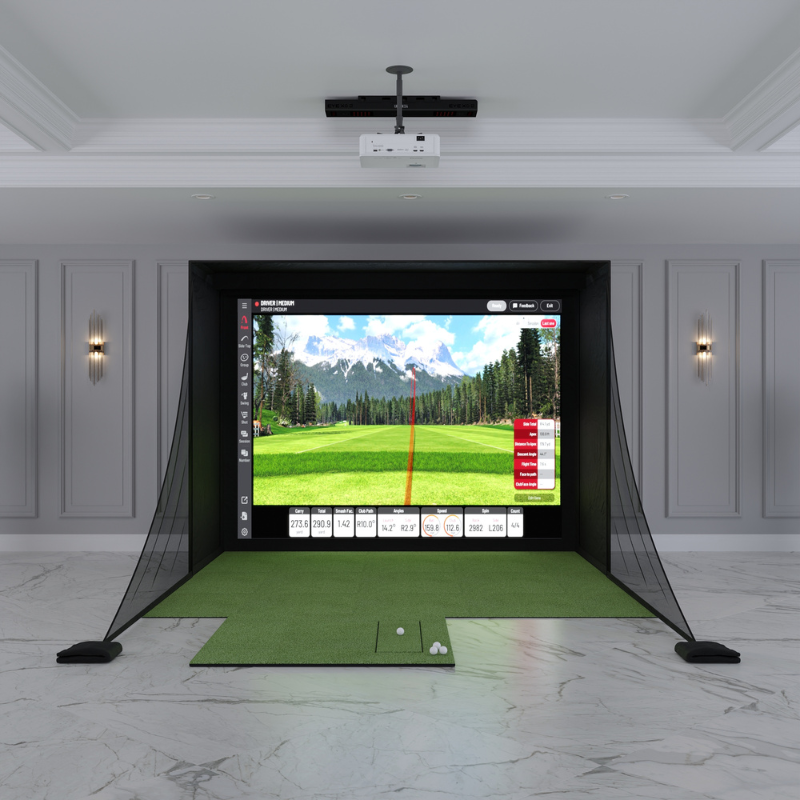

The Uneekor EYE XO2 DIY Golf Simulator Package combines an overhead, camera-based launch monitor with a customizable Carl’s Place DIY enclosure, premium impact screen, your choice of HotShot hitting mat, and a compatible BenQ projector. The EYE XO2 uses three high-speed cameras to deliver near-instant club and ball data for both right- and left-handed players without recalibration. Train with any golf ball, review impact video with Club Optix, and analyze 25+ data points in Uneekor VIEW software or expand with Refine/Refine+ and third-party sim platforms.
Features
Expanded hitting zone: 28" W × 21" L—twice the size of the original EYE XO for effortless left/right-hand play
Instant feedback: live ball and club data rendered to your impact screen with minimal latency
Club Optix: impact-zone video for precise face, path, and strike feedback
Power U Report: cloud-style shot history review to track progress anywhere
Trouble Mat included: rough and bunker inserts to practice realistic lies
Software compatibility: works with TGC 2019, GSPro, E6 CONNECT, and more; add Refine (5 courses) or Refine+ (adds 15 non-U.S. courses)

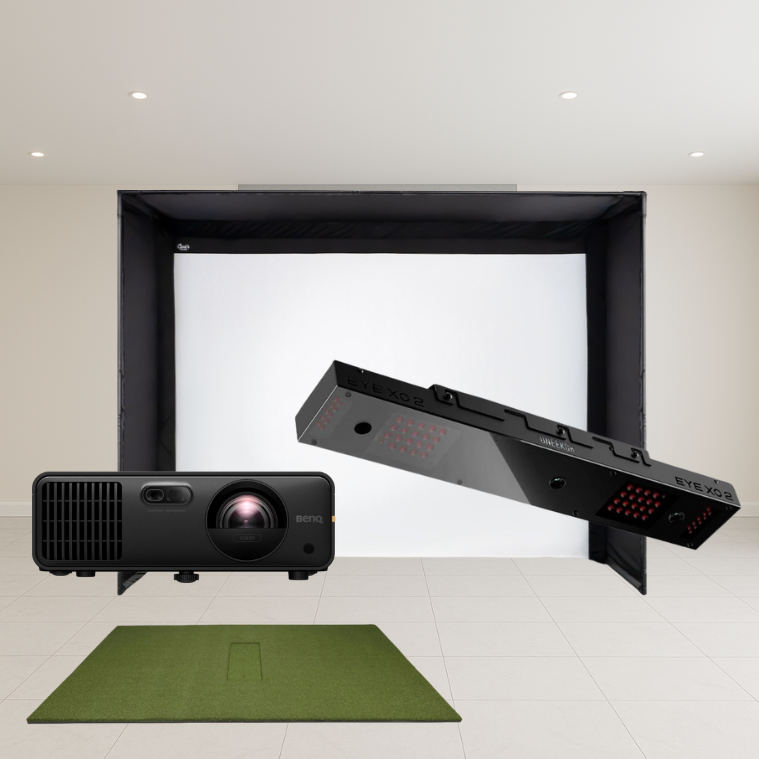

What's Included
Uneekor EYE XO2 Launch Monitor
3-Month Ultimate Package Trial
Carl’s Place DIY Golf Simulator Enclosure Kit with Premium Impact Screen (size of your choice)
Choice of Carl’s Place HotShot Golf Hitting Mat (4'×9' or 6'×10')

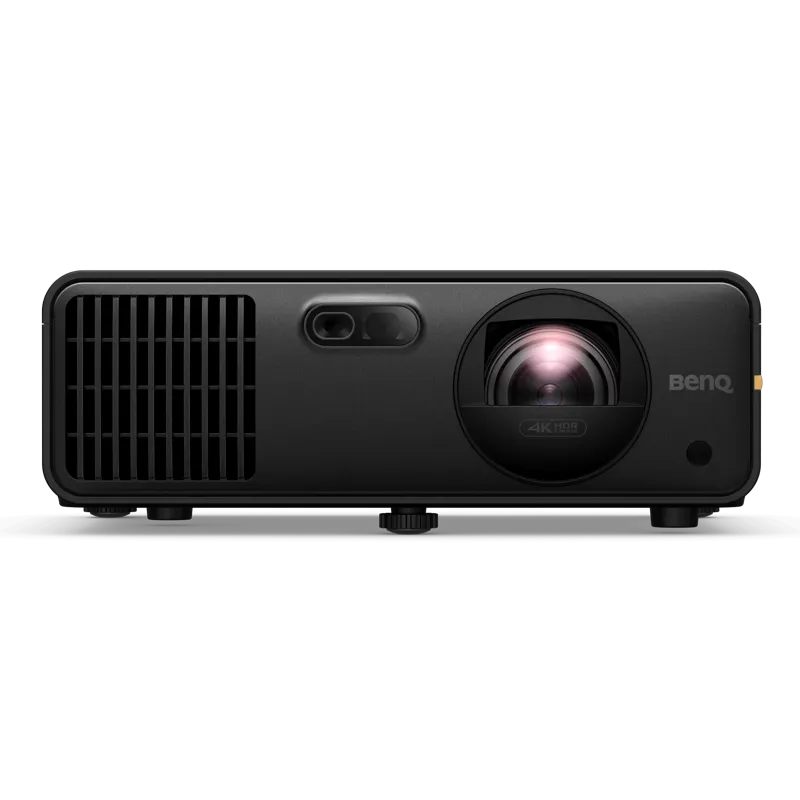

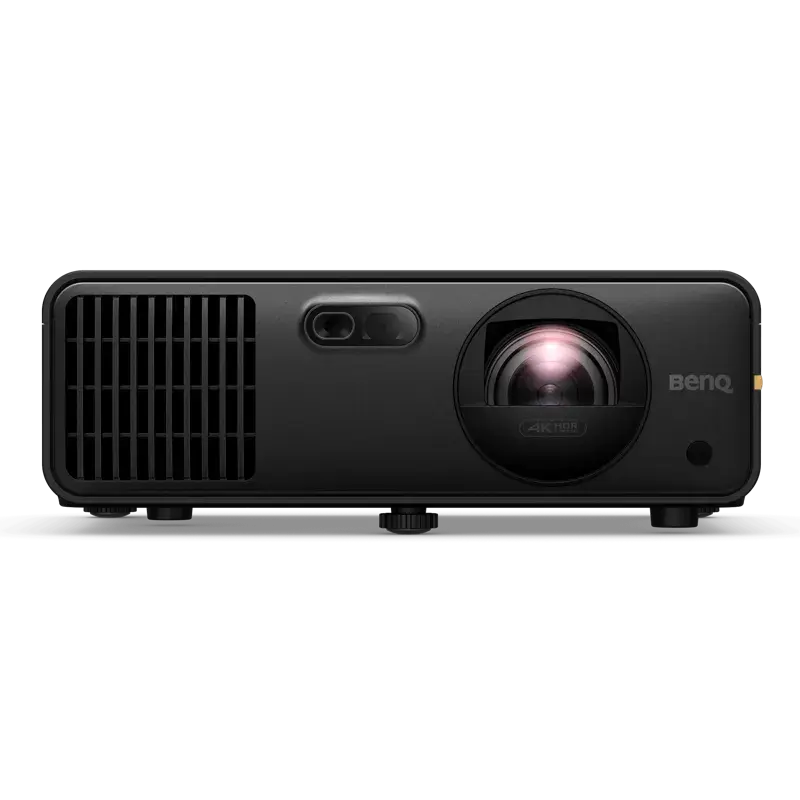

Choice of BenQ Projector (AH700ST or AK700ST)
Uneekor Trouble Mat (rough and bunker inserts)
Optional Accessories (Not Included)
Pipe Framing Kit for DIY Enclosure (recommended)
Foam Insert Kit (recommended)
Safety Baffle (recommended)
Back Cover Kit and Back Cover Pipe Kit
Net Wall Extensions
Putting Turf
Projector Mount (flush or drop)
Gaming PC or Laptop
What's Measured
Ball Data
Ball speed
Side and back spin
Side angle and total
Launch angle
Angle of descent / land angle
Flight time
Distance to apex
Carry, run, and total distance
Club Data
Club speed
Dynamic loft
Angle of attack
Smash factor
Club path
Face angle
Face-to-path
Lie angle
Loft angle
Impact point (vertical and horizontal)
Note: EYE XO2 club stickers are required to enable club data capture.
Specifications

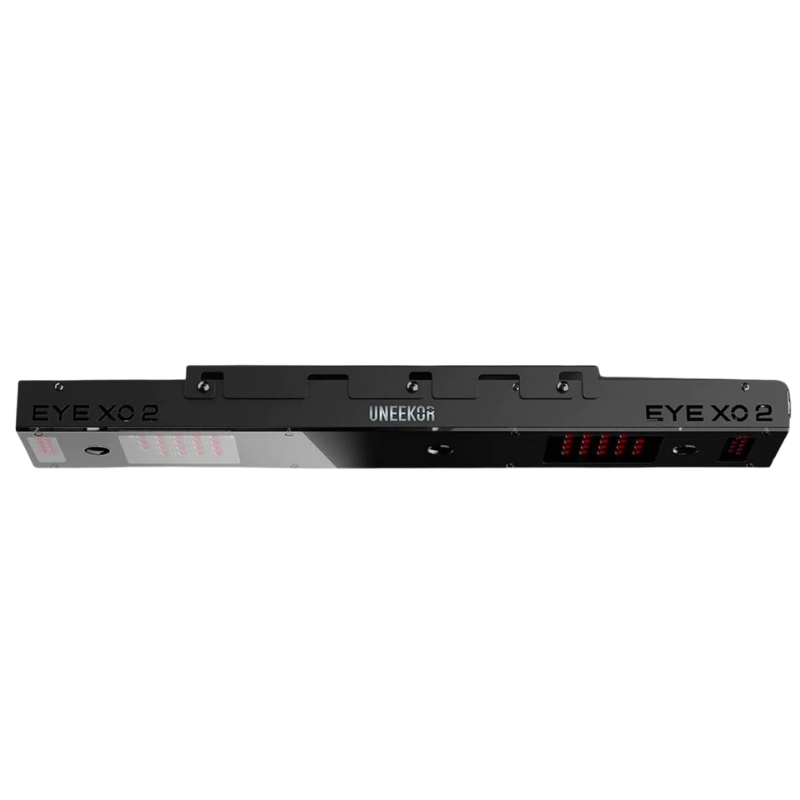

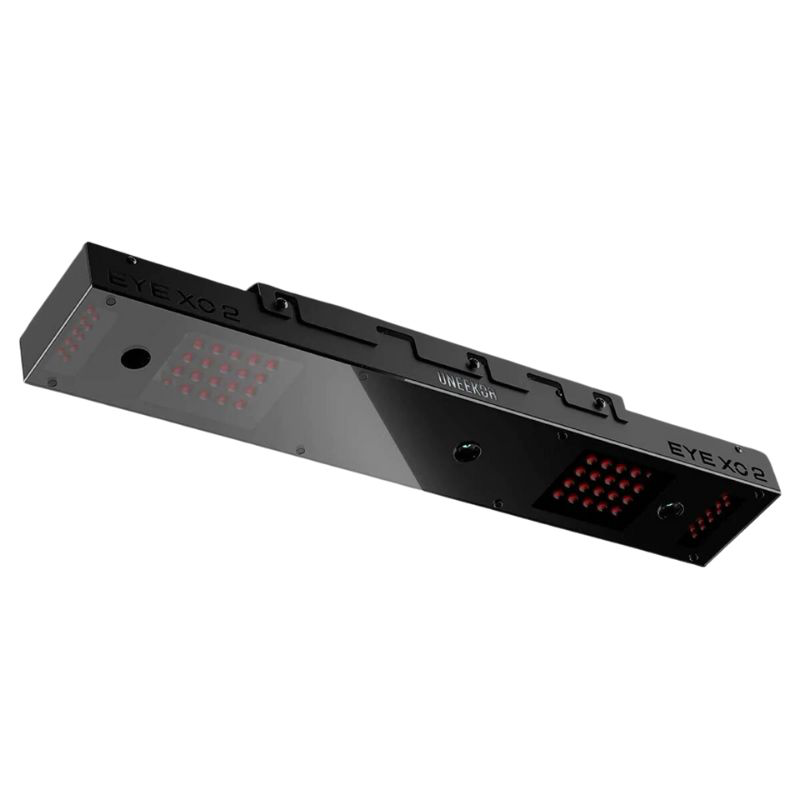

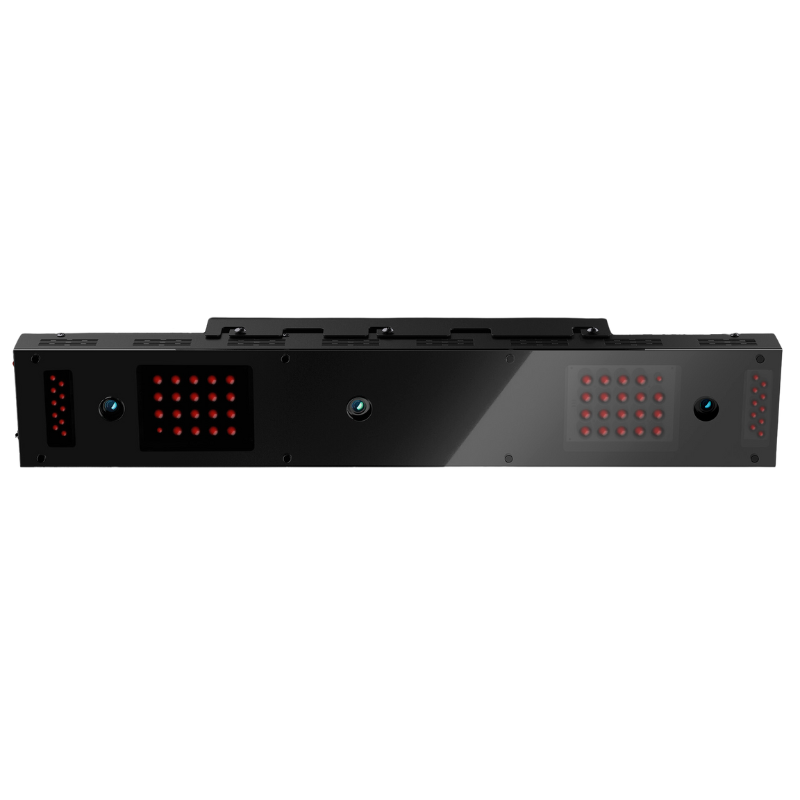

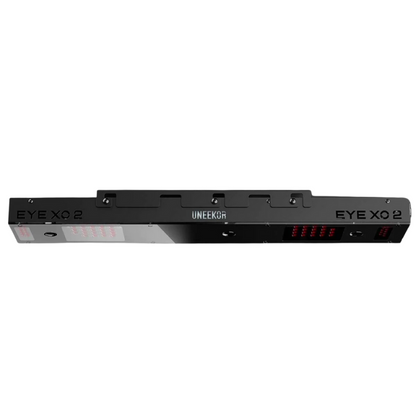

Uneekor EYE XO2
Unit (without bracket): 36.3" L × 5.9" W × 2.5" H
Unit (with bracket): 36.3" L × 5.9" W × 4.3" H
Hitting zone: 28" W × 21" L (fixed)

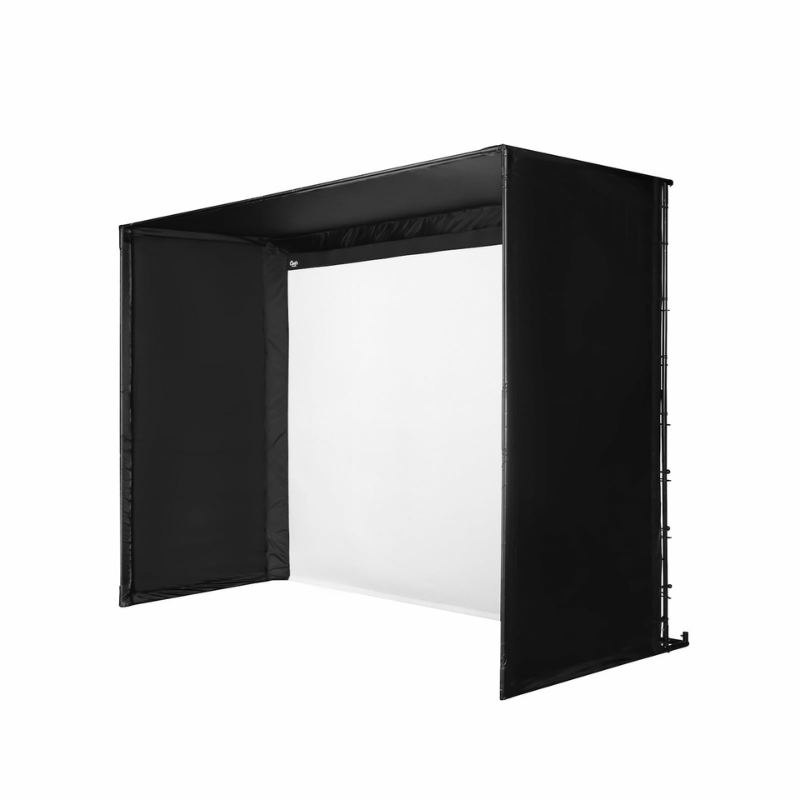

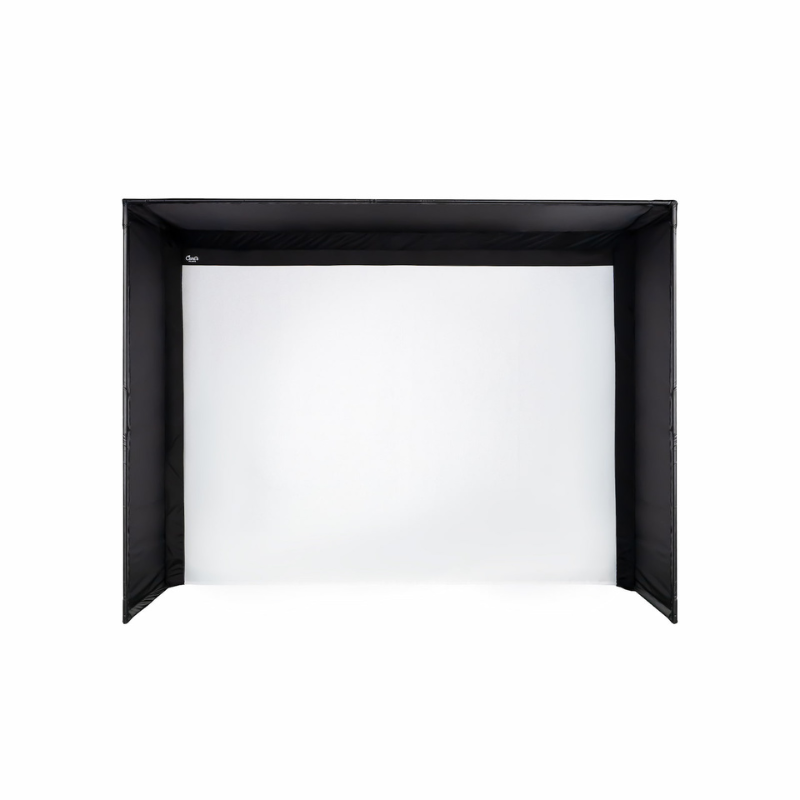

Carl’s Place C-Series DIY Enclosure
Depth: 5' standard (frame footprint extends ~1' behind the screen)
Frame tubing: 1" EMT (OD 1.163" / 27 mm) required unless Pipe Framing Kit is added

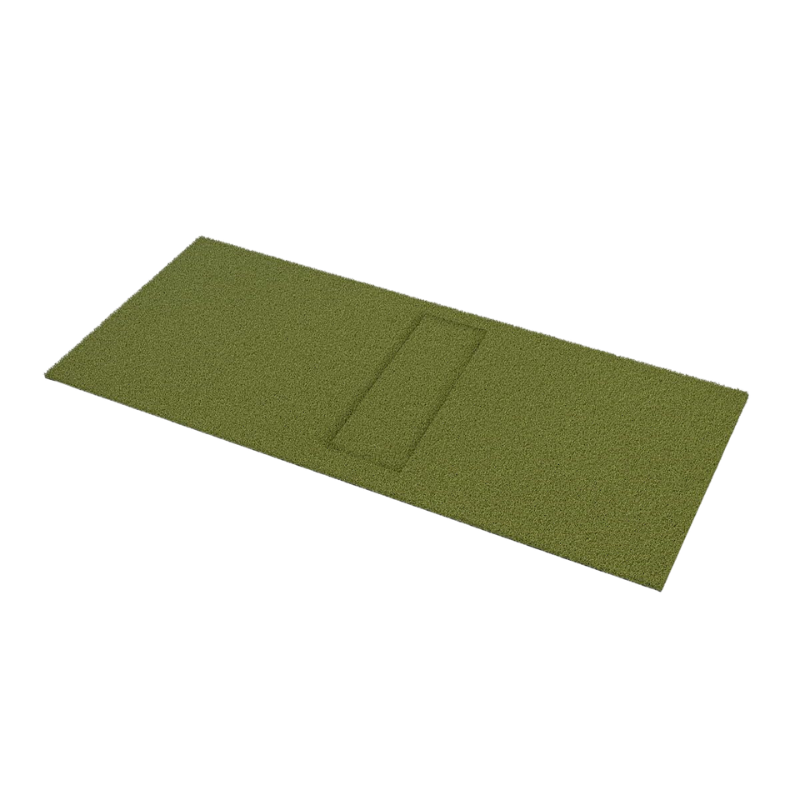

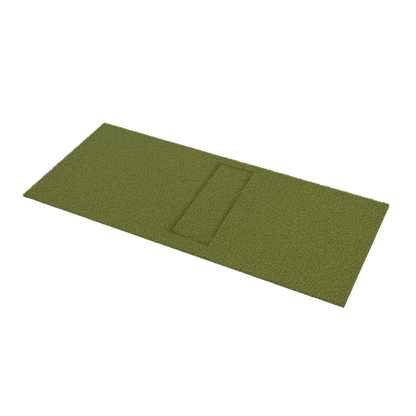

Carl’s Place HotShot Hitting Mat
4'×9' Mat: 4' D × 9' L × 1.75" H
6'×10' Mat: 6' D × 10' L × 1.75" H
Replaceable 12" W × 30" L × 1.75" H hitting insert; real-tee compatible; pre-cut tee receiver holes
Requirements
Space
Safe golfer distance: stand 10–12 ft from the impact screen
Buffer around enclosure: allow ~2–3" clearance on height and 2–3" per side on width
Note: C-Series rear backset fitting adds 8.25" to depth for built-in buffer
Minimum PC Specifications
PC sold separately
Windows 10 (64-bit) Version 1803 or higher
CPU: Intel i5-8400 or AMD 3rd-gen Ryzen (Ryzen 3600X or higher; AMD 2700 not compatible)
RAM: 8 GB (16 GB recommended for Swing Optix)
GPU: NVIDIA GeForce GTX 1060
Integrated Ethernet port required
Internet: 25 Mbps connection required
MacOS not supported
FAQ
What comes in the package? Uneekor EYE XO2 Launch Monitor, 3-Month Ultimate Package Trial, Carl’s Place DIY Enclosure with Premium Impact Screen, choice of HotShot hitting mat, and choice of BenQ projector.
How far should I stand from the screen? Stand 10–12 ft from the impact screen for safety and screen longevity.
How much buffer space do I need? Allow 2–3" clearance on height and 2–3" per side on width. The C-Series backset fitting adds 8.25" to depth for a built-in rear buffer.
Which pipes do I need for the enclosure frame? Use 1" EMT (Electrical Metal Tubing). Add the Pipe Framing Kit or source EMT locally.
How long does enclosure assembly take? About one hour depending on size and helpers. See the assembly manual and video for guidance.
Where should I mount the projector? Placement depends on your screen size and projector throw ratio. Common options are flush or drop mounts. Contact us for exact mounting location based on your enclosure size and projector.
