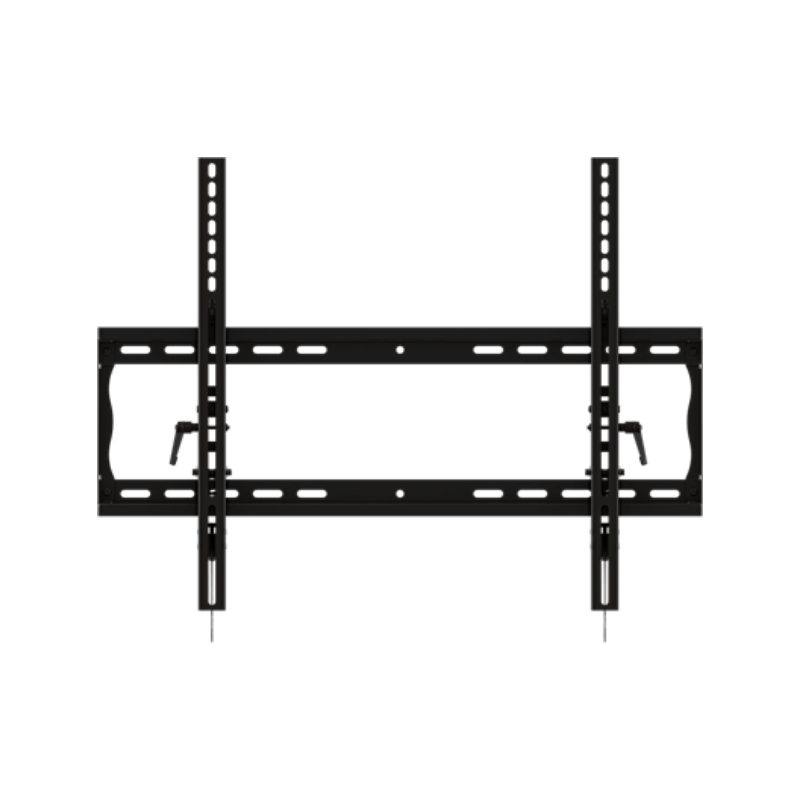

Universal Tilting Wall Mount for 32' to 80' Screens

Description

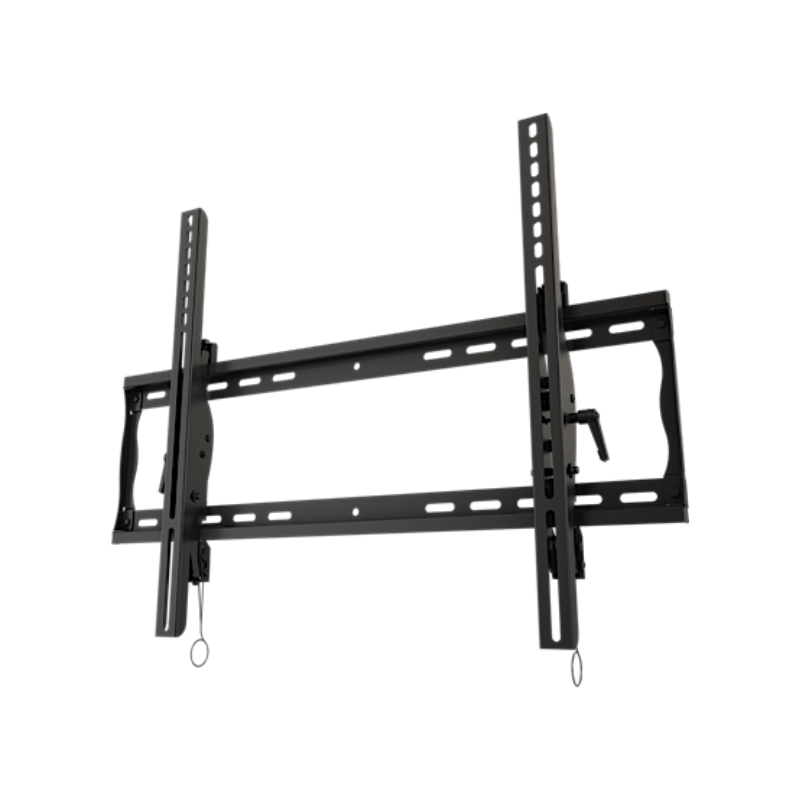

The Universal Tilting Wall Mount for 32" to 80" screens is a sleek, low-profile mounting solution designed for quick installation and optimal viewing comfort. With a universal hole pattern and VESA compatibility, it supports a wide range of flat panel screens. The adjustable tilt mechanism allows up to 15° forward and 5° backward movement, letting users achieve their perfect viewing angle. A post-installation leveling feature ensures precise alignment, even on uneven walls or ceilings.

Its tool-free click-in-place mechanism and pre-assembled securing screw make setup fast and simple. The open wall plate design provides easy cable access, while lateral shift adjustment allows precise screen positioning. Constructed from high-grade cold rolled steel and finished with a scratch-resistant black powder coat, this mount combines durability and modern design for both home and commercial use.

What's Included

• Universal tilting wall mount
• Pre-sorted hardware pack for wood studs and concrete surfaces
• Installation instructions

Features

• Universal Compatibility: Supports a wide range of flat panel displays from 32" to 80" with multiple VESA mounting patterns.
• Adjustable Tilt: Offers +15° to -15° tilt range for flexible viewing angles using a simple locking knob.
• Post-Installation Leveling: Allows for fine-tuning adjustments after installation to ensure a perfectly level display.
• Tool-Free Screen Attachment: Click-in-place design secures the screen without tools, streamlining setup.
• Optional Security Screws: Locking feature enhances safety in public or high-traffic environments.

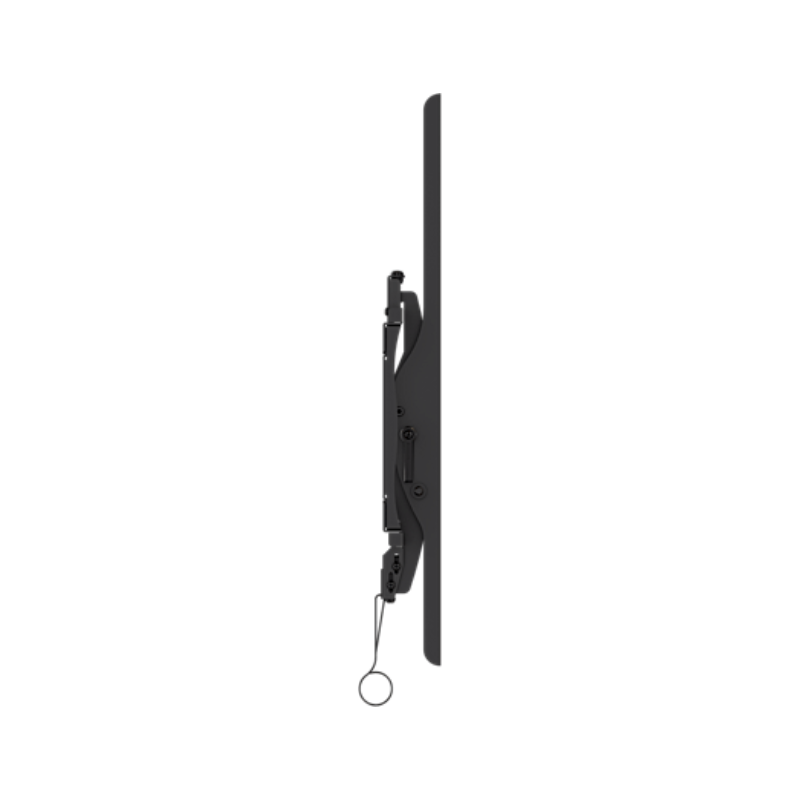

• Low-Profile Design: Keeps the display just 2.2" from the wall for a clean, modern appearance.
• Open Wall Plate: Allows easy cable management and access to wiring behind the screen.
• Lateral Shift Adjustment: Enables precise screen alignment post-installation.
• Durable Construction: Made from high-grade cold rolled steel with a scratch-resistant epoxy powder coat finish.
• Easy Installation: Includes all hardware required for both wood studs and concrete surfaces.

Specifications

• TV Size Range: 32" – 80"
• Weight Capacity: 200 lbs (91 kg)
• Max Mounting Pattern: 660 × 501 mm
• VESA Mounting Patterns: 75 × 75 mm to 600 × 500 mm
• Depth from Wall: 2.2" (55.8 mm)
• Lateral Adjustment: Varies with screen size
• Tilt Range: +15° / -15°
• Mounting Surface: Wood stud, concrete, cinder block, or metal stud (HT4 accessory required)
• Stud Spacing: Dual stud 16", 20", or 24" on center
• Construction: High-grade cold rolled steel
• Finish: Scratch-resistant epoxy powder coat
• Product Weight: 6.8 lbs (3.1 kg)
• Package Dimensions: 28.5" × 10.2" × 3.2"
• Color: Black
• Model: T55A
• Warranty: 10 years

FAQ

Q: What screen sizes does this wall mount support?
A: It supports screens from 32" to 80".

Q: Can this be mounted on metal studs?
A: Yes, with a compatible accessory (HT4) for metal stud installation.

Q: How far does the screen sit from the wall?
A: The screen sits just 2.2 inches from the wall, providing a slim, low-profile setup.

Q: Do I need tools to attach the screen?
A: No, the click-in-place design allows for tool-free screen attachment. Optional security screws are included for added protection.
